Brand:Woodward Item No.:5464-648 Product Origin:USA Product Dimensions:160 x 155 x 20 mm Product Weight:0.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

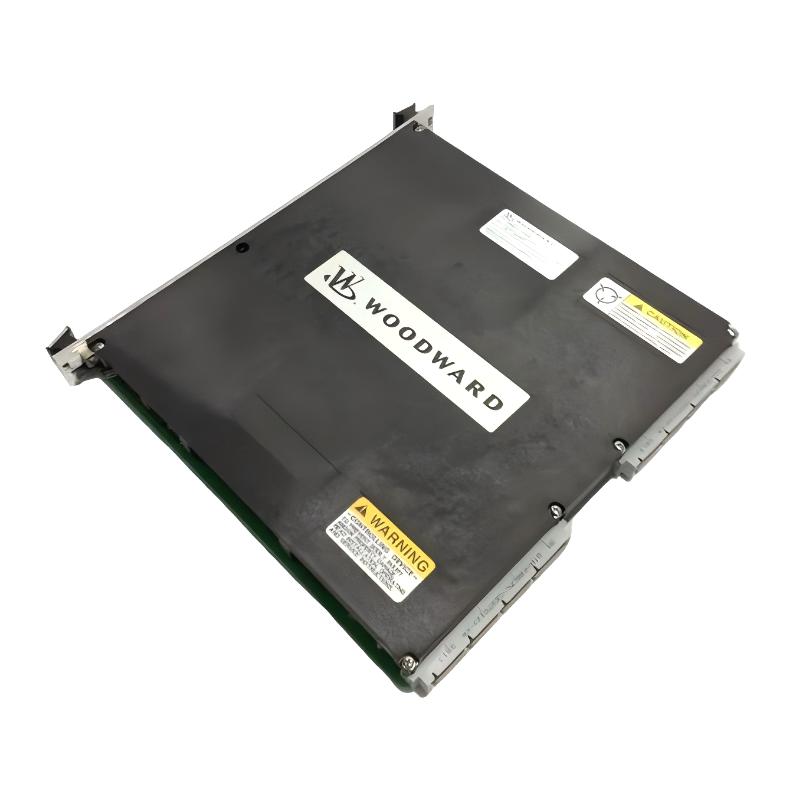

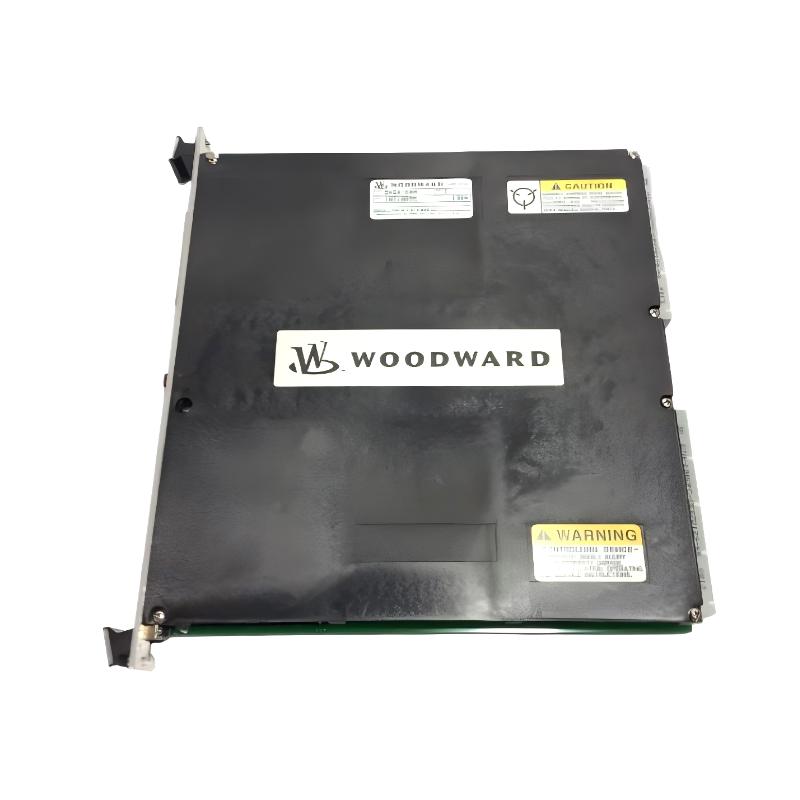

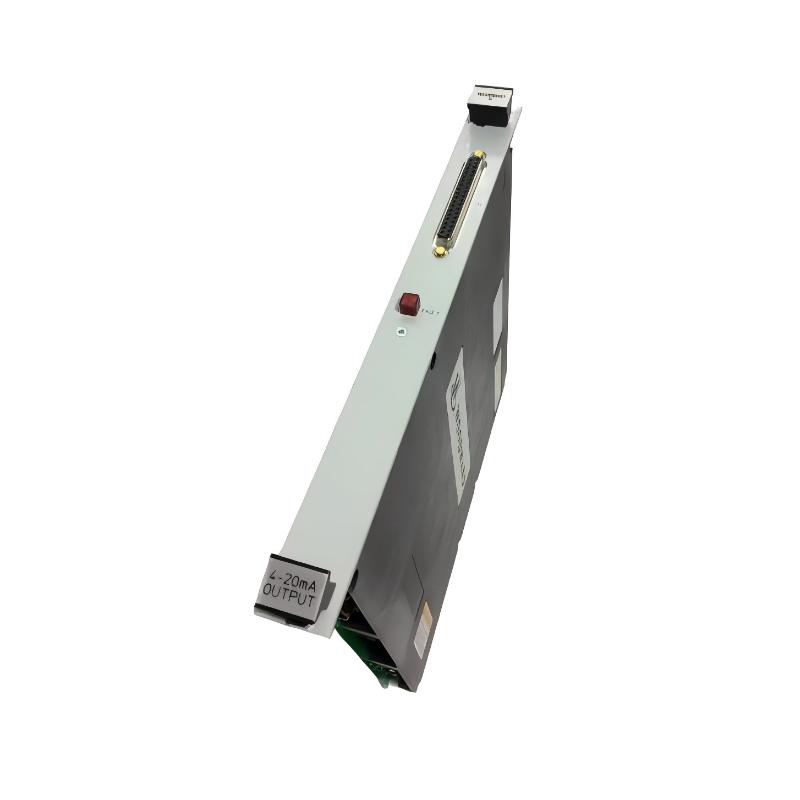

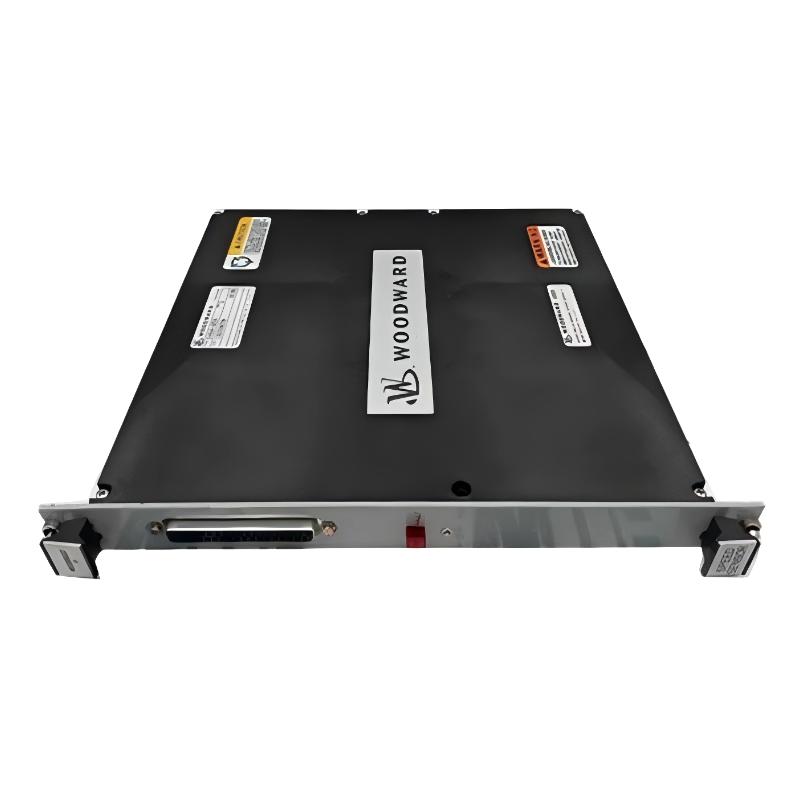

The Woodward 5464-648 Analog 8-channel Output Module is designed to provide precise and reliable multi-channel analog output for industrial automation systems. Fully compatible with Woodward controllers, it ensures high accuracy, stable operation, and seamless integration, making it ideal for both new installations and system upgrades that require multi-channel analog control.
Technical Specifications
Parameter
Specification
Model
Woodward 5464-648
Type
Analog 8-channel Output Module
Dimensions
160 × 155 × 20 mm
Weight
0.91 kg
Function
Multi-channel Analog Output
Protection
Overvoltage / Signal interference protection
Operating Temperature
0°C to 55°C
Communication
Woodward system interface
Mounting
Panel-mounted
Recommended Related Models
• Woodward 5464-647 Analog 8-channel Input Module
• Woodward 5464-640 I/O Interface Module
• Woodward 5464-650 Power Supply Module
• Woodward 5464-660 Digital Output Module
Popular Related Models
• Woodward 5464-649 Analog Output Module
• Woodward 5464-642 I/O Communication Board
• Woodward 5464-655 Power Distribution Module
• Woodward 5464-651 Digital Input Module
Applications
• Industrial control systems requiring multi-channel analog output management
• Integration within Woodward control platforms for process automation and monitoring
• Control panels driving multiple actuators, valves, and field devices simultaneously
• System expansions or retrofits demanding precise analog output distribution
Key Advantages
• 8-Channel Analog Output: Enables simultaneous control of multiple field devices
• Seamless Woodward Integration: Fully compatible with Woodward controllers and automation systems
• High Accuracy Performance: Ensures precise analog signal output for critical processes
• Durable Industrial Design: Engineered for long-term reliability in demanding industrial environments
• Flexible Deployment: Ideal for both new installations and system upgrades
• Enhanced Protection: Safeguards against electrical disturbances, signal interference, and overvoltage
Technical FAQs
1. What is the main function of this module?
It provides 8-channel analog output to control actuators, valves, and other field devices.
2. Can it operate in industrial environments?
Yes, it is designed to maintain reliable operation under standard industrial conditions.
3. How is it integrated into the system?
It connects directly to Woodward controllers for coordinated analog output management.
4. Does it require configuration?
Basic configuration within the Woodward system may be needed to map output channels.
5. Is it hot-swappable?
No, installation or removal should be performed with the system powered off.
6. What types of devices can it control?
It can drive analog-controlled actuators, valves, and other industrial devices.
7. Can it be used for retrofits?
Yes, it is suitable for upgrading or expanding existing Woodward control systems.
8. What maintenance is recommended?
Routine inspection of wiring, connectors, and signal output quality is recommended.
9. What protection features are included?
It includes safeguards against overvoltage, electrical disturbances, and signal interference.
10. Is it compatible with other Woodward modules?
Yes, it integrates seamlessly with Woodward I/O, interface, and power modules.
