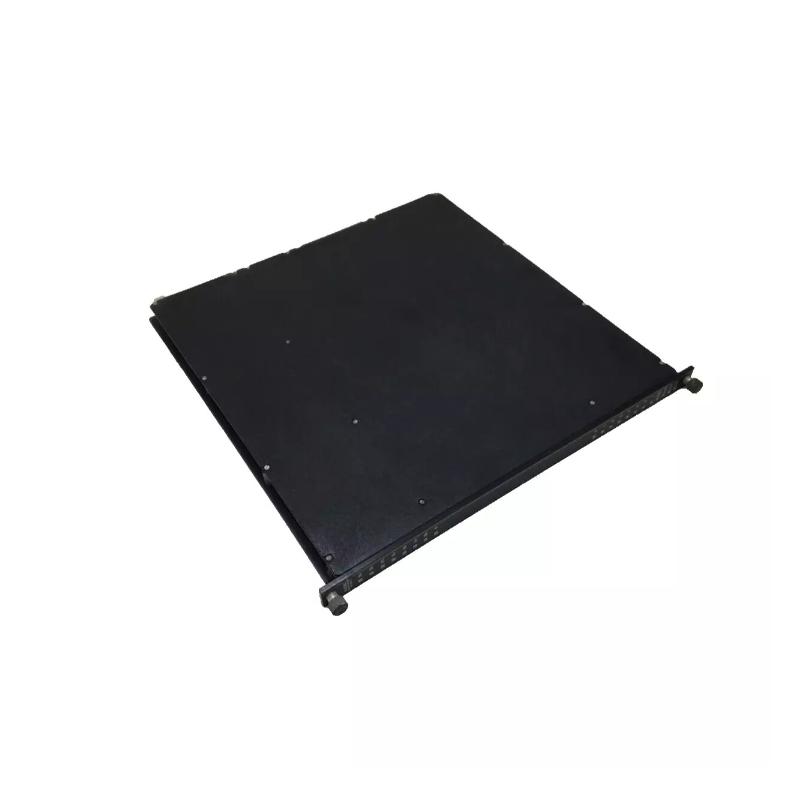

The Triconex 3603E Digital Output Module is a safety-critical I/O component designed to provide reliable discrete output control within Triconex Safety Instrumented Systems (SIS). Operating under a Triple Modular Redundancy (TMR) architecture, it ensures that control signals from the safety controller are translated into accurate and dependable field actions.

Engineered for demanding industrial environments, the 3603E delivers stable output performance, continuous diagnostics, and seamless integration with Triconex controllers and I/O infrastructure. It is widely used in mission-critical applications where system uptime, safety integrity, and fast fault detection are essential.

Technical Specifications

Parameter	Specification
Product Type	Digital Output Module
Model	3603E
System Compatibility	Triconex Safety Instrumented Systems (TMR)
Output Channels	16 commoned digital outputs
Nominal Operating Voltage	24 V DC
Operating Voltage Range	16 – 32 V DC
Maximum Output Current	~0.5 A per channel
Output Voltage Drop	< 3 V typical
Leakage Current	< 2 mA per point
Isolation Between Logic & Field	≥ 1500 V DC
Diagnostics	PASS / FAULT / ACTIVE per output
Hot-Swap Support	Yes (system dependent)
Operating Temperature	–40 °C to +70 °C
Storage Temperature	–40 °C to +85 °C
Mounting	Rack-mounted in Tricon chassis
Dimensions (H × W × D)	Approx. 203 × 127 × 51 mm
Weight	Approx. 0.9 – 1.4 kg

Recommended Related Models

Triconex 3008 Main Processor Module – Core SIS logic controller
Triconex 3703E Digital Input Module – Discrete signal acquisition
Triconex 3721 Analog Input Module – Analog process interface
Triconex 3805E Analog Output Module – Analog actuation control
Triconex 3614E Supervised Digital Output Module – Output supervision variant

Popular Triconex Modules

Triconex 3700A Safety Controller
Triconex 4352B Communication Module
Triconex 4354 Network Interface Module
Triconex 4211 Remote Extender Module
Triconex 9563 Series Termination Panels

Product Applications

The 3603E module is widely used in safety-critical industrial systems requiring reliable digital output actuation:

Emergency Shutdown (ESD) Systems – Executes trip commands to shutdown valves and relays
Fire & Gas (F&G) Protection Systems – Activates alarms and mitigation devices
High Integrity Pressure Protection Systems (HIPPS) – Issues validated output signals for pressure protection
Process Interlock Systems – Controls discrete outputs in chemical and petrochemical plants
Power Generation Safety Systems – Drives protective circuits for turbines and generators

Its stable output performance ensures that safety commands are executed accurately, even in harsh operating environments.

Product Advantages

TMR Fault-Tolerant Architecture
Ensures reliable operation even if one internal channel fails, maintaining system safety integrity.
Accurate and Stable Output Control
Provides deterministic switching for field devices requiring precise digital actuation.
Advanced Diagnostics
Real-time PASS/FAULT/ACTIVE indicators enable fast identification of faults and reduce downtime.
High Electrical Isolation
Protects control systems from electrical noise and enhances operational safety.
Hot-Swap Capability
Allows module replacement without shutting down the system in supported configurations.
Industrial-Grade Design
Built to withstand extreme temperatures and harsh process environments.
Flexible System Integration
Compatible with a wide range of Triconex modules, enabling scalable SIS architectures.

Technical FAQs

What is the function of the Triconex 3603E?
It provides 16 digital output channels to control field devices in a safety system.
What voltage does it operate on?
Nominal 24 V DC with a range of 16–32 V DC.
How many outputs are available?
The module includes 16 commoned digital outputs.
Does it include diagnostics?
Yes, it provides PASS, FAULT, and ACTIVE indicators per channel.
Is it suitable for safety applications?
Yes, it is designed for use in TMR-based SIS architectures.
Can it be replaced while the system is running?
Yes, hot-swap is supported in many configurations.
What is the operating temperature range?
–40 °C to +70 °C.
What devices can it drive?
Relays, solenoids, alarms, and other 24 V DC actuators.
How is the module installed?
It is installed in a Triconex chassis rack slot.
Which industries use this module?
Oil & gas, petrochemical, power generation, and industrial automation.
