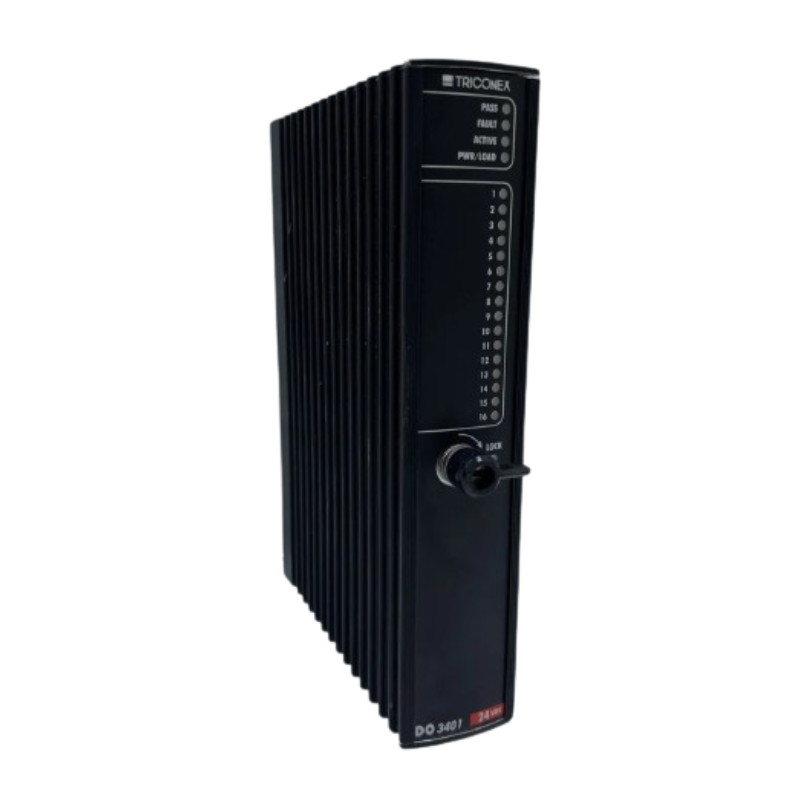

DO 3401 DO 3401 DO 3401 DO 3401 The Triconex DO 3401 Digital Output Module is a high-performance safety I/O component designed for Triconex Safety Instrumented Systems (SIS). Built to operate within a Triple Modular Redundancy (TMR) architecture, it ensures that safety logic decisions are translated into reliable and validated field actuation.

With 16 commoned output points, strong current-driving capability, and advanced diagnostics, the DO 3401 is widely used in mission-critical applications requiring dependable control of solenoids, relays, and shutdown devices. Its integrated fault detection and self-limiting protection features enhance both safety and long-term system stability.

Technical Specifications

Parameter	Specification
Product Type	Digital Output Module
Model	DO 3401
System Compatibility	Triconex SIS (TMR Architecture)
Output Channels	16 commoned outputs
Nominal Output Voltage	24 V DC
Operating Voltage Range	15 – 30 V DC
Maximum Output Voltage	33 V DC
Output Current	Up to 4.8 A (self-limiting), ~3.0 A typical
Degraded Mode Current	~0.7 – 1.5 A
Leakage Current	Low (OFF state limited)
Diagnostics	Loss of field power, output short detection
Loopback Thresholds	0–5 V OFF / 6–14 V transition / 15–30 V ON
Architecture	Triple Modular Redundancy (TMR)
Hot-Swap Support	Yes
Operating Temperature	–40 °C to +70 °C
Mounting	Rack-mounted in Tricon chassis
Dimensions (H × W × D)	Approx. 203 × 127 × 51 mm
Weight	Approx. 1.0 kg

Key parameters such as voltage range, 16 outputs, and high current capacity are standard for this module class.

Recommended Related Models

Triconex 3008 Main Processor Module – Core SIS logic controller
Triconex 3505E Digital Input Module – High-integrity input acquisition
Triconex 3703E Digital Input Module – Discrete signal interface
Triconex 3805E Analog Output Module – Analog actuation control
Triconex 3624 / 3625C1 Output Modules – Supervised output variants

Popular Triconex Modules

Triconex 3700A Safety Controller
Triconex 4352B Communication Module
Triconex 4354 Network Interface Module
Triconex 4211 Remote Extender Module
Triconex 9563 Series Termination Panels

Product Applications

The DO 3401 module is widely used in industries requiring high-integrity digital actuation:

Emergency Shutdown (ESD) Systems – Drives shutdown valves and trip relays
Fire & Gas (F&G) Systems – Activates alarms and mitigation devices
High Integrity Pressure Protection Systems (HIPPS) – Executes safety trip outputs
Process Interlock Systems – Controls critical field devices in petrochemical plants
Power Generation Safety Controls – Operates protective circuits for turbines and generators

Its ability to deliver stable high-current outputs ensures reliable control of field actuators under demanding conditions.

Product Advantages

High Output Current Capability
Supports up to ~4.8 A per channel (self-limiting), enabling control of heavy-duty field devices.
TMR Fault-Tolerant Architecture
Ensures continuous and validated output operation even with internal channel faults.
Advanced Field Diagnostics
Detects output shorts, loss of field power, and abnormal conditions in real time.
Self-Limiting Protection
Prevents damage from overcurrent conditions, enhancing system longevity.
Hot-Swap Capability
Supports maintenance without shutting down the SIS in many configurations.
Industrial-Grade Durability
Designed for continuous operation in harsh environments with high reliability.

Technical FAQs

What is the main function of the DO 3401 module?
It provides 16 digital outputs to control field devices in a Triconex SIS.
What voltage does it operate on?
Nominal 24 V DC with a 15–30 V DC operating range.
How many output channels are available?
16 commoned digital outputs.
What is the maximum output current?
Up to 4.8 A per channel (self-limiting).
Does it include diagnostics?
Yes, including loss of field power and short-circuit detection.
Is it suitable for safety-critical systems?
Yes, it is designed for TMR-based SIS applications.
Can it be replaced while running?
Yes, hot-swap is supported in many configurations.
What devices can it drive?
Solenoids, relays, alarms, and other 24 V DC actuators.
What industries use this module?
Oil & gas, petrochemical, power generation, and industrial automation.
What is the key advantage of this module?
High-current output combined with fault-tolerant diagnostics ensures reliable actuation in safety-critical systems.
