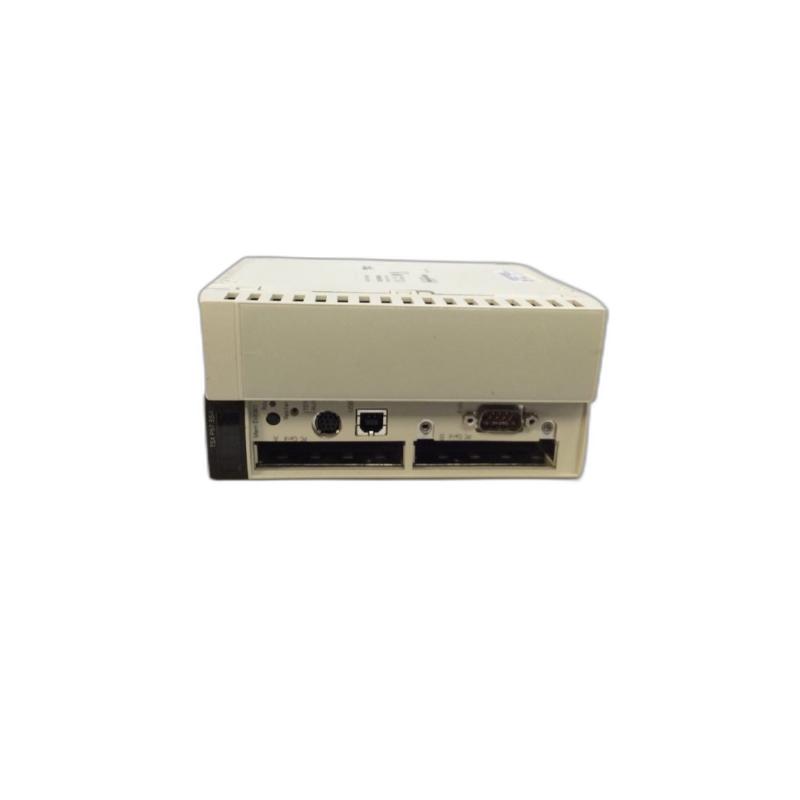

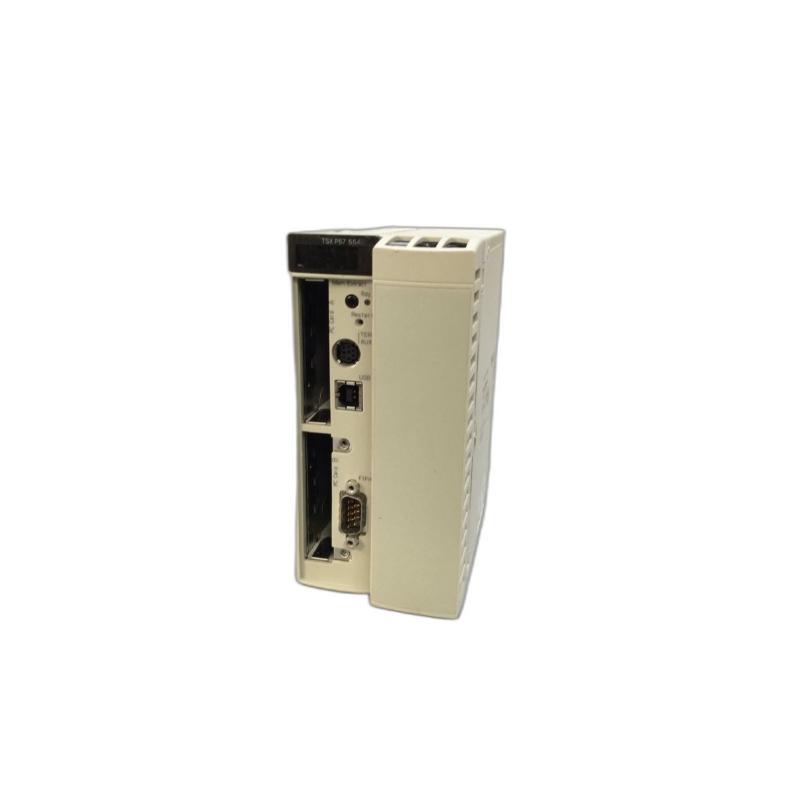

The Schneider Electric TSXP57554M Unity Processor Module is a powerful CPU designed for the Modicon Premium automation platform, delivering high-speed control, large I/O capacity, and flexible communication for complex industrial systems.
Built for demanding applications such as material handling, packaging, and process automation, this processor provides real-time execution, scalable architecture, and robust networking capabilities. It supports large multi-rack configurations and integrates seamlessly with Schneider Electric’s Unity Pro engineering environment, making it a reliable core for advanced PLC systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Unity Processor / PLC CPU Module |
| Model | TSXP57554M |
| Platform | Modicon Premium Automation System |
| Processor Type | High-performance Unity CPU |
| Power Supply | 5 V DC, 1680 mA |
| Rack Capacity | 8 racks (12 slots) / 16 racks (4/6/8 slots) |
| Max Discrete I/O | Up to 2040 I/O points |
| Max Analog I/O | Up to 512 I/O points |
| Communication Ports | USB, RS485, Fipio (up to 127 devices) |
| Programming Software | Unity Pro |
| Program Memory | Up to 7 MB (with PCMCIA) |
| Data Memory | Up to 1 MB |
| Additional Storage | PCMCIA card (up to 16 MB) |
| Execution Speed | ~0.0375 µs Boolean instructions |
| Tasks Supported | Fast, master, auxiliary, and event tasks |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Protection Rating | IP20 |
| Dimensions (H × W × D) | Approx. 180 × 260 × 95 mm |
| Weight | Approx. 0.6 – 1.0 kg |
Core capabilities such as high I/O capacity, multi-rack support, and fast processing are standard for this CPU class.
