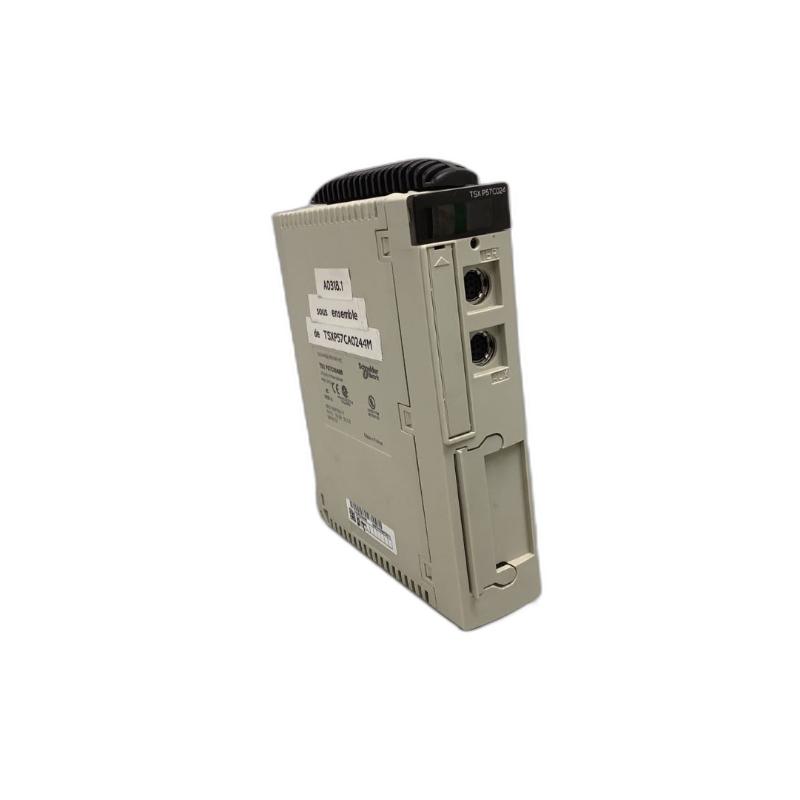

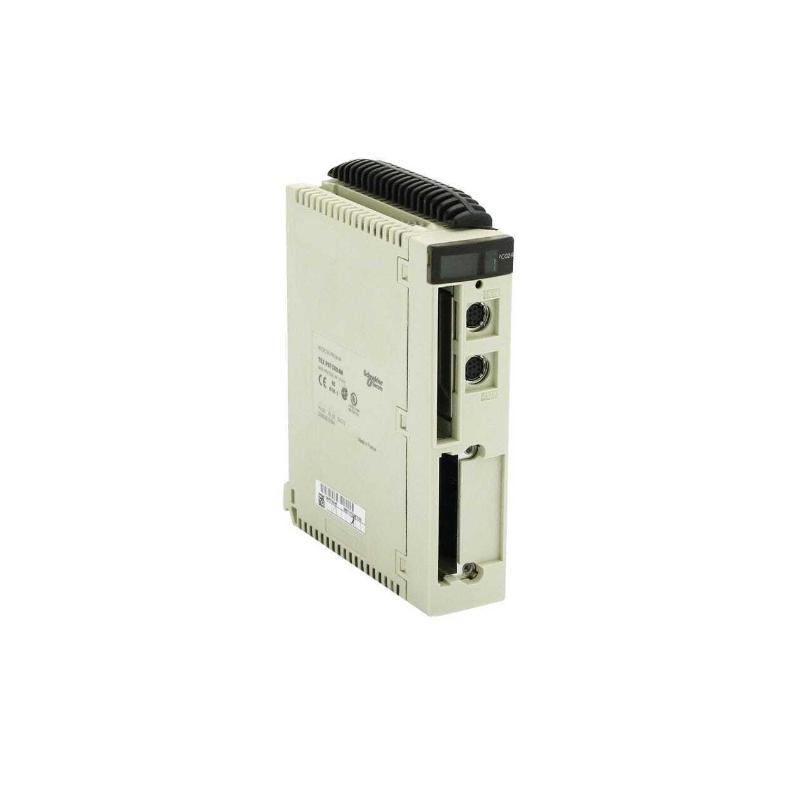

The Schneider Electric TSXP57C024M Unity Processor Base Module is a core CPU platform component for the Modicon Premium PLC series, designed to deliver reliable and scalable industrial automation performance. Acting as the processing base for Unity processors, it enables high-speed execution, flexible system expansion, and stable communication across complex control architectures.
Engineered for demanding environments, this module supports large I/O systems and multi-rack configurations, making it ideal for industries requiring continuous operation, precise control, and long-term reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Processor Base Module / PLC CPU Platform |
| Model | TSXP57C024M |
| Platform | Modicon Premium (Unity) |
| Function | Processor base / CPU support |
| System Architecture | Modular multi-rack PLC system |
| Compatibility | Unity processors (TSX Premium series) |
| Communication Support | Integrated backplane, external comm modules supported |
| Power Supply | Backplane powered |
| Installation | Rack-mounted in TSX Premium chassis |
| Operating Temperature | 0 °C to +60 °C (typical PLC environment) |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions (H × W × D) | 165 × 120 × 35 mm |
| Weight | Approx. 0.34 – 0.50 kg |
Example physical data: approx. 3.5 × 12 × 16.5 cm and ~0.34 kg.
