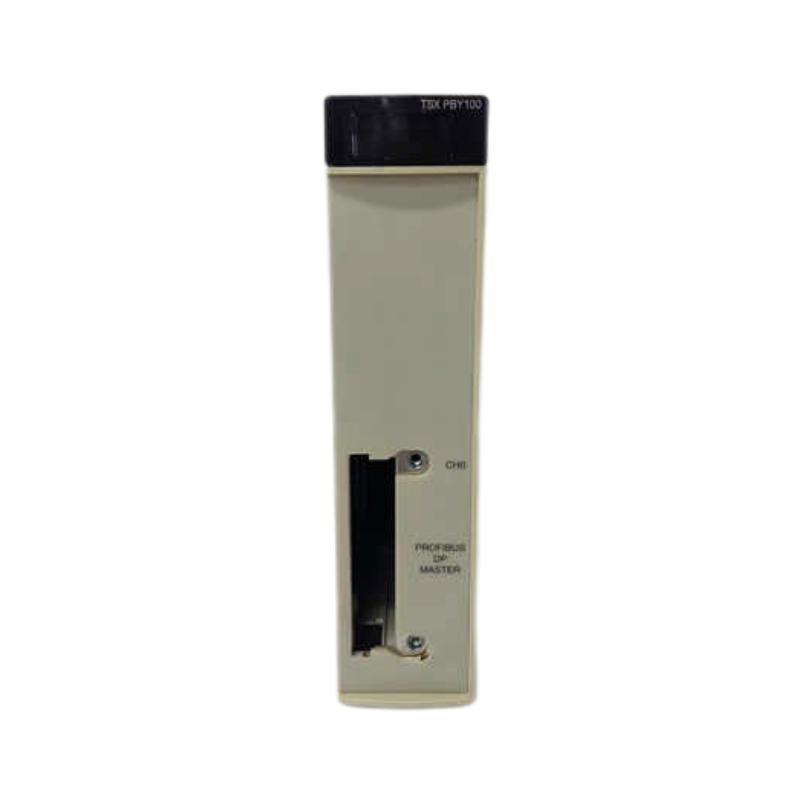

The Schneider Electric TSXPBY100 PROFIBUS DP Module Kit is a high-performance communication solution designed for the Modicon Premium PLC platform. It enables fast and deterministic data exchange between the PLC and distributed field devices using the PROFIBUS DP V0 protocol, making it ideal for complex industrial automation systems.
Delivered as a complete kit—including a PCMCIA communication card, host module, integrated cable, and bus connector—the TSXPBY100 simplifies installation while providing robust and scalable networking capabilities. It is widely used in manufacturing, process control, and distributed automation systems where reliable field communication is critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | PROFIBUS DP Communication Module Kit |
| Model | TSXPBY100 |
| Platform | Modicon Premium / Atrium PLC |
| Communication Protocol | PROFIBUS DP V0 |
| Interface Type | RS485 (twisted shielded pair) |
| Transmission Mode | NRZ encoding |
| Max Transmission Speed | Up to 12 Mbit/s |
| Max Distance | 100 m (without repeater), up to 1200 m (low speed) |
| Max Devices Supported | Up to 126 slave devices |
| I/O Capacity | Up to 3872 inputs / 3872 outputs |
| Power Consumption | ~400 mA at 5 V DC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –25 °C to +70 °C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | Approx. 245 × 245 × 275 mm (package) |
| Weight | Approx. 0.87 – 1.3 kg |
Key communication parameters such as 12 Mbit/s speed and support for up to 126 devices are standard for this PROFIBUS DP module class.
