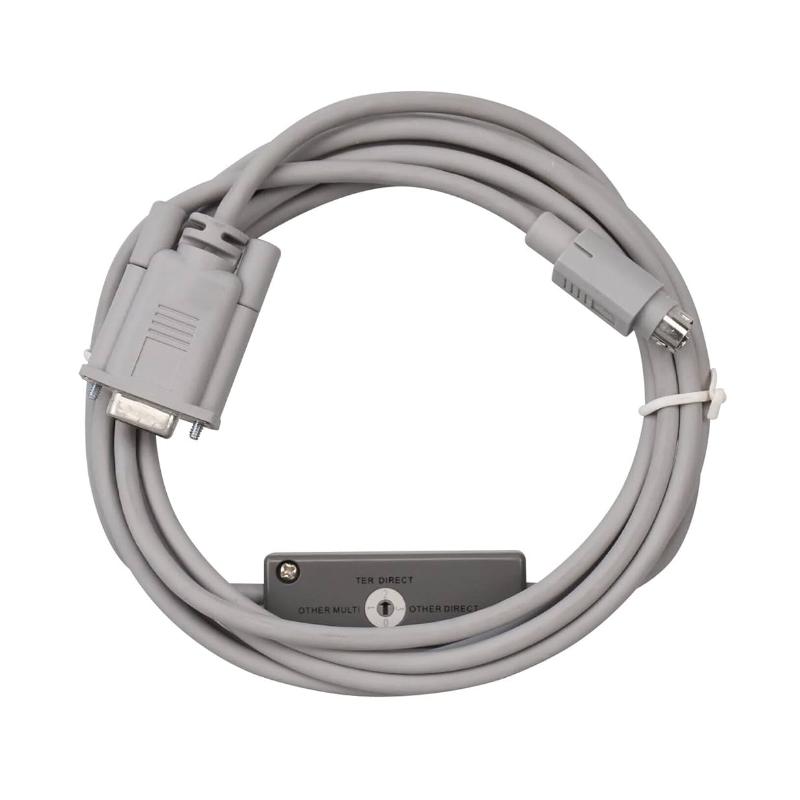

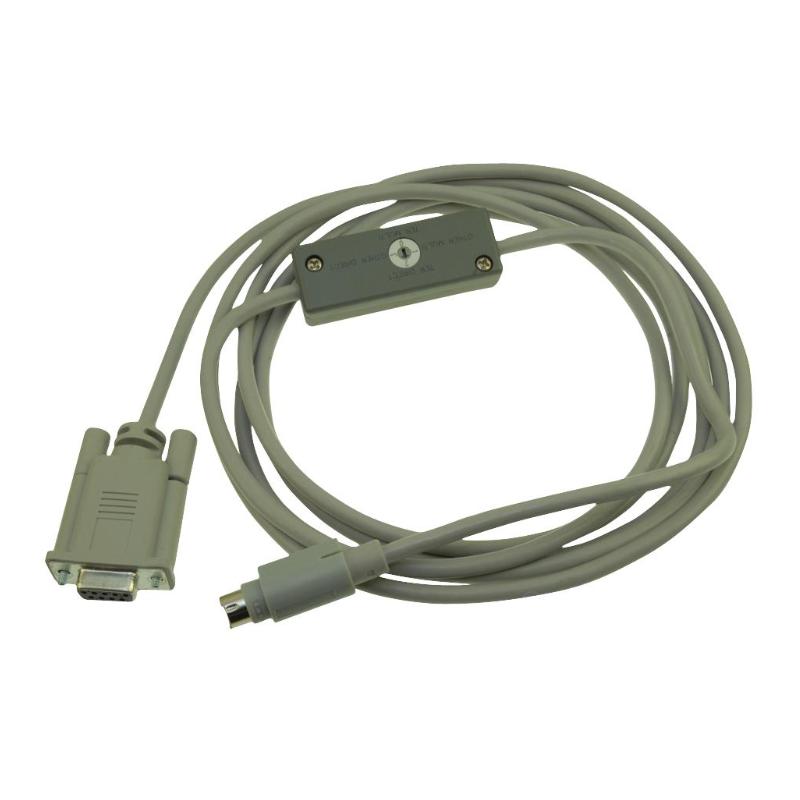

The Schneider Electric TSXPCX1031-C Communication Cable is a professional-grade RS232 programming and communication cable designed to establish reliable connections between PLC systems and programming devices such as laptops or HMIs.
As part of the Modicon Premium, TSX Micro, and Twido ecosystem, this cable enables data transfer, configuration, and diagnostics using standard industrial protocols like Modbus and Uni-Telway. With its robust connectors and industrial-ready design, it is an essential accessory for engineers working with Schneider Electric PLC platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | RS232 Communication / Programming Cable |
| Model | TSXPCX1031-C |
| Cable Length | 2.5 meters |
| Communication Interface | RS232 / RS485 |
| Supported Protocols | Modbus, Uni-Telway, Character Mode |
| Connector Type (PLC side) | Mini-DIN 8-pin (female) |
| Connector Type (PC side) | SUB-D 9-pin (female) |
| Additional Adapter | 9-pin to 25-pin adapter included |
| Compatibility | Modicon Premium, TSX Micro, Twido, Magelis XBT/GTO |
| Data Transfer Mode | Serial communication |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions (H × W × D) | Cable form (2.5 m length) |
| Weight | Approx. 0.17 – 0.23 kg |
The cable supports both RS232 and RS485 physical layers, ensuring flexible integration across different automation systems.
