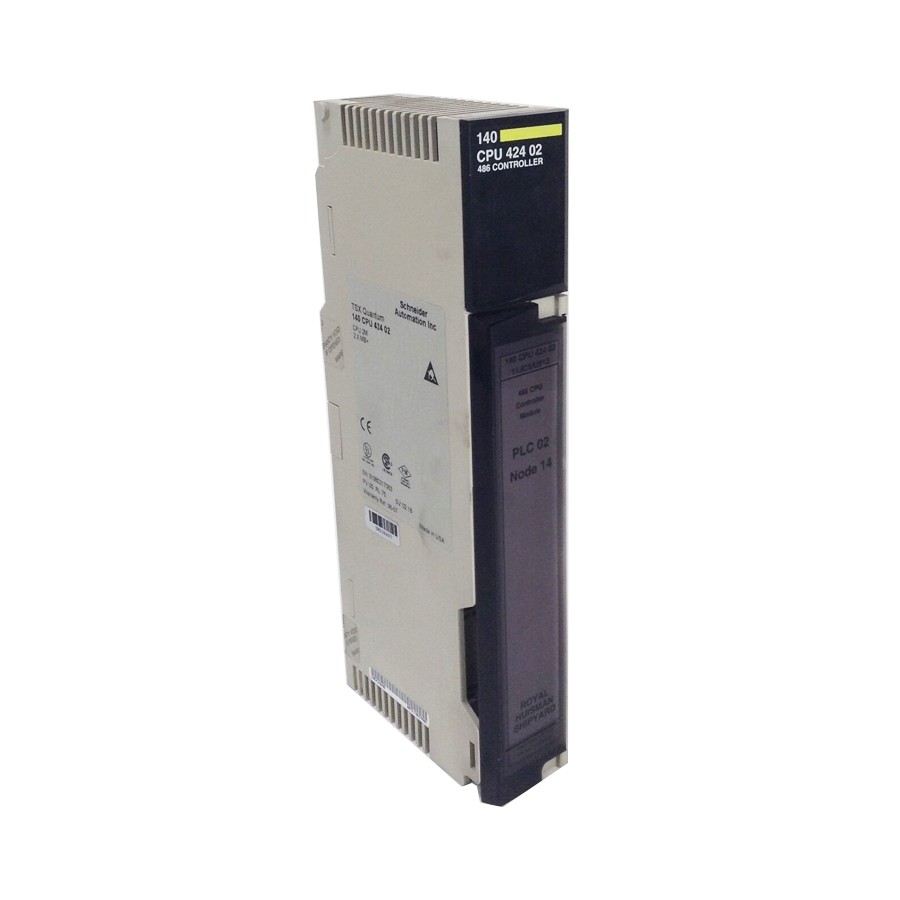

140CPU42402 140CPU42402C

The Schneider Electric 140CPU42402 is a robust CPU processor module from the Modicon Quantum series, engineered to support high‑performance industrial automation and control tasks. Built for environments that require reliable execution and flexible communication, this CPU delivers a balance of memory, networking capabilities, and expandability suited for distributed systems and legacy installations. Its design ensures durability, scalability, and broad compatibility with Quantum I/O components.

Technical Specifications

Parameter	Specification
Product Type	PLC CPU Processor Module
Platform	Modicon Quantum
Processing Type	2M CPU
User Logic Capacity	64K Words
Discrete Memory	64K Words
Register Capacity	57K
Extended Register Capacity	96K
Communication Interfaces	1 × Modbus Serial (RS‑232), 2 × Modbus Plus Network Ports
Maximum Remote Drops	Up to 31
Networks per System	Up to 3 Distributed I/O Networks
Max I/O Words per Network	500 In / 500 Out
I/O Words per Node	30 In / 30 Out
Battery Backup	3V Lithium
Watchdog Timer	250 ms (software adjustable)
Operating Temperature	0 °C to 60 °C
Storage Temperature	-40 °C to 85 °C
Power Consumption	Approx. 5W
Bus Current Required	Approx. 400 mA
Dimensions (H×W×D)	102 × 254 × 51 mm (4.0″ × 10.0″ × 2.0″)
Weight	Approx. 0.6 kg (1 lb 4 oz)

This configuration makes the 140CPU42402 an effective processor for applications with distributed I/O, networked systems, and moderate logic sizes.
