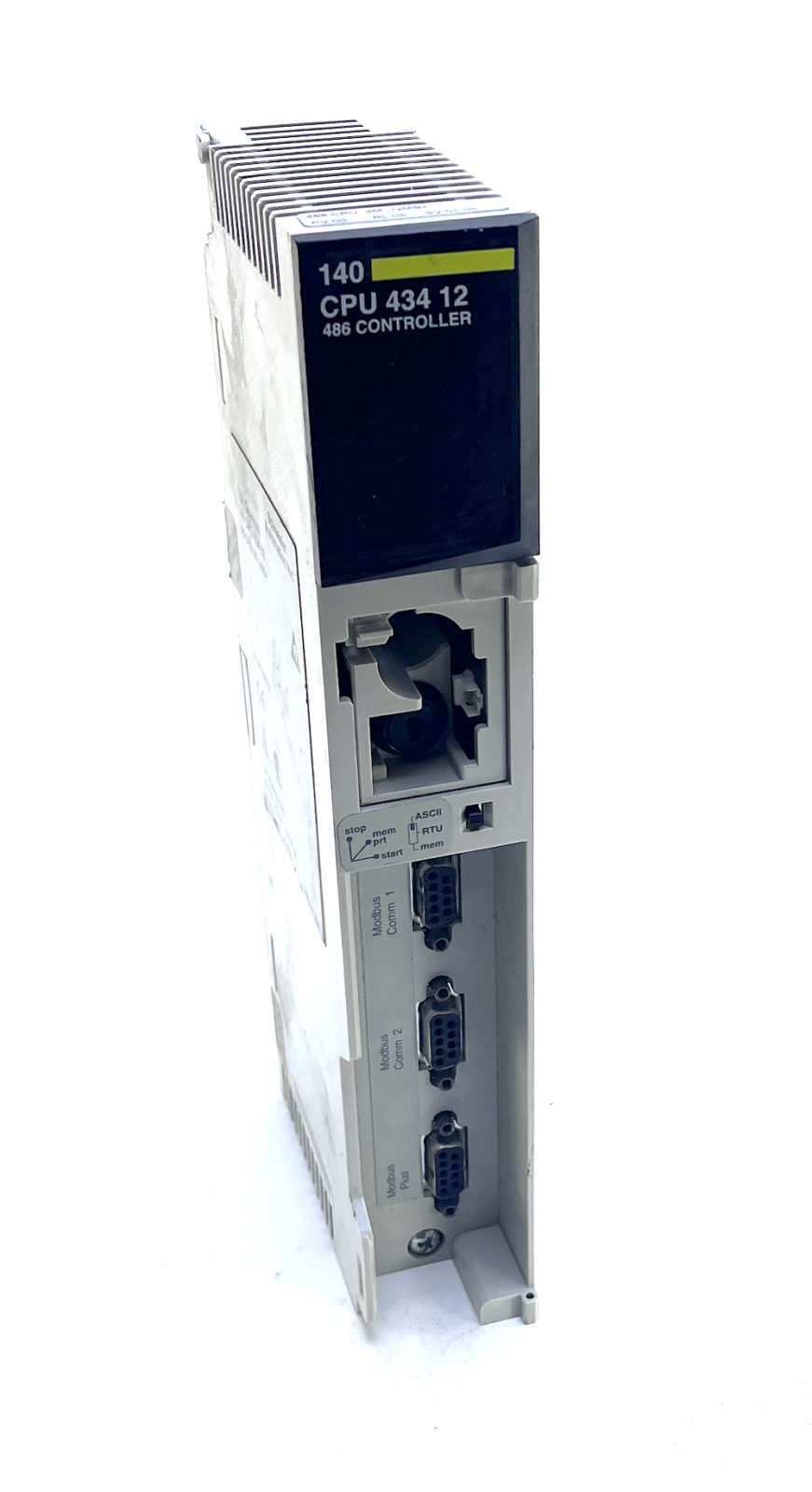

140CPU43412C

The Schneider Electric 140CPU43412C is a powerful CPU processor module from the Modicon Quantum PLC series, engineered for industrial automation systems that demand robust processing power, versatile communication, and reliable performance. Built around a proven 486 controller, this CPU supports distributed I/O architectures and seamless integration with legacy infrastructures. It’s an ideal choice for manufacturing, process control, and large‑scale automation environments where uptime and execution consistency are essential.

Technical Specifications

Parameter	Specification
Product Type	PLC CPU Processor Module
Series / Platform	Modicon Quantum
Processor	486 Controller CPU with Conformal Coating
Internal Memory	2 MB Additional + ~486 kB RAM
Built‑in Flash	Yes
Execution Speed	~0.3 µs per Boolean instruction
Communication Ports	2 × Modbus Plus, 1 × Modbus Serial
Protocol Support	Modbus RTU, Modbus Plus, Uni‑Telway
Watchdog Timer	Integrated Multi‑Stage Monitoring
Power Supply	5 V DC via Backplane
Operating Temperature	0 °C to 60 °C
Storage Temperature	−40 °C to 85 °C
Environmental Protection	IP20 Industrial Rating
Shock / Vibration Tolerance	25 g Shock, 2 g Vibration
Dimensions (H×W×D)	Approx. 250 × 110 × 50 mm (standard Quantum CPU form‑factor)
Weight	Approx. 0.50 kg (500 g)

The 140CPU43412C is designed with industrial durability in mind, providing reliable performance in environments with temperature variation and vibration.

Recommended Related Models

140NOE77101 Ethernet Communication Module
140CRA93200 Remote I/O Adapter
140XBP01600 Quantum Backplane Rack
140CPS11410C AC Power Supply Module
140CPU11303C Compact CPU Processor Module

Popular Schneider Electric PLC Modules

BMXP342020 Unified Processor Module
BMXAMI0810 Analog Input Module
BMXDDI1602 Digital Input Module
BMXDDO1602 Digital Output Module
BMXNOC0401 Ethernet Communication Module

Application Scenarios

The 140CPU43412C is widely applied across automation systems where dependable processing and network flexibility matter most:

Manufacturing and assembly line automation
Material handling and packaging systems
Water/wastewater treatment control
Chemical and energy process automation
Distributed I/O and remote monitoring architectures

Key Advantages

Robust Processing: With a 486 controller and a generous memory configuration, the module handles extensive logic programs effectively, even in distributed systems.
Flexible Networking: Dual Modbus Plus and an additional serial port support flexible communication with remote I/O networks and legacy devices.
Industrial Durability: Conformal coating and environmental tolerance make it suitable for harsh industrial conditions.
Broad I/O Capability: Supports local and distributed I/O expansion, facilitating scalable control architectures.
Program Integrity: Built‑in flash memory preserves critical logic and configuration during power cycles, enhancing system resilience.

Technical FAQs

What type of processor is used in the 140CPU43412C?
It uses an industrial 486 controller CPU.
How much memory does the module have?
It includes 2 MB additional memory with approximately 486 kB RAM.
Which communication protocols are supported?
Modbus Plus, Modbus Serial, and Uni‑Telway are supported.
How many network connections are available?
It has 2 Modbus Plus ports and 1 Modbus serial port.
What are the operating temperature limits?
The CPU module operates from 0 °C to 60 °C.
Does it include environmental protection?
Yes, it has an IP20 rating suitable for industrial use.
What are the approximate dimensions?
Approximately 250 mm (H) × 110 mm (W) × 50 mm (D).
What is the module weight?
Around 0.50 kg (500 g).
Is additional software needed for configuration?
Programming tools like Concept or ProWORX 32 are typically used for configuration and logic development.
What makes this CPU suitable for distributed systems?
Its multi‑port communication and sizable memory support complex I/O networks and extended control architectures.
