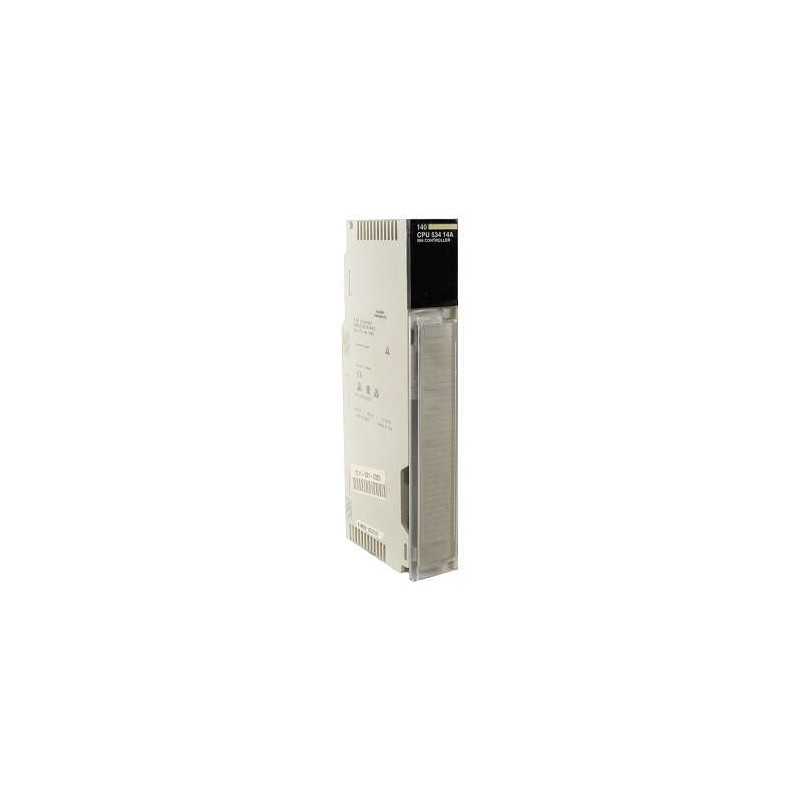

140CPU53414AC

The Schneider Electric 140CPU53414AC is a high‑memory CPU processor module designed for the Modicon Quantum programmable logic controller (PLC) platform. It delivers a balance of large onboard memory, robust processing capability, and industrial‑grade durability, making it well‑suited for complex automation tasks in material handling, packaging, and textile machinery applications. Although part of a legacy product line, it remains a reliable choice for maintaining or upgrading existing Quantum systems requiring strong logic performance and network communication.

Technical Specifications

Parameter	Specification
Product Type	CPU Processor Module for PLC
Platform	Modicon Quantum
Internal Memory	~4 MB SRAM (program and data)
Processor	High‑speed core (enhanced for medium‑to‑large logic)
Communication Ports	Modbus Plus (MB+) high‑speed network
Maximum I/O Capacity	Typically supports extensive I/O configurations
Power Supply	Backplane‑supplied 24 V DC
Environmental Protection	Conformal coating (AC suffix denotes coated version)
Operating Temperature	0 °C to 60 °C
Storage Temperature	–40 °C to 85 °C
Mounting	Standard Modicon Quantum backplane
Dimensions (H×W×D)	Approx. 250 × 110 × 50 mm (standard Quantum CPU form‑factor)
Weight	Approx. 0.50 kg (500 g)

This configuration ensures robust memory, efficient execution, and compatibility with distributed architectures across legacy Quantum systems.

Recommended Related Models

140NOE77101 Ethernet Communication Module
140CRA93200 Remote I/O Adapter
140XBP01600 Quantum Backplane Rack
140CPS11410C AC Power Supply Module
140CPU11303C CPU with Moderate Memory

Popular Schneider Electric PLC Modules

BMXP342020 Processor Module
BMXAMI0810 Analog Input Module
BMXDDI1602 Digital Input Module
BMXDDO1602 Digital Output Module
BMXNOC0401 Ethernet Communication Module

Application Scenarios

The 140CPU53414AC is commonly used in industrial scenarios where reliable logic execution and strong network performance are crucial:

Manufacturing automation and assembly line control
Material handling systems with distributed I/O networks
Packaging machine sequencing and control
Textile machinery automation
Existing Quantum PLC system upgrades or replacements

Key Advantages

Large Memory Capacity: With approximately 4 MB of SRAM, this CPU supports larger program sizes and data handling for complex automation tasks.
Reliable Networking: Modbus Plus (MB+) support enables efficient communication across distributed I/O and networked devices.
Industrial Durability: Conformal coating (AC suffix) enhances protection against humidity and contamination in industrial environments.
Backward Compatibility: Designed for seamless integration with legacy Quantum systems and existing backplane infrastructure.
Stable Operation: Proven architecture ensures dependable performance for critical industrial processes.

Technical FAQs

What is the memory capacity of the 140CPU53414AC?
It includes around 4 MB of SRAM for program and data storage.
Which communication protocol does it support?
It uses Modbus Plus (MB+) network communication for distributed control.
What does the “AC” suffix indicate?
“AC” denotes a conformal‑coated version designed for enhanced industrial protection.
What is the typical operating temperature range?
It operates from 0 °C to 60 °C, with storage from –40 °C to 85 °C.
How is power supplied to this CPU?
Power is supplied through the Quantum backplane (24 V DC).
Is this module still manufactured by Schneider Electric?
The Quantum series, including this model, is discontinued but widely supported through aftermarket and refurbish suppliers.
What type of systems is this CPU used in?
It’s typically used in legacy Modicon Quantum PLC installations, especially where complex logic and distributed I/O are involved.
Can it handle large I/O configurations?
Yes, its memory and network support make it suitable for systems with extensive I/O requirements.
How is this CPU mounted?
It mounts on a Modicon Quantum backplane rack.
What are the CPU module dimensions?
Approximately 250 mm × 110 mm × 50 mm with a weight around 0.50 kg.
