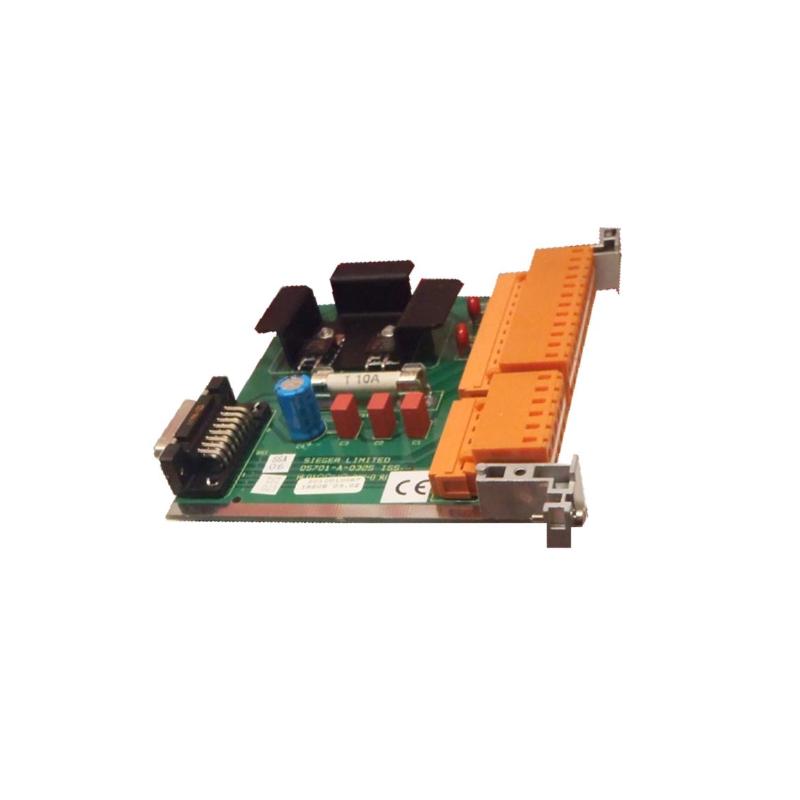

Honeywell 05701-A-0325 Pressure Transducer

Introduction

The Honeywell 05701-A-0325 is a robust and reliable Pressure Transducer designed to provide high-precision pressure measurements for a wide range of industrial applications. Whether for monitoring critical systems or controlling industrial processes, the 05701-A-0325 ensures consistent performance and exceptional accuracy in demanding environments. It is widely used in industries such as oil & gas, chemical processing, HVAC systems, and automotive applications where the accurate monitoring of pressure is vital to system integrity and efficiency.

This pressure transducer is engineered for high stability and long-term durability, even in extreme conditions, providing real-time data for automation and control systems. The 05701-A-0325 integrates seamlessly with a variety of measurement and control setups, offering output signals in analog or digital formats to meet the needs of diverse industrial processes. Its compact design and rugged build make it suitable for both high-pressure and harsh environmental conditions.

Technical Specifications

Specification	Details
Model	05701-A-0325
Module Type	Pressure Transducer
Measuring Range	0 to 5000 psi (depending on configuration)
Output Signal	4-20 mA, 0-5 V, 0-10 V (depending on configuration)
Accuracy	±0.25% of Full Scale
Size (W x H x D)	35 x 50 x 20 mm
Weight	0.3 kg
Operating Temperature	-40°C to +85°C
Pressure Type	Gage, Absolute, Differential
Protection Features	Overpressure protection, Reverse polarity protection
Certifications	CE, RoHS, UL

Recommended Related Models

Model	Module Type	Key Feature
Honeywell 05701-A-0283	Pressure Transducer	Ideal for high-accuracy pressure measurement
Honeywell 05701-A-0301	Pressure Transducer	Designed for robust industrial applications
Honeywell 132501	Differential Pressure Transducer	Suitable for differential pressure measurements

Popular Honeywell Models

Model	Module Type	Key Feature
Honeywell 134220-02	Pressure Transducer	Compact and high-performance solution for industrial pressure measurement
Honeywell 120165	Temperature Transducer	Ideal for precise temperature monitoring in industrial systems
Honeywell 06701	Pressure Transducer	Suitable for extreme high-temperature and high-pressure environments

Applications

Industrial Automation: The 05701-A-0325 is commonly used in industrial control systems, where high-precision pressure measurement is needed to monitor pressurized systems, pumps, and valves.
Oil & Gas: Perfect for downhole pressure monitoring in oil fields, the 05701-A-0325 offers superior reliability and accuracy in harsh environments, helping ensure safe operations.
HVAC Systems: The transducer is used in HVAC systems to measure and control pressure within refrigerant circuits, helping optimize energy efficiency and operational stability.
Automotive: In automotive applications, the 05701-A-0325 is used to measure engine pressure, brake fluid pressure, and other critical parameters that ensure vehicle safety and performance.
Manufacturing: In manufacturing automation, the module is utilized to measure hydraulic pressure in systems like pressing, forming, and clamping machinery.

Advantages

High Accuracy: Offering ±0.25% full-scale accuracy, the 05701-A-0325 delivers precise and reliable pressure data for process monitoring and control.
Wide Measuring Range: The 05701-A-0325 can accommodate a wide range of pressures up to 5000 psi, providing flexibility for a variety of industrial applications.
Rugged Design: With features like overpressure protection and reverse polarity protection, this transducer is built to withstand extreme environments, including high pressure and harsh temperatures.
Versatile Output Options: The module offers multiple output signals, including 4-20 mA, 0-5 V, and 0-10 V, making it adaptable for a wide range of control systems.
Compact and Lightweight: At just 0.3 kg and compact dimensions of 35 x 50 x 20 mm, it is well-suited for installations where space is limited, while still providing exceptional performance.

Technical FAQs

What is the measuring range of the Honeywell 05701-A-0325?
The 05701-A-0325 has a measuring range of 0 to 5000 psi, depending on the configuration.
What output signals are available from the 05701-A-0325?
The module supports 4-20 mA, 0-5 V, and 0-10 V output signals.
What is the accuracy of the Honeywell 05701-A-0325?
The accuracy of this pressure transducer is ±0.25% of full scale.
What is the size of the Honeywell 05701-A-0325?
The module measures 35 x 50 x 20 mm.
What is the weight of the Honeywell 05701-A-0325?
The transducer weighs 0.3 kg.
What is the operating temperature range for the Honeywell 05701-A-0325?
The 05701-A-0325 operates within a temperature range of -40°C to +85°C.
What protection features does the 05701-A-0325 include?
It includes overpressure protection and reverse polarity protection, ensuring durability in challenging environments.
Can the 05701-A-0325 be used in hazardous environments?
Yes, it is designed for use in harsh industrial environments, including oil & gas, chemical processing, and automotive applications.
What certifications does the 05701-A-0325 have?
The module is CE, RoHS, and UL certified.
What industries benefit from the Honeywell 05701-A-0325?
Industries such as oil & gas, chemical processing, automotive, HVAC, and manufacturing can benefit from the precision and reliability of this pressure transducer.
