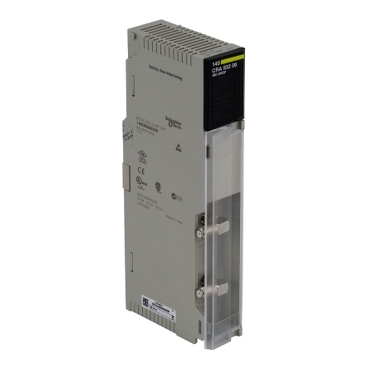

The Schneider Electric 140CRA93200C is a Remote I/O (RIO) Drop Adaptor Module designed for Modicon Quantum PLC systems. It provides dual redundant coaxial connections, ensuring reliable communication between the Quantum PLC and remote I/O modules. This module is ideal for distributed control networks where uptime, scalability, and robust signal integrity are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | RIO Drop Adaptor Module |
| Platform | Modicon Quantum PLC |
| Connection Interfaces | 2 × Female coaxial F-type connectors, redundant cable |
| Cable Type | 75 Ω coaxial |
| Transmission Rate | 1.544 Mbit/s |
| Max Remote I/O Modules Supported | Up to 27 modules per branch |
| Dynamic Range | 35 dB |
| Isolation Voltage | 500 V DC (center conductor to ground) |
| Bus Current Requirement | Approx. 750 mA |
| Power Dissipation | Approx. 3.8 W |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Mounting | Standard Quantum module form factor |
| Dimensions (H × W × D) | 155 × 110 × 45 mm |
| Weight | 0.5 kg |
Recommended Related Models
- 140CRA93100C – Single-Connector RIO Drop Adaptor
- 140CRP93200C – RIO Head-End Adaptor Module
- 140NOE77101 – Ethernet Communication Module
- 140CPU31110C – Quantum CPU Processor Module
- 140XBP01600 – Quantum Backplane Rack
