140DVO85300C

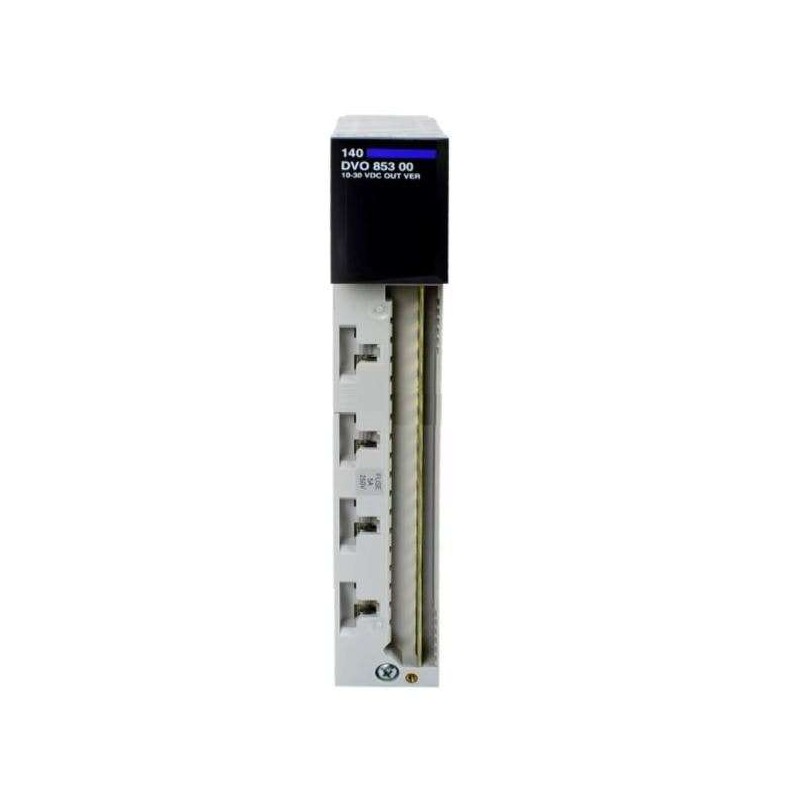

The Schneider Electric 140DVO85300C is a 32‑point DC discrete output module engineered for the Modicon Quantum industrial automation family. This output module delivers reliable control signals to DC loads using negative (sink) logic, making it ideal for high‑density control tasks where multiple actuators, relays, or devices must be switched in a coordinated automation system.

Technical Specifications

High Output Density: 32 discrete channels in a single module support dense control configurations.
Robust Output Protection: Integrated short‑circuit and overvoltage protection with group fuses improves reliability.
Fast Response Times: Typical switching response under 2 ms enables dynamic control performance.
Clear Diagnostics: Individual output status and fault indication LEDs simplify troubleshooting.
Standard Form Factor: Module fits standard Quantum backplane racks, facilitating upgrades and replacements.&nbsp;

Specification	Details
Product Type	DC Discrete Output Module
Platform	Modicon Quantum PLC
Number of Outputs	32 channels (4 groups of 8)
Output Logic	Negative logic (sink)
Output Voltage Range	10 … 30 V DC
Addressing Requirement	2 output words, 2 input words
Absolute Maximum Output	50 V for 1 s (decaying pulse)
Max Load Current	≤ 0.5 A per point; ≤ 4 A per group; ≤ 16 A per module
Voltage Drop	~0.4 V @ 0.5 A
Surge Current	≤ 2.5 A for 1 ms
Response Time	~1–2 ms transitions
Protection	Short‑circuit & overvoltage protection; internal output group fuses
Fault Indication	LEDs for external fault, status transitions, and field power loss
Bus Current Requirement	~500 mA
Operating Temperature	0 °C to 60 °C
Storage Temperature	–40 °C to 85 °C
LED Indicators	32 output status LEDs, communication & fault LEDs
Mounting	Standard Quantum backplane module
Dimensions (H × W × D)	~155 × 110 × 45 mm
Weight	~0.30 kg
Discontinued / Service Only	Discontinued; service support planned through 2029
