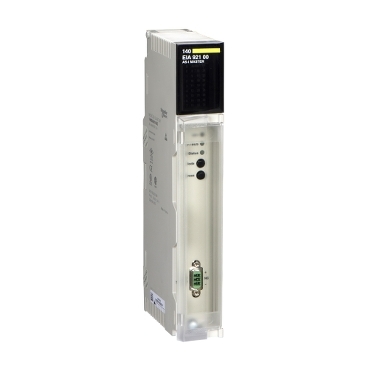

The Schneider Electric 140EIA92100 is a dedicated ASCII communication module for the Modicon Quantum PLC platform, designed to enable seamless serial communication with external devices such as printers, barcode readers, HMIs, and legacy instrumentation.
Built for flexibility and reliability, this module allows industrial systems to exchange ASCII-based data efficiently, making it an essential component in applications where standardized serial communication is required. Its straightforward configuration and stable performance make it especially valuable in mixed or legacy automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | ASCII Communication Module |
| Platform | Modicon Quantum |
| Communication Type | Serial ASCII Communication |
| Ports | 1 × RS-232 / RS-485 (configurable) |
| Transmission Modes | Half-duplex / Full-duplex |
| Baud Rate | Up to 19.2 kbps |
| Data Format | ASCII |
| Parity Options | None, Even, Odd |
| Stop Bits | 1 or 2 |
| Flow Control | Software / Hardware (configurable) |
| Addressing Requirement | 2 input words / 2 output words |
| Diagnostics | Communication status and error indicators |
| Bus Current Requirement | Approx. 400 mA |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Mounting | Standard Quantum backplane |
| Dimensions (H × W × D) | 155 × 110 × 45 mm |
| Weight | Approx. 0.30 kg |
