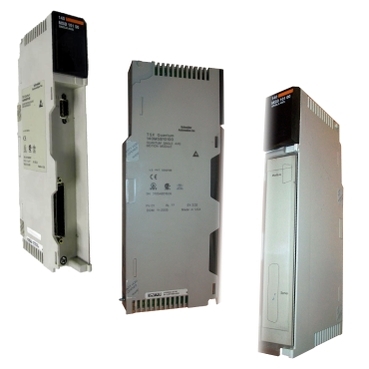

140MSB10100

The Schneider Electric 140MSB10100 is a single-axis motion control module designed for the Modicon Quantum automation platform. Built for precision and flexibility, it enables accurate control of linear, rotary, or continuous motion systems, making it an essential component for high-performance industrial automation.

With support for both one real axis and one remote axis, this module allows synchronized motion control, ensuring smooth operation in complex machinery and coordinated production systems. It is widely used in applications requiring high accuracy, repeatability, and real-time control.

Technical Specifications

Parameter	Specification
Product Type	Single-Axis Motion Control Module
Platform	Modicon Quantum
Axis Control	1 real axis + 1 remote axis
Motion Types	Absolute, relative, homing, continuous
Positioning Range	Up to 4,294,967,296 points
Position Loop Update	1 ms
Speed Loop Update	0.5 ms
Max Accuracy	Up to 0.5 arc/min (encoder dependent)
Encoder Type	Differential encoder (5 V ±20%)
Encoder Frequency	Up to 500 kHz (x1) / 2000 kHz (x4)
Analog Output	±10…24 V (11-bit + sign)
Discrete Outputs	Drive enable + auxiliary outputs (24 V)
Communication	Modbus RS-232 (300–9600 bit/s)
Bus Current Requirement	~1000 mA @ 5 V DC
External Power Requirement	~500 mA @ 24 V DC
Operating Temperature	0 °C to 60 °C
Storage Temperature	–40 °C to 85 °C
Dimensions (H × W × D)	155 × 110 × 45 mm (standard Quantum module size)
Weight	Approx. 0.45 – 0.51 kg

Recommended Related Models

140MMB10400 – Multi-Axis Motion Controller Module
140MSC10100 – Advanced motion control module
140CPU31110C – Quantum CPU Processor Module
140NOE77101 – Ethernet Communication Module
140XBP01600 – Quantum Backplane Rack

Popular Schneider Electric Modules

140AVI03000C – Analog Input Module
140ADO02000C – Analog Output Module
140DDI35300C – Digital Input Module
140DDO35300C – Digital Output Module
140DAO84010C – AC Output Module

Applications

The 140MSB10100 is ideal for industrial systems requiring precise motion control and synchronization:

Robotics and automated assembly systems
Packaging and high-speed production lines
CNC and positioning systems
Material handling and conveyor systems
Textile and precision manufacturing equipment

Advantages

Accurate Motion Control: High-resolution positioning with fast update rates ensures precise system performance.

Flexible Motion Profiles: Supports multiple motion types including absolute, relative, and continuous movement.

Axis Synchronization: Enables coordinated control between master and slave axes.

High-Speed Feedback: Supports encoder frequencies up to 2 MHz for responsive control.

Seamless Integration: Fully compatible with Modicon Quantum architecture for easy deployment.

Technical FAQs

What is the main function of the 140MSB10100?
It provides precise single-axis motion control with synchronization capability.
How many axes can it control?
One real axis and one remote axis.
What types of motion does it support?
Absolute, relative, homing, and continuous motion.
What is the positioning resolution?
Up to 4.29 billion positioning points.
What communication protocol is used?
Modbus serial via RS-232 interface.
What are the module dimensions?
155 × 110 × 45 mm.
What is the weight of the module?
Approximately 0.45–0.51 kg.
Is it suitable for high-speed applications?
Yes, with encoder support up to 2000 kHz and fast update loops.
Is this module still in production?
It has been discontinued but remains available in legacy markets.
What makes this module valuable?
Its combination of precision motion control, synchronization, and flexibility makes it ideal for complex automation systems.
