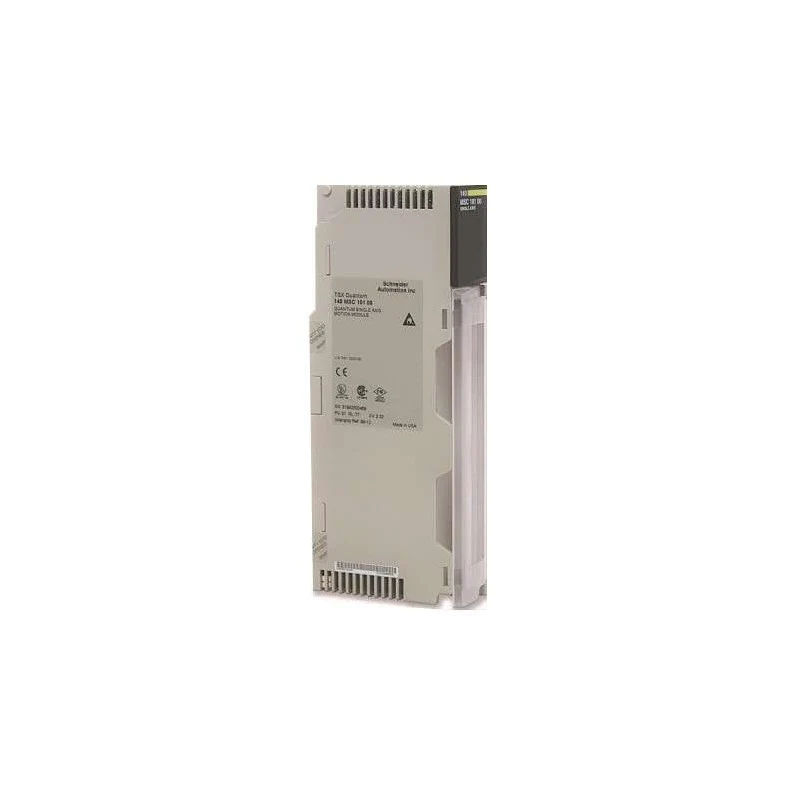

140MSC10100

The Schneider Electric 140MSC10100 is an advanced motion control module designed for the Modicon Quantum PLC platform, delivering precise positioning, high-speed processing, and flexible motion profiles for demanding industrial automation applications.

Positioned above standard single-axis modules, this controller provides enhanced motion algorithms and faster loop updates, making it ideal for systems requiring tight synchronization, rapid response, and high positional accuracy. It is widely used in industries where motion precision directly impacts productivity and product quality.

Technical Specifications

Parameter	Specification
Product Type	Advanced Motion Control Module
Platform	Modicon Quantum
Axis Control	1 high-performance axis (expandable via system integration)
Motion Types	Absolute, relative, homing, continuous, interpolation
Positioning Resolution	Up to 32-bit (4,294,967,296 positions)
Position Loop Update	~1 ms
Speed Loop Update	~0.5 ms
Encoder Type	Differential encoder (5 V ±20%)
Encoder Frequency	Up to 500 kHz (x1) / 2000 kHz (x4)
Analog Output	±10 V control signal (11-bit + sign)
Discrete Outputs	Drive enable + programmable outputs
Communication	Modbus RS-232 serial interface
Bus Current Requirement	~1000 mA @ 5 V DC
External Power Requirement	~500 mA @ 24 V DC
Operating Temperature	0 °C to 60 °C
Storage Temperature	–40 °C to 85 °C
Dimensions (H × W × D)	155 × 110 × 45 mm (standard Quantum module size)
Weight	Approx. 0.50 kg

Recommended Related Models

140MSB10100 – Single-Axis Motion Control Module
140MMB10400 – Multi-Axis Motion Controller
140CPU31110C – Quantum CPU Processor Module
140NOE77101 – Ethernet Communication Module
140XBP01600 – Quantum Backplane Rack

Popular Schneider Electric Modules

140AVI03000C – Analog Input Module
140ADO02000C – Analog Output Module
140DDI35300C – Digital Input Module
140DDO35300C – Digital Output Module
140DAO84010C – AC Output Module

Applications

The 140MSC10100 is ideal for advanced automation systems requiring high-precision motion control:

CNC and precision positioning systems
Robotics and automated assembly lines
High-speed packaging and labeling machines
Material handling and conveyor synchronization
Textile and precision manufacturing equipment

Advantages

High-Precision Positioning: 32-bit resolution ensures extremely accurate motion control.

Fast Response Performance: Millisecond-level loop updates enable real-time control.

Flexible Motion Profiles: Supports multiple motion types for versatile applications.

Enhanced Synchronization: Designed for coordinated motion with other system modules.

Seamless Integration: Fully compatible with Modicon Quantum architecture.

Technical FAQs

What is the main function of the 140MSC10100?
It provides advanced motion control with high precision and fast response.
How many axes does it support?
Primarily one high-performance axis, expandable via system integration.
What motion types are supported?
Absolute, relative, homing, continuous, and interpolation.
What is the positioning resolution?
Up to 32-bit resolution (over 4 billion positions).
What type of encoder is supported?
Differential encoders with up to 2 MHz frequency.
What are the module dimensions?
155 × 110 × 45 mm.
What is the weight?
Approximately 0.50 kg.
What communication interface is used?
Modbus RS-232 serial communication.
Is this module suitable for high-speed applications?
Yes, it is designed for fast response and precision control.
What makes it different from 140MSB10100?
It offers enhanced processing and more advanced motion control capabilities.
