Brand:Honeywell DCS Item No.:2MLR-DBST-CC Product Origin:USA Product Dimensions:155 × 115 × 55 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

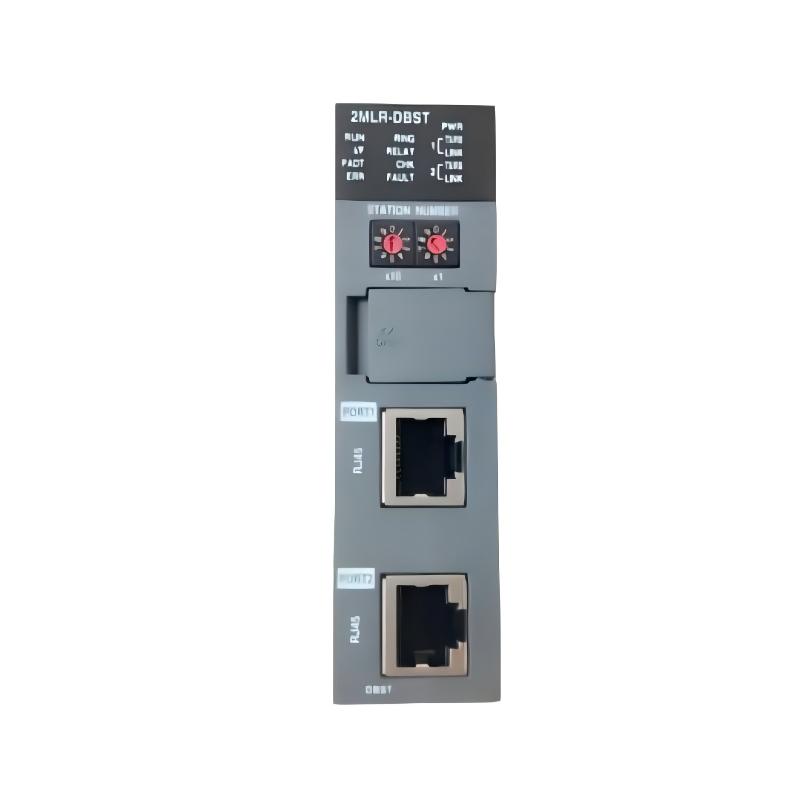

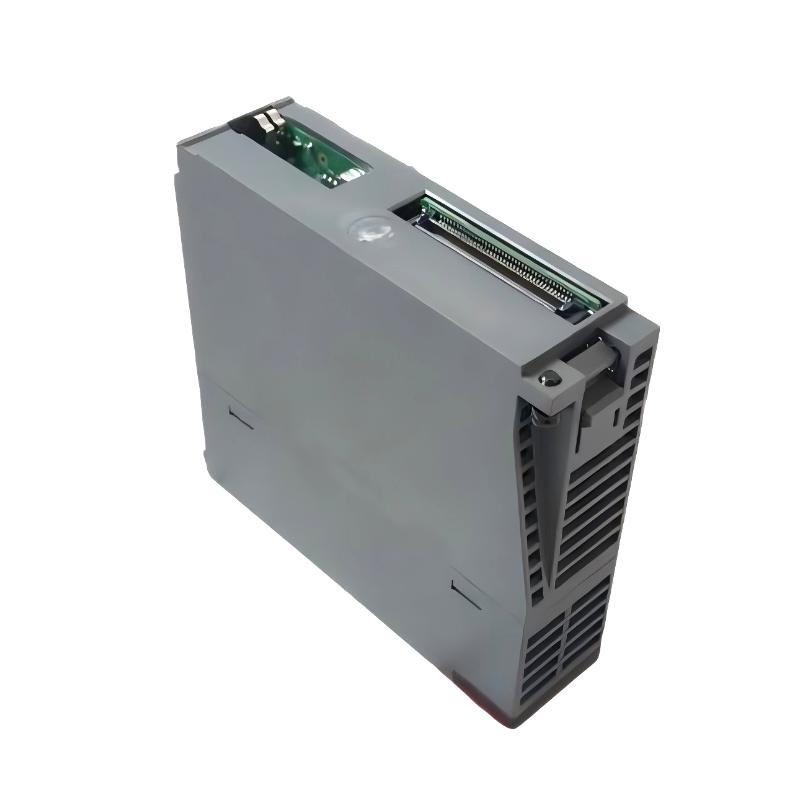

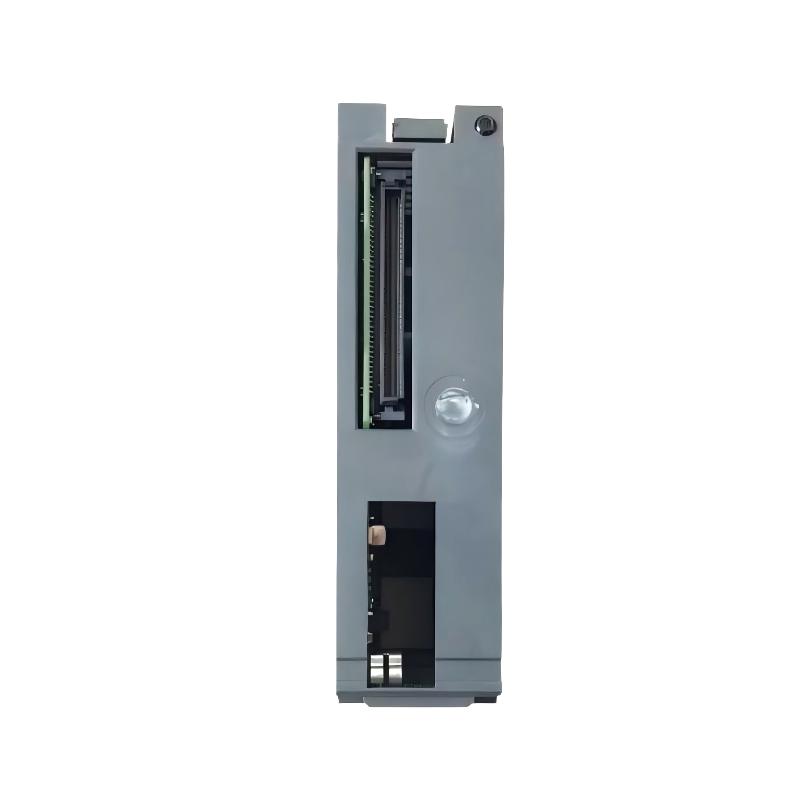

The Honeywell 2MLR-DBST-CC Extended Driver Module provides additional output capacity for Honeywell PLC systems. Its compact and robust design ensures seamless integration for industrial automation expansion projects.
Technical Specifications
Specification
Details
Module Type
Extended Driver Module
Function
Expands PLC output channels
Compatibility
Honeywell 2MLR CPU modules
Outputs
Digital / Analog (via CPU control)
Diagnostics
LED indicators for channel status
Operating Temperature
-10°C to 55°C
Storage Temperature
-20°C to 70°C
Dimensions
155 mm × 115 mm × 55 mm
Weight
0.1 kg
Recommended Related Models
Model
Description
2MLR-DBST-CC
Base extended driver module for additional outputs.
2MLR-DBST2-CC
Second-generation module with higher channel capacity.
2MLR-DBST4-CC
Module supporting multiple driver extensions.
2MLR-DBST-E
Enhanced extended driver for complex automation tasks.
Popular Related Models
Model
Description
2MLR-DBST-CC-R
Redundant-ready driver module for high-reliability systems.
2MLR-DBST2
Widely used extension module for general output expansion.
2MLR-DBST4
High-performance driver for large-scale I/O systems.
2MLR-DBST-E1
Industrial-grade module for demanding process environments.
Applications
• Extended driver module for Honeywell PLC systems to expand I/O capabilities.
• Controlling additional field devices such as actuators, relays, and sensors.
• Integration in industrial automation systems requiring scalable expansion.
• Support for process industries including manufacturing, chemical, and power generation.
• System expansions where additional digital or analog outputs are required.
Key Advantages
• Enables flexible system expansion for Honeywell PLC architectures.
• Compact design for easy installation in control panels.
• Reliable operation in industrial environments.
• Seamless integration with Honeywell CPU and I/O modules.
• Supports long-term, maintenance-free operation.
Technical FAQs
1. What is the primary function of the 2MLR-DBST-CC module?
It extends the output capability of Honeywell PLC systems to additional field devices.
2. How many outputs can this module support?
It depends on the module configuration, typically designed to expand system outputs efficiently.
3. Can it control both digital and analog devices?
Yes, it supports digital outputs and may interface with certain analog-driven devices when paired with compatible modules.
4. Is it compatible with Honeywell CPU modules?
Yes, it integrates seamlessly with Honeywell CPU modules in the 2MLR series.
5. Does it require separate power?
No, it draws power from the main PLC backplane or designated supply.
6. Can it be hot-swapped?
No, installation should be performed while the system is powered down to ensure safety.
7. Is there diagnostic feedback?
Yes, LED indicators provide status information for each output channel.
8. Can multiple DBST modules be installed in a system?
Yes, multiple modules can be used to extend outputs across a single PLC system.
9. Is it suitable for continuous industrial operation?
Yes, it is designed for reliable long-term industrial use.
10. Are firmware updates needed for this module?
No separate firmware updates are required; it functions as an I/O extension under CPU control.
