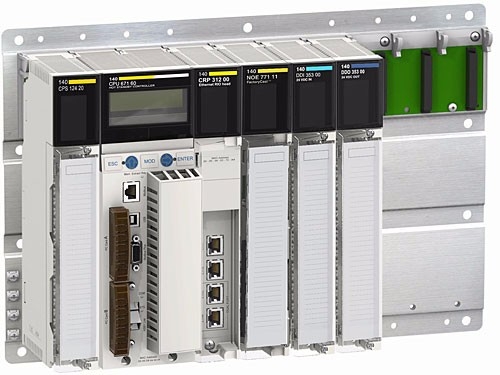

The Schneider Electric 140NOE31100C is a reliable Ethernet communication module for the Modicon Quantum PLC platform, designed to enable stable and efficient data exchange over industrial networks.
Supporting 10BASE-T twisted pair Ethernet, this module is especially valuable in systems that require integration with legacy SY/MAX networks while maintaining compatibility with modern Ethernet-based architectures. It is widely used in industrial environments where consistent communication, system continuity, and easy integration are key priorities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Ethernet Communication Module |
| Platform | Modicon Quantum |
| Communication Standard | 10BASE-T Ethernet |
| Transmission Medium | Twisted Pair (RJ45) |
| Data Rate | Up to 10 Mbps |
| Network Compatibility | SY/MAX compatible + Ethernet TCP/IP integration |
| Communication Function | PLC-to-network and device communication |
| Diagnostics | LED indicators (network status, power, faults) |
| Bus Current Requirement | Approx. 400–500 mA |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Mounting | Quantum backplane |
| Dimensions (H × W × D) | 155 × 110 × 45 mm (standard Quantum module size) |
| Weight | Approx. 0.45 kg (shipping weight ~0.45 kg) |
