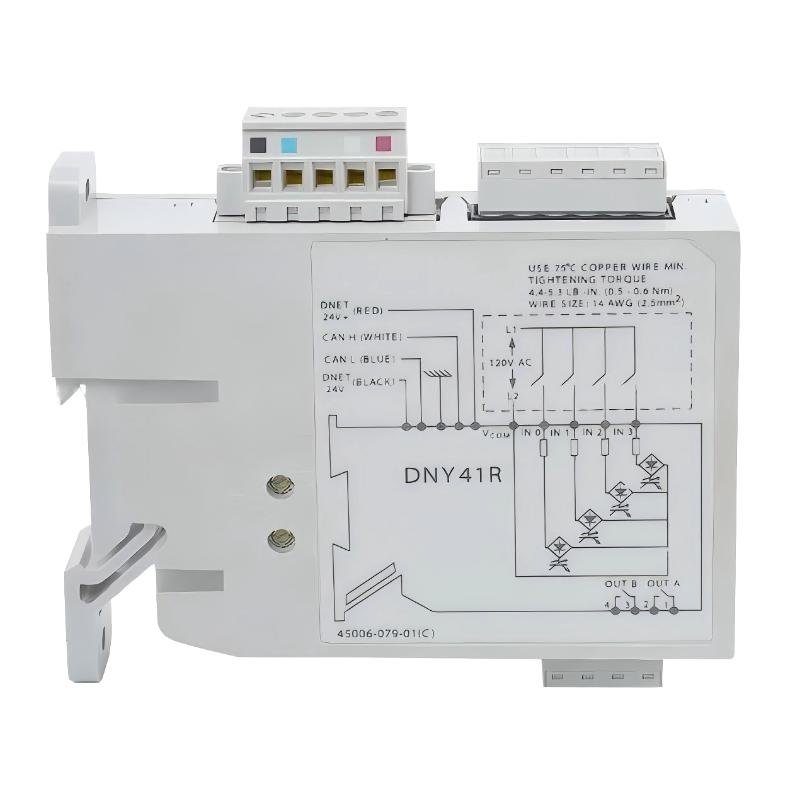

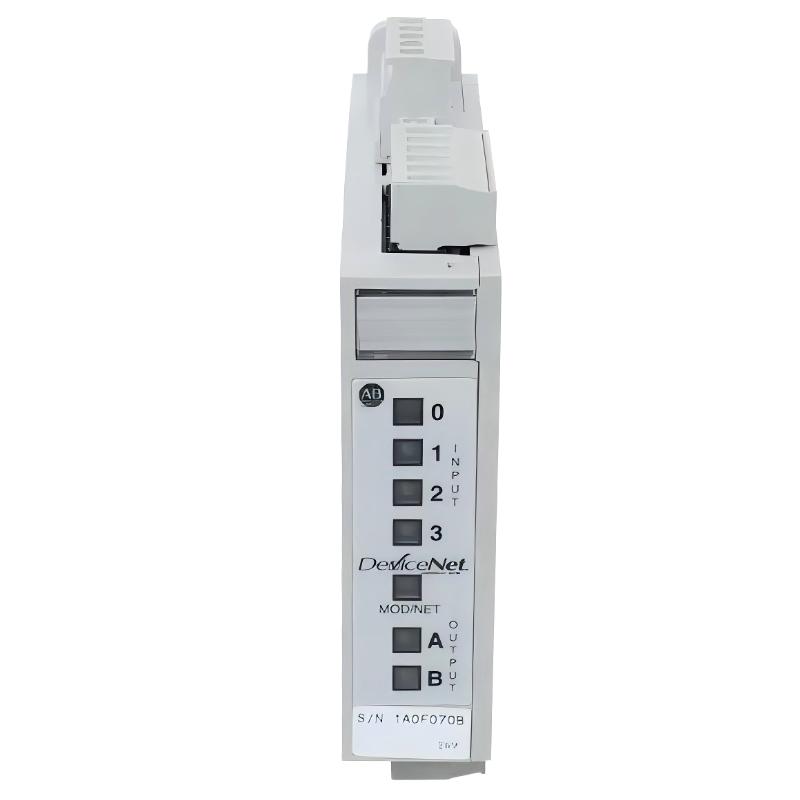

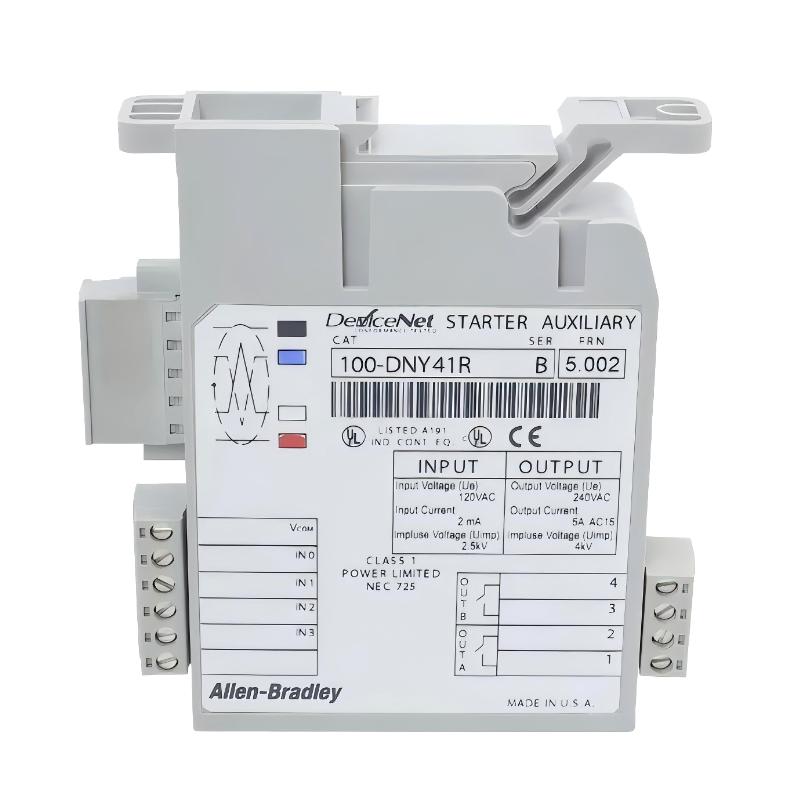

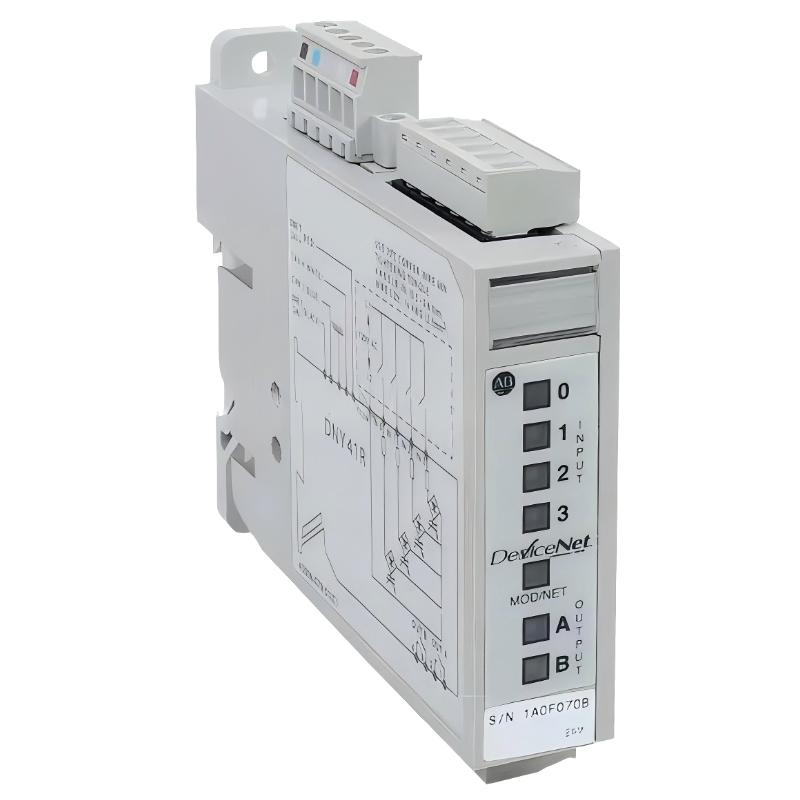

Allen Bradley 100-DNY41R DeviceNet Startup Assistant
Allen Bradley 100-DNY41R DeviceNet Startup Assistant
0.0
Points
Brand:Allen Bradley PLC Item No.:100-DNY41R Product Origin:USA Product Dimensions:114.32 x 22.5 x 110 mm Product Weight:0.16 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 100-DNY41R DeviceNet Startup Assistant simplifies network commissioning and troubleshooting. Its compact design and intuitive functionality help technicians efficiently configure and monitor DeviceNet systems in industrial environments.
Technical Specifications
Specification
Details
Module Type
DeviceNet Startup Assistant
Function
Network setup, configuration, and diagnostics
Compatibility
Allen-Bradley DeviceNet devices
Power
Drawn from DeviceNet network
Diagnostics
Real-time network monitoring
Operating Temperature
0°C to 55°C
Storage Temperature
-20°C to 70°C
Dimensions
114.32 mm × 22.5 mm × 110 mm
Weight
0.16 kg
Recommended Related Models
Model
Description
100-DNY40
Basic DeviceNet setup tool for small networks.
100-DNY42
Advanced startup assistant with enhanced diagnostics.
100-DNY43
Portable assistant for large DeviceNet systems.
100-DNY44
Network commissioning tool with extended monitoring capabilities.
Popular Related Models
Model
Description
100-DNY41
Previous-generation DeviceNet startup assistant.
100-DNY41T
Variant with firmware update capabilities.
100-DNY42R
Widely used for medium-scale network installations.
100-DNY43R
Popular assistant for field diagnostics and network monitoring.
Applications
• Quick setup and commissioning of Allen-Bradley DeviceNet networks.
• Diagnostics and troubleshooting of DeviceNet devices and connections.
• Integration with industrial automation systems for network configuration.
• Monitoring and maintenance of sensors, actuators, and I/O devices on DeviceNet.
• Industrial environments requiring reliable network setup and real-time diagnostics.
Key Advantages
• Simplifies DeviceNet network startup and configuration.
• Provides rapid identification and resolution of network issues.
• Compact, portable design for field use and panel installation.
• Compatible with a wide range of Allen-Bradley DeviceNet devices.
• Reduces commissioning time and enhances operational reliability.
Technical FAQs
1. What is the primary function of the 100-DNY41R module?
It assists in starting up, configuring, and troubleshooting Allen-Bradley DeviceNet networks.
2. Is it compatible with all DeviceNet devices?
Yes, it supports a broad range of Allen-Bradley DeviceNet-compatible devices.
3. Can it monitor network status in real time?
Yes, it provides real-time diagnostics and status information for connected nodes.
4. Is the device portable for field use?
Yes, its compact and lightweight design allows easy portability.
5. Does it require external power?
No, it draws power directly from the DeviceNet network.
6. Can it identify network errors?
Yes, it detects common issues such as node faults, network collisions, and wiring errors.
7. Is software installation required?
No software installation is needed for basic startup assistance, but additional tools may enhance diagnostics.
8. Can multiple modules be used on a single network?
Yes, multiple assistants can be connected sequentially for larger networks.
9. Is it suitable for continuous operation?
Yes, it is designed for repeated use during commissioning and maintenance.
10. Does it support firmware updates?
Yes, firmware updates can be applied through Allen-Bradley service tools if needed.
