Brand:Allen Bradley PLC Item No.:1715-OB8DE Product Origin:USA Product Dimensions:166 x 42 x 118 mm Product Weight:0.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

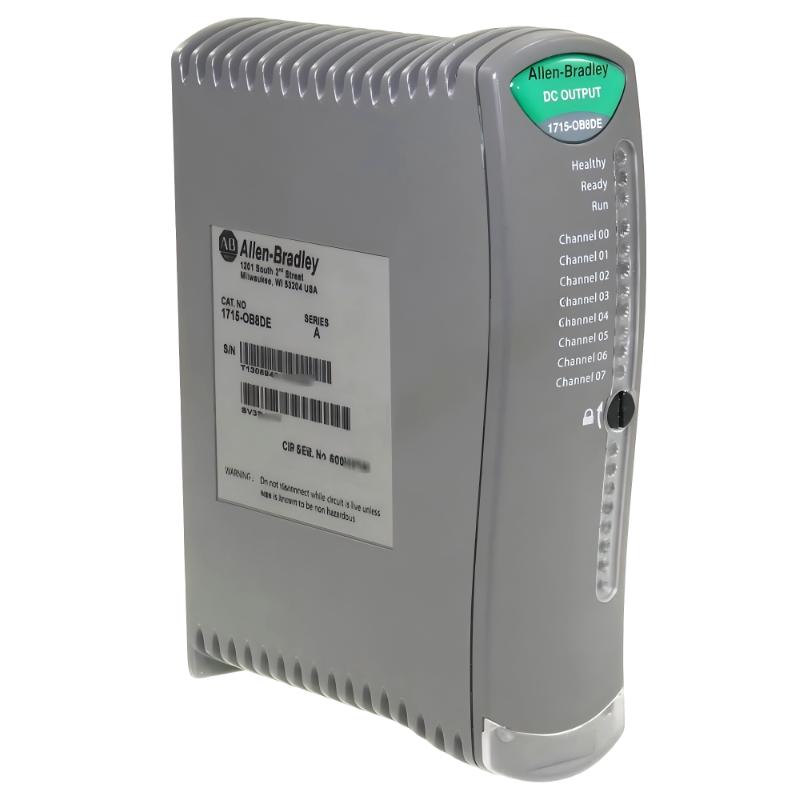

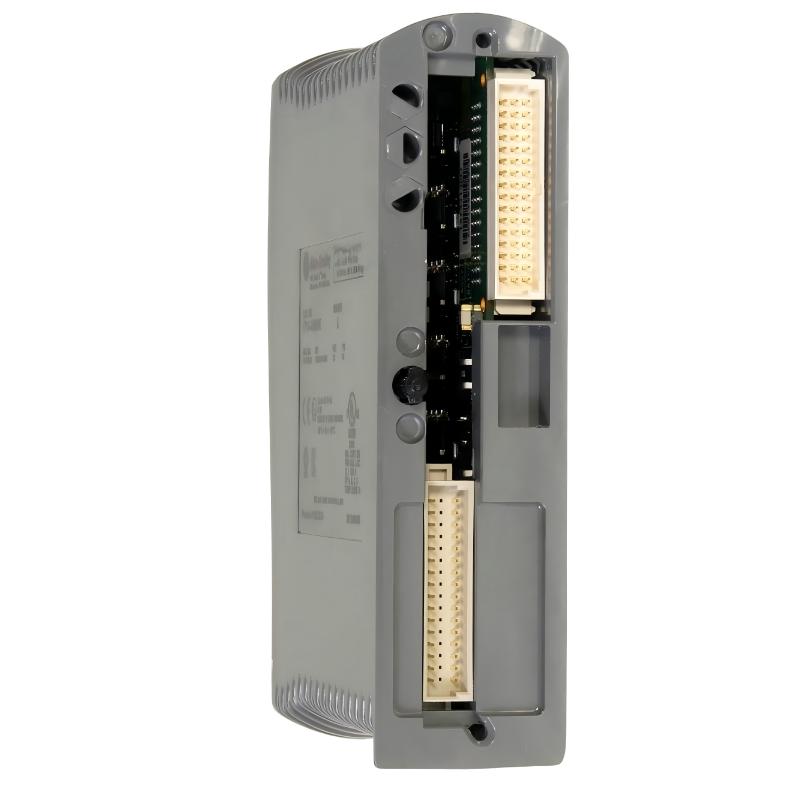

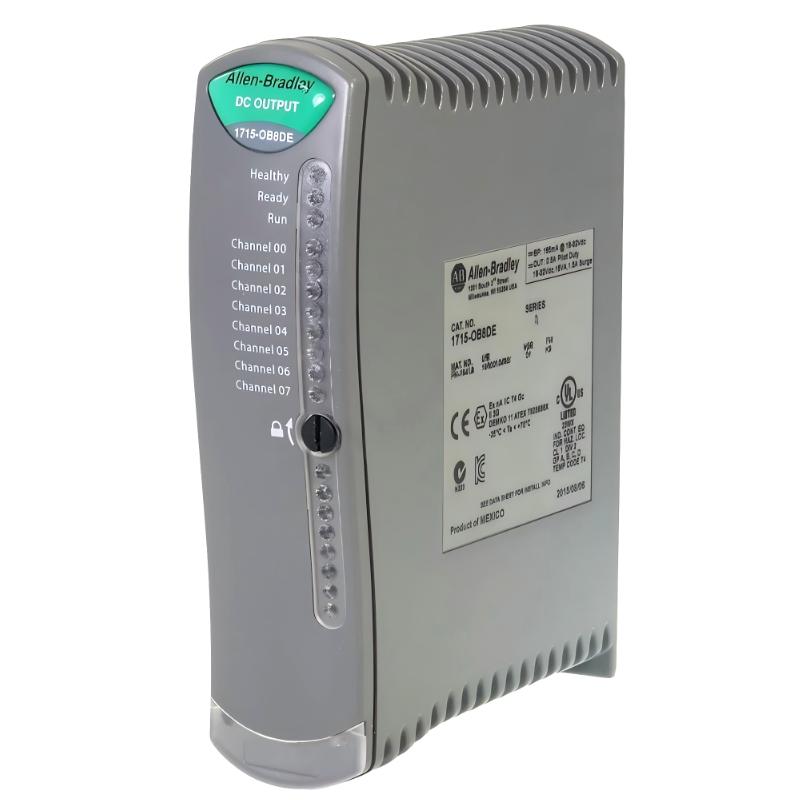

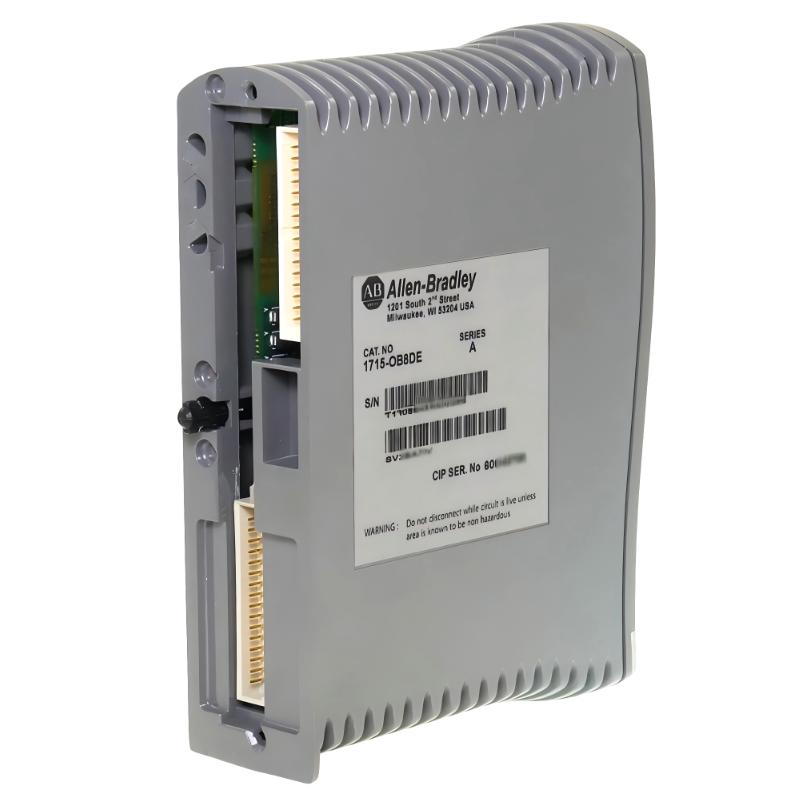

The Allen-Bradley 1715-OB8DE Digital Output Module delivers reliable, fast, and compact digital output control for industrial automation systems. It simplifies wiring, supports diagnostics, and integrates seamlessly with 1715 PLC and I/O systems.
Technical Specifications
Specification
Details
Module Type
Digital Output Module
Function
Provides 8 discrete digital outputs for industrial control
Compatibility
Allen-Bradley 1715 PLC and I/O systems
Diagnostics
LED indicators and status feedback
Operating Temperature
0°C to 55°C
Storage Temperature
-20°C to 70°C
Dimensions
166 mm × 42 mm × 118 mm
Weight
0.29 kg
Recommended Related Models
Model
Description
1715-OB4DE
Digital output module with 4 discrete outputs.
1715-OB16DE
High-capacity module with 16 outputs for larger systems.
1715-OB8DC
Variant with DC output configuration for specialized applications.
1715-OB8AC
AC output version for controlling AC devices.
Popular Related Models
Model
Description
1715-OB8DE
Widely used 8-channel digital output module.
1715-OB16DE
Popular choice for expanded output control.
1715-OB4DE
Common module for smaller control setups.
1715-OB8DC
Used for DC-output control in medium industrial systems.
Applications
• Provides digital output control for Allen-Bradley PLCs in automation systems.
• Controls actuators, relays, solenoids, and indicator devices.
• Integration with industrial process and manufacturing systems.
• Enables automated switching and signaling for machinery and equipment.
• Suitable for small to medium-scale control applications requiring precise digital outputs.
Key Advantages
• Reliable and fast-response digital output performance.
• Compact design for easy installation in standard control panels.
• Compatible with Allen-Bradley 1715 I/O modules and PLC systems.
• Built-in diagnostics for fault detection and status monitoring.
• Reduces wiring complexity and simplifies system expansion.
Technical FAQs
1. What is the primary function of the 1715-OB8DE module?
It provides digital outputs for controlling external devices such as relays, solenoids, and indicators.
2. How many digital outputs does it provide?
It provides 8 discrete digital outputs.
3. Is it compatible with Allen-Bradley PLCs?
Yes, it integrates seamlessly with the Allen-Bradley 1715 I/O and PLC systems.
4. Can it operate continuously in industrial environments?
Yes, it is designed for reliable 24/7 operation under standard industrial conditions.
5. Does it support fault diagnostics?
Yes, the module includes status indicators and diagnostic feedback.
6. Can multiple modules be installed together?
Yes, multiple digital output modules can be used to expand system capabilities.
7. Is it suitable for switching inductive loads?
Yes, it can control relays and solenoids, but load specifications must be observed.
8. What is the response time of the outputs?
The module provides fast switching suitable for most industrial control applications.
9. Does it require external power?
Yes, it draws power from the Allen-Bradley I/O backplane.
10. Can it simplify wiring in control panels?
Yes, the module consolidates multiple outputs into a single unit, reducing wiring complexity.
