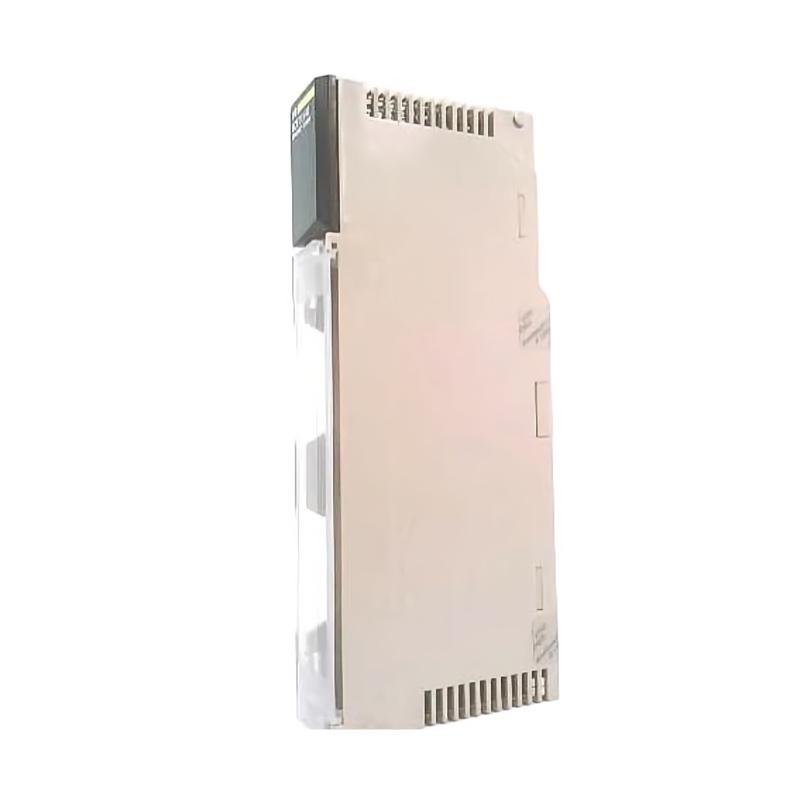

The Schneider Electric 140NOE35100C is a fiber optic Ethernet communication module designed for the Modicon Quantum automation platform. It enables reliable Modbus TCP/IP communication over optical fiber, making it ideal for long-distance industrial networking and environments with high electromagnetic interference (EMI).
With support for 10Base-FL fiber Ethernet, this module provides a stable and noise-immune communication backbone, especially suited for large facilities, distributed systems, and legacy SY/MAX-compatible architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Ethernet Communication Module (Fiber Optic) |
| Platform | Modicon Quantum |
| Communication Protocol | Modbus TCP/IP |
| Ethernet Standard | 10Base-FL (Fiber Optic Ethernet) |
| Interface Type | Optical Fiber (Single Channel) |
| Network Compatibility | SY/MAX compatible + Ethernet integration |
| Transmission Medium | Fiber optic cable |
| Communication Speed | Up to 10 Mbps |
| Key Feature | Long-distance, EMI-immune communication |
| Diagnostics | LED indicators for status and faults |
| Bus Current Requirement | Approx. 400–500 mA |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Dimensions (H × W × D) | 155 × 110 × 45 mm (standard Quantum module size) |
| Weight | Approx. 0.30 – 0.50 kg (varies by source/revision) |
