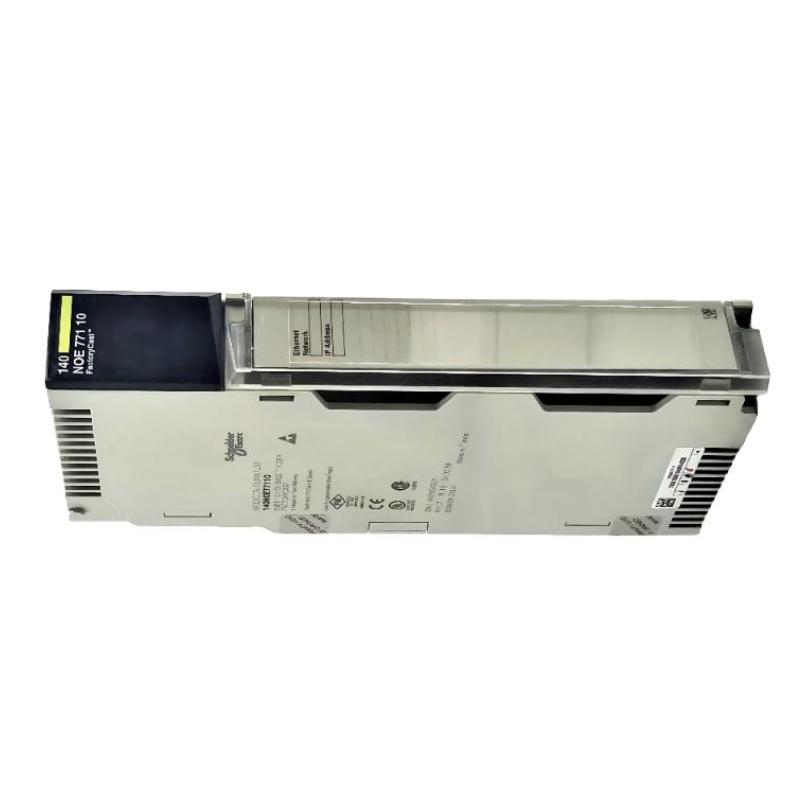

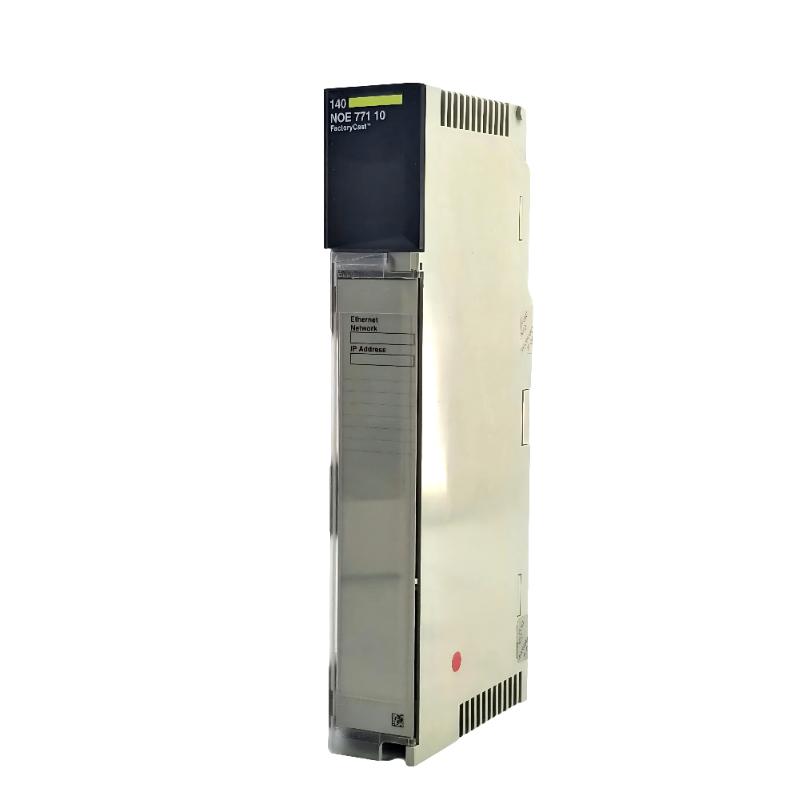

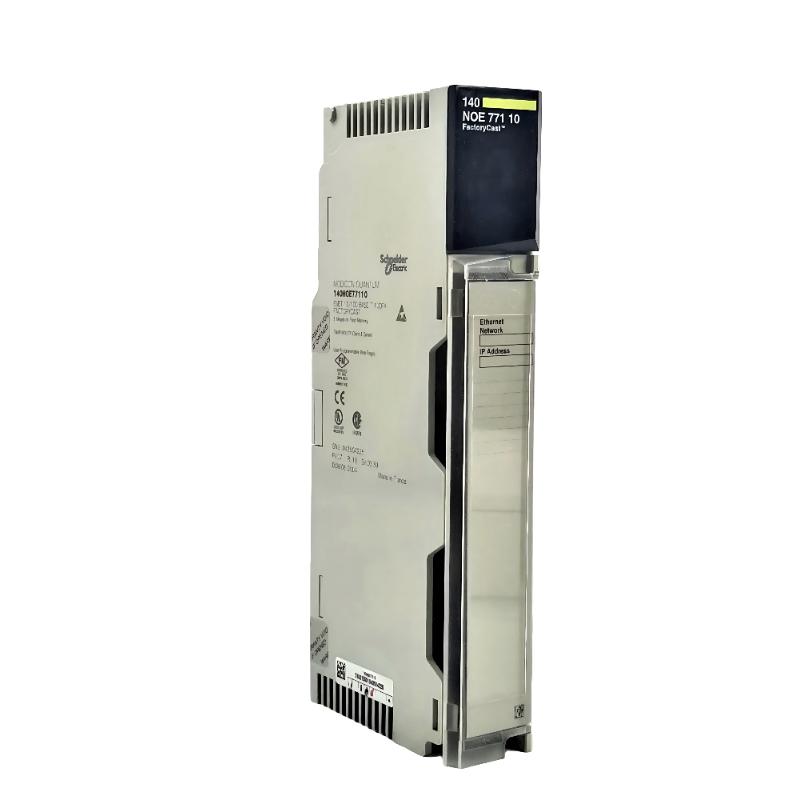

The Schneider Electric 140NOE77110C is a high-performance Ethernet TCP/IP communication module designed for the Modicon Quantum PLC platform. It provides fast, reliable industrial networking with support for both fiber optic and copper Ethernet connections, enabling flexible deployment in modern and legacy automation systems.
With integrated Modbus TCP/IP, SNMP, and embedded web server (FactoryCast) capabilities, this module is widely used in distributed control systems where real-time communication, diagnostics, and remote access are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Ethernet TCP/IP Communication Module |
| Platform | Modicon Quantum |
| Communication Protocols | Modbus TCP/IP, SNMP |
| Ethernet Interfaces | RJ45 (10/100BASE-TX) + MT/RJ Fiber (100BASE-FX) |
| Transmission Rate | 10 / 100 Mbit/s |
| Web Server | Class C20 (FactoryCast configurable) |
| Communication Services | Modbus TCP messaging, SNMP management, web diagnostics |
| Redundancy | Hot standby architecture |
| Diagnostics | LED indicators + embedded web tools |
| Bus Current Requirement | ~750 mA @ 5 V DC |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Dimensions (H × W × D) | 260 × 120 × 50 mm |
| Weight | Approx. 0.45 – 0.50 kg |
