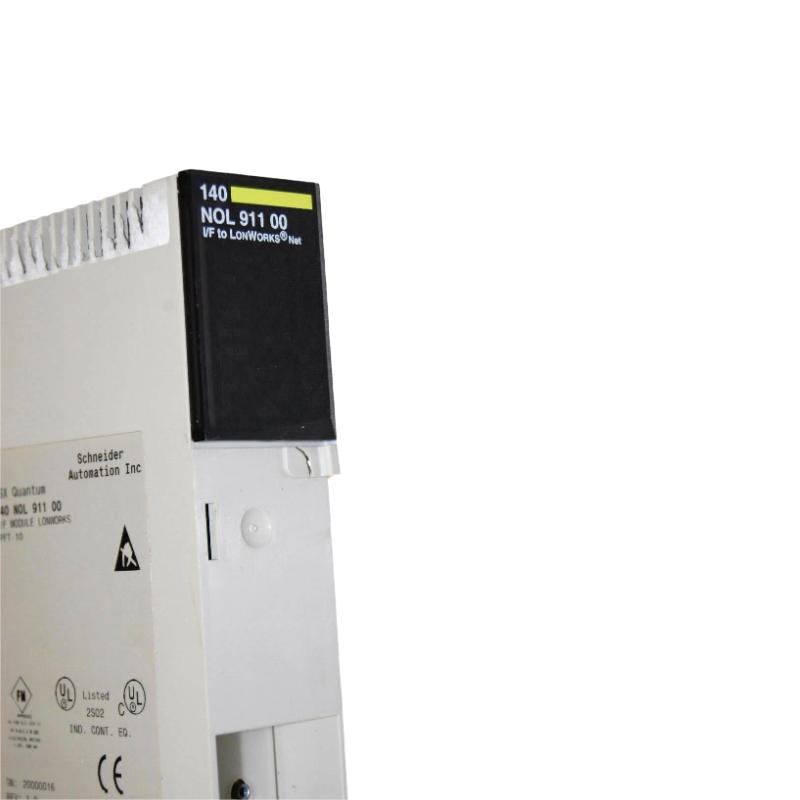

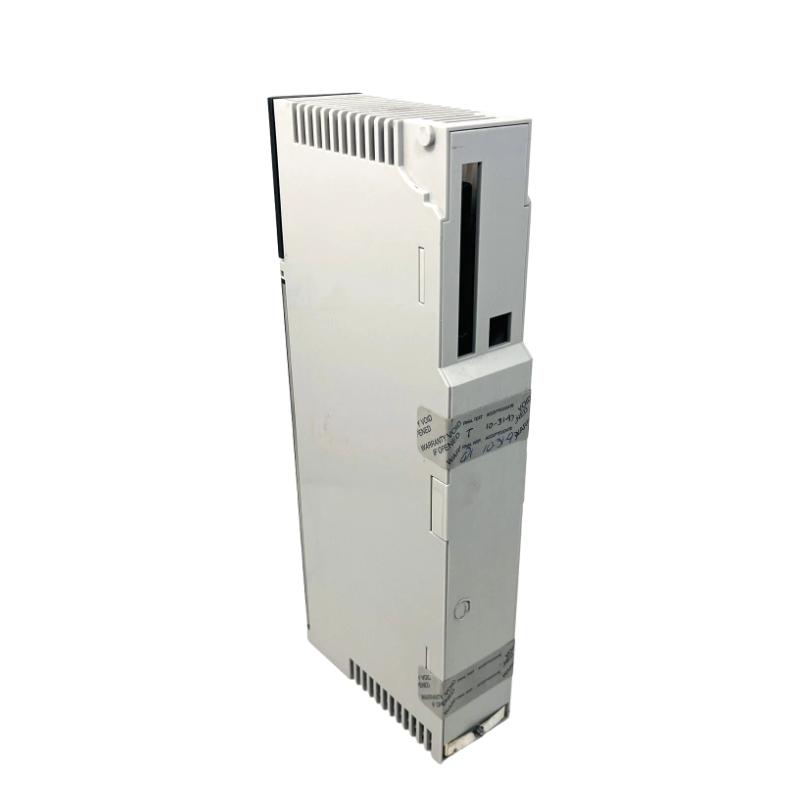

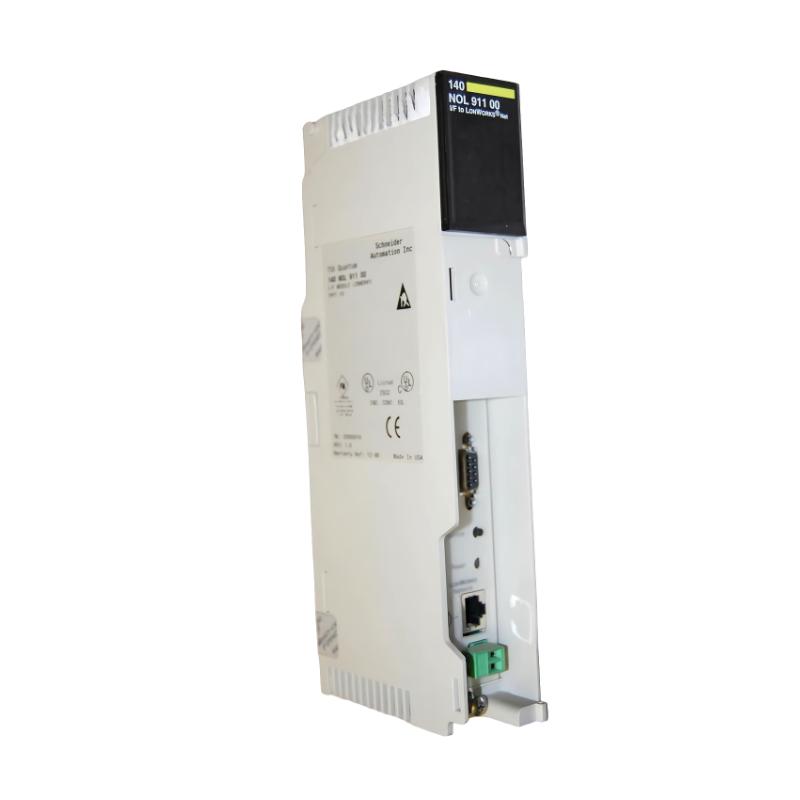

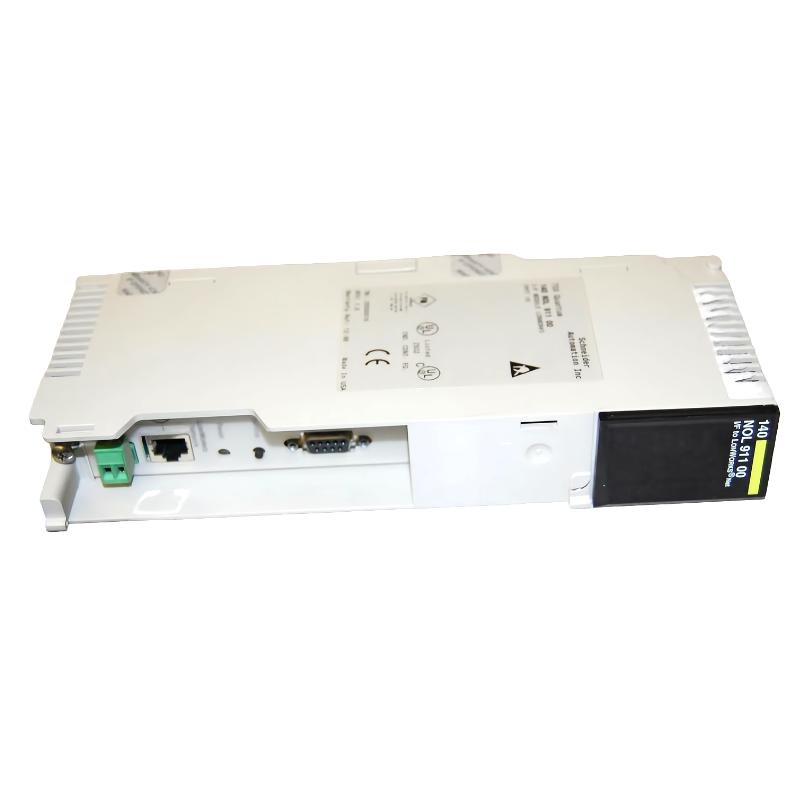

The Schneider Electric 140NOL91100 is a specialized LonWorks communication transceiver module designed for the Modicon Quantum PLC platform. It enables seamless integration between Quantum systems and LonWorks (LON) networks, providing reliable and flexible communication for distributed automation architectures.
Built with FTT-10 (Free Topology Transceiver) technology, this module supports multiple wiring topologies (bus, star, or free-form), making it highly adaptable for complex industrial installations. It is widely used in building automation, energy systems, and distributed control networks where interoperability and flexibility are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | LonWorks Transceiver Communication Module |
| Platform | Modicon Quantum |
| Communication Protocol | LonWorks (FTT-10) |
| Network Type | LON (Local Operating Network) |
| Data Rate | 1.25 Mbps |
| Topology Support | Bus, star, free topology |
| Power Supply | 24 V DC |
| Interface Type | Screw terminal connection |
| Diagnostics | LED indicators for status and faults |
| Bus Current Requirement | Typical Quantum module range |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity | 10–95% non-condensing |
| Mounting | Quantum backplane |
| Dimensions (H × W × D) | 155 × 110 × 45 mm (standard Quantum module size) |
| Weight | Approx. 0.03 – 0.34 kg (varies by source/revision) |
