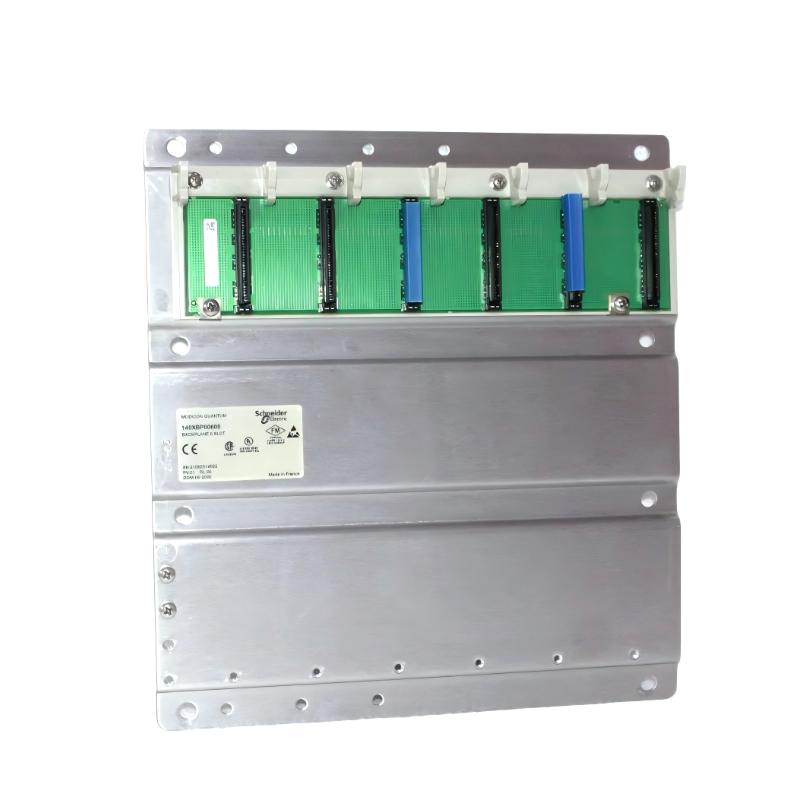

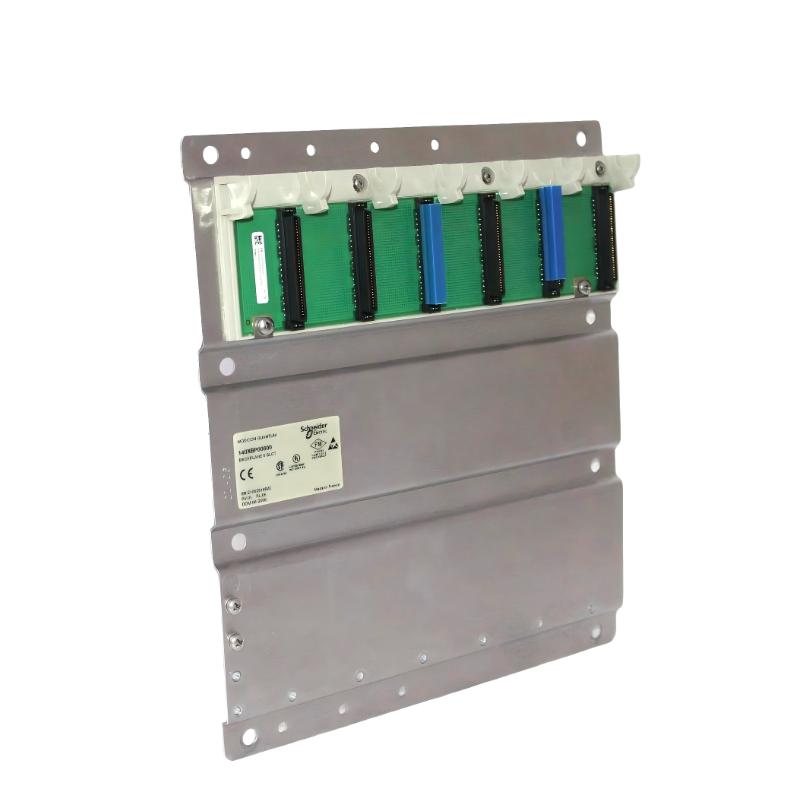

The Schneider Electric 140XBP00600 is a backplane bus connector module engineered for the Modicon Quantum programmable logic controller (PLC) platform.
As a core system component, this module serves as the backplane interconnect that links the Quantum rack’s power and communication buses with individual I/O and controller modules. Its purpose is to ensure reliable electrical continuity and signal integrity throughout the Quantum system chassis, enabling consistent performance across all installed modules. Backplanes like the 140XBP00600 are essential for stable system operation and proper module addressing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Backplane Bus Connector Module |
| Platform | Modicon Quantum |
| Function | Provides backplane electrical and communication pathways |
| Compatibility | Modicon Quantum PLC chassis and modules |
| Rack Slot Count | 6 positions (6‑slot backplane) |
| Mounting | Chassis rail / rack mount |
| Connector Type | Edge card / backplane bus interface |
| Bus Voltage Distribution | Supports standard Quantum bus voltages for logic and I/O modules |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity | Up to 95 % non‑condensing |
| Dimensions (H × W × D) | Approx. 135 × 80 × 25 mm (module footprint only) |
| Weight | Approx. 0.20 kg |
