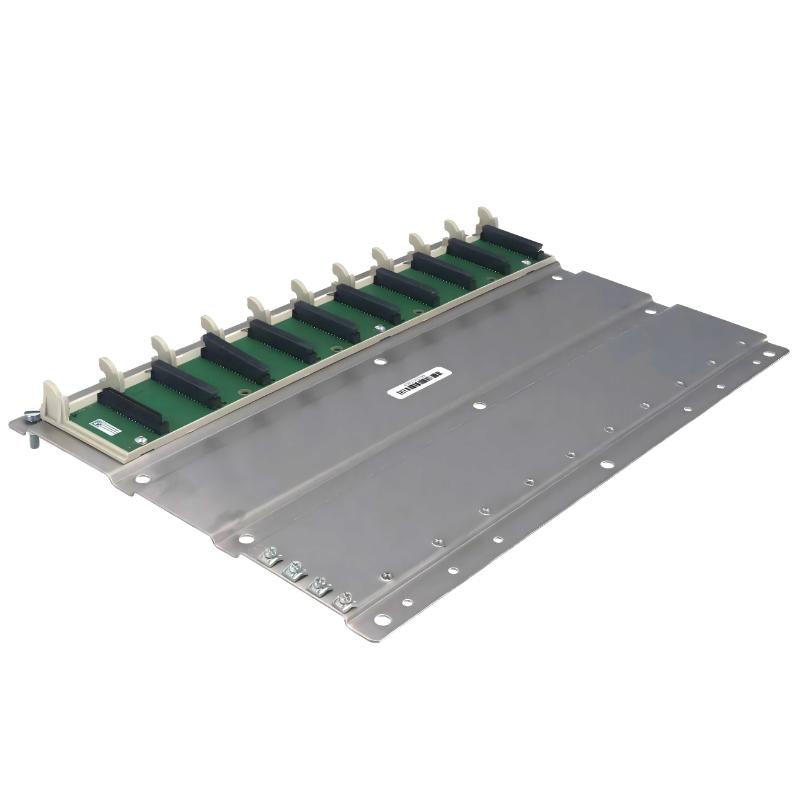

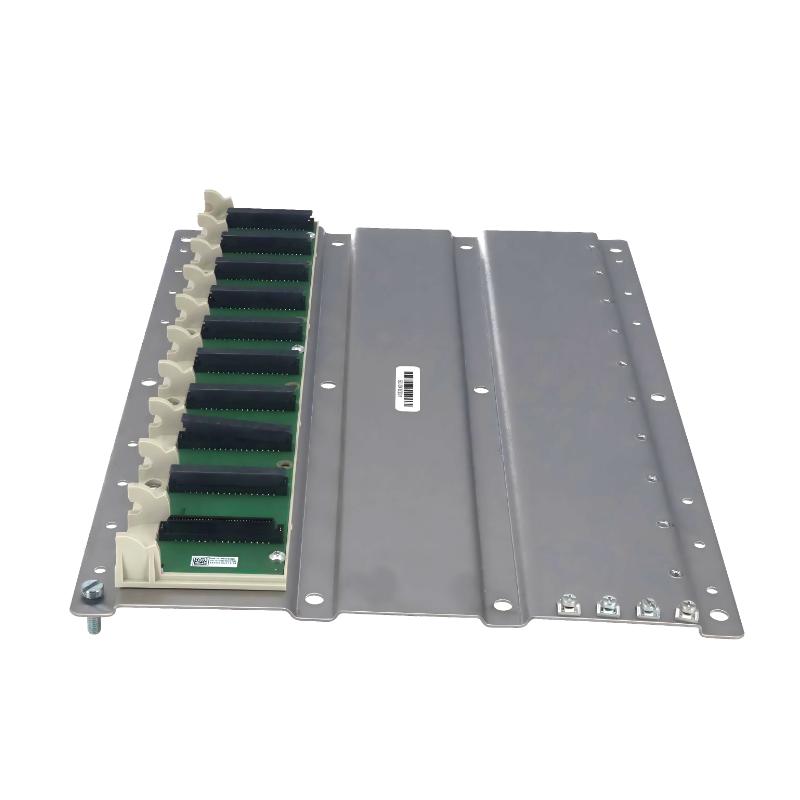

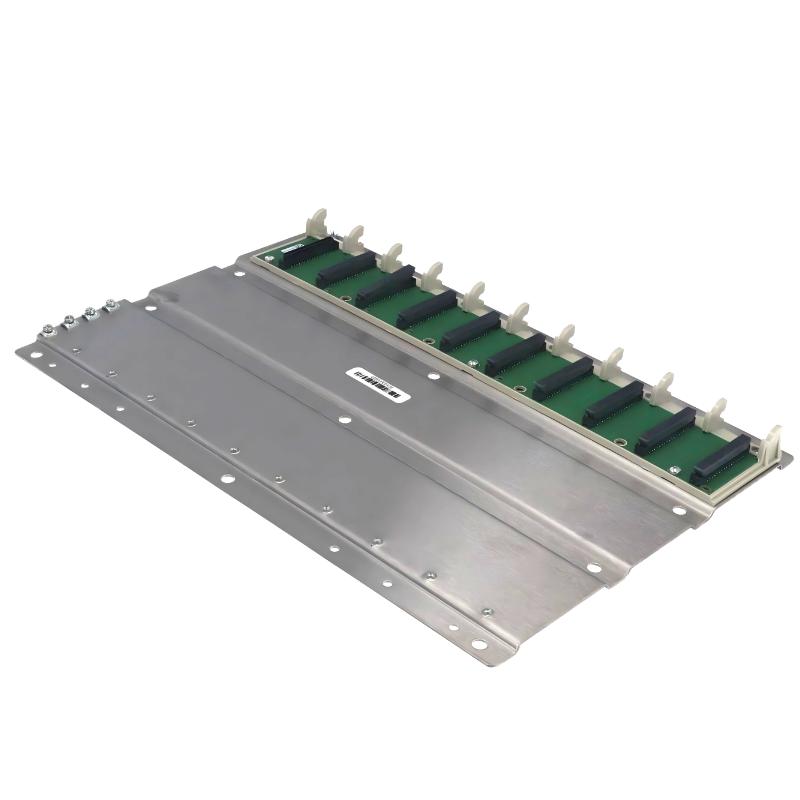

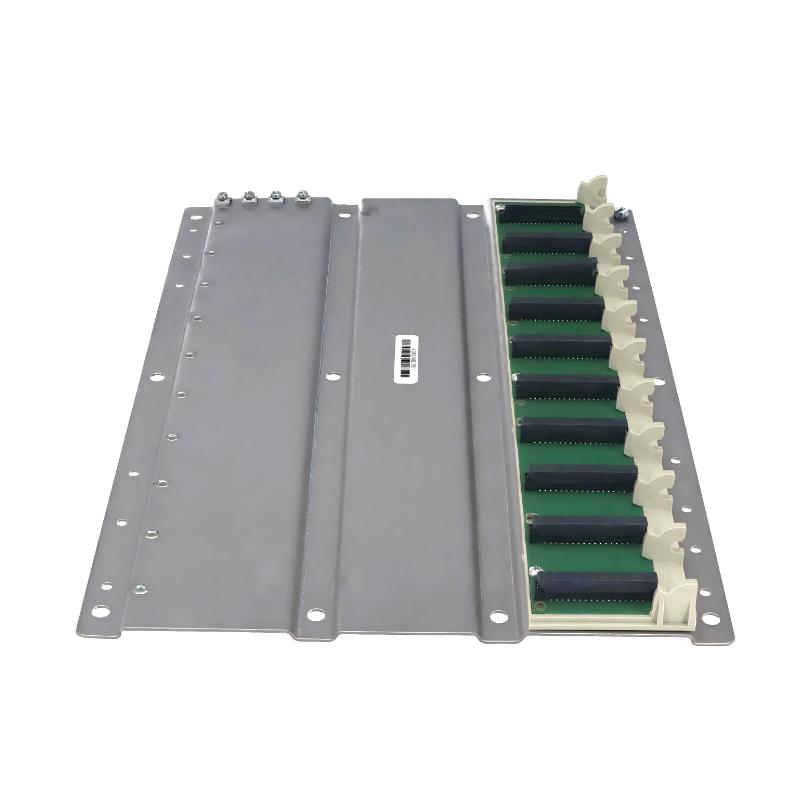

The Schneider Electric 140XBP01000 is a 10‑slot backplane bus connector module engineered for the Modicon Quantum industrial automation platform. It serves as the electrical backbone of a Quantum PLC rack, establishing reliable power distribution and high‑integrity communication pathways between the CPU, I/O modules, communication interfaces, and other integration components.
This backplane is essential in systems with moderate I/O counts or multi‑function configurations, providing flexibility and scalability while maintaining robust performance in industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Backplane Bus Connector Module |
| Platform | Modicon Quantum |
| Rack Slot Count | 10 positions (10‑slot capacity) |
| Function | Provides power & communication bus connections for all installed modules |
| Mounting | Chassis rail / rack mount |
| Connector Type | Edge card / backplane bus interface |
| Bus Voltage Distribution | Standard Modicon Quantum PLC bus voltages |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity | Up to 95 % non‑condensing |
| Dimensions (H × W × D) | Approx. 190 × 110 × 25 mm (module footprint only) |
| Weight | Approx. 0.30 kg |
