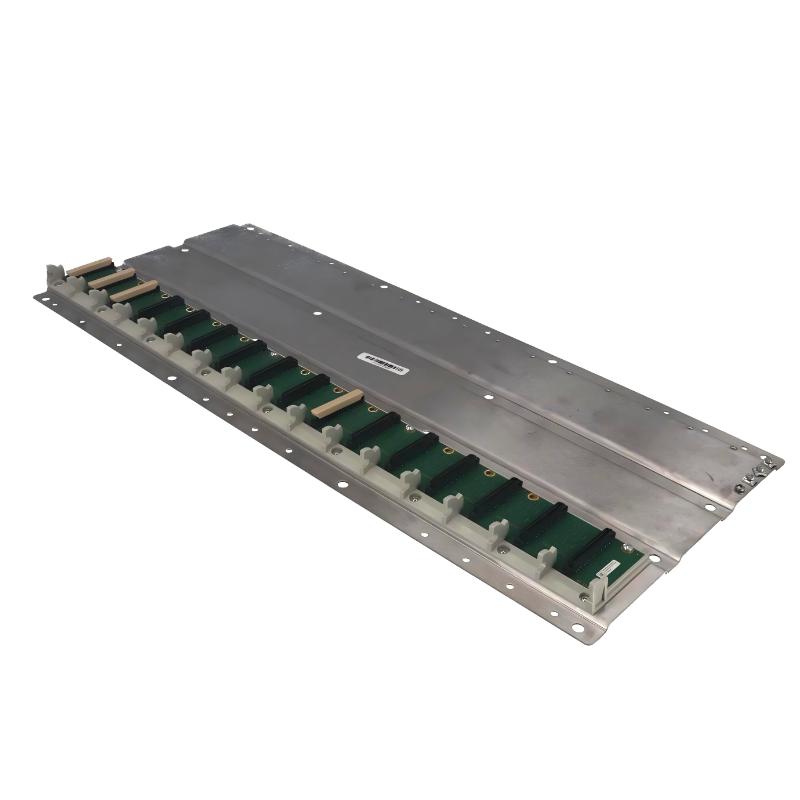

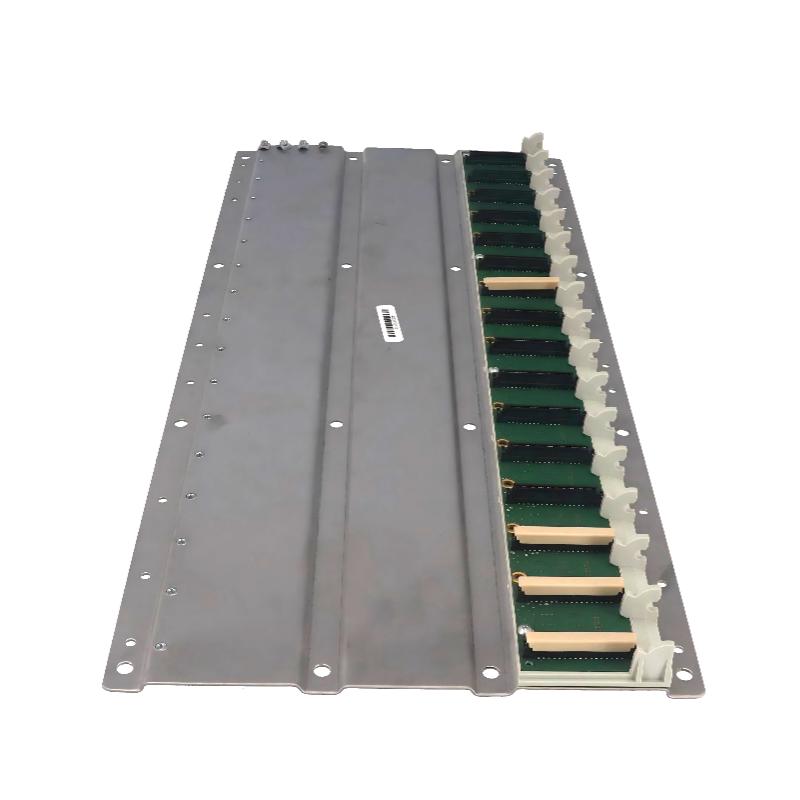

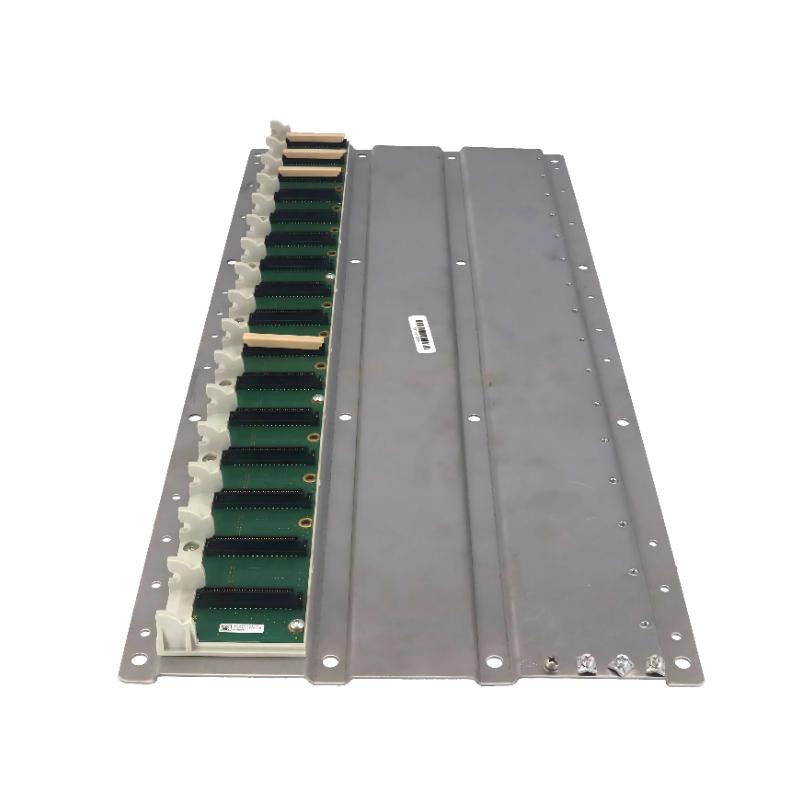

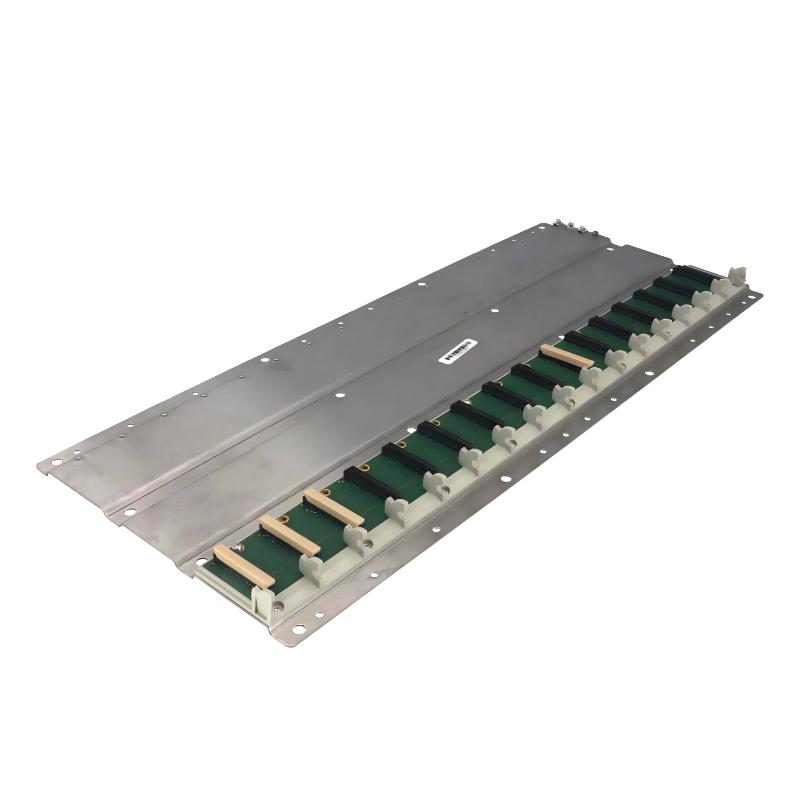

The Schneider Electric 140XBP01600 is a 16‑slot backplane bus connector module developed for the Modicon Quantum programmable logic controller (PLC) platform. Serving as the system’s central electrical backbone, this backplane ensures reliable power distribution and signal communication between the CPU, I/O modules, communication interfaces, and expansion modules.

With 16 available module positions, the 140XBP01600 is ideal for large, high‑density automation systems that require extensive I/O, networking, motion control, and communication capabilities. Its industrial‑grade design supports stable operation in demanding factory and process environments.

Technical Specifications

Specification	Details
Product Type	Backplane Bus Connector Module
Platform	Modicon Quantum
Rack Slot Count	16 positions
Function	Provides power & communication buses for all installed modules
Mounting	Chassis rail / rack mount
Connector Type	Edge card / backplane bus connector interface
Bus Voltage Distribution	Standard Modicon Quantum backplane voltages
Operating Temperature	0 °C to 60 °C
Storage Temperature	–40 °C to 85 °C
Humidity	Up to 95 % non‑condensing
Dimensions (H × W × D)	Approx. 295 × 110 × 25 mm (module footprint only)
Weight	Approx. 0.48 kg

Recommended Related Modules

140XBP00600 – 6‑slot backplane connector
140XBP01000 – 10‑slot backplane connector
140CPU67160C – Quantum Unity CPU Processor
140NOE77111 – Ethernet TCP/IP communication module
140CRA93200C – RIO Drop Adaptor Module

Popular Quantum PLC Modules

140AVI03000C – Analog Input Module
140ADO02000C – Analog Output Module
140DDI35300C – Digital Input Module
140DDO35300C – Digital Output Module
140DAO84010C – AC Output Module

Applications

The 140XBP01600 backplane module is suited for automation systems requiring high module counts and complex configurations:

Large distributed I/O systems
Manufacturing and process automation systems with diverse module types
Material handling, packaging, and assembly lines
SCADA and networked control installations
Centralized control rooms with extensive module requirements

Advantages

Large Slot Capacity: 16 positions accommodate extensive I/O, communication, and expansion modules.
Robust System Backbone: Provides reliable power distribution and signal paths essential for stable PLC operation.
Modicon Quantum Compatibility: Designed for seamless integration with a wide range of Quantum CPU and I/O modules.
Industrial Durability: Built to withstand typical control room and plant floor conditions.
Easy Integration: Edge card connector design simplifies system assembly and serviceability.

Technical FAQs

What is the 140XBP01600 used for?
It serves as the backplane bus connector for a 16‑slot Modicon Quantum PLC rack.
How many module positions does it support?
16 positions.
Which platform is it compatible with?
The Modicon Quantum PLC platform.
What are its dimensions?
Approximately 295 × 110 × 25 mm (module footprint).
What is the weight?
Approximately 0.48 kg.
Does it distribute power to modules?
Yes — it provides both power and communication bus connections.
Can it be used with all Quantum modules?
Yes, compatible with Quantum CPU, I/O, and communication modules.
What temperature range is supported?
Operating: 0 °C to 60 °C; Storage: –40 °C to 85 °C.
Is this a standalone item?
No — it must be installed within a Quantum rack assembly with matching modules.
Why is the backplane important?
It forms the electrical and communication backbone of a PLC rack, ensuring all modules share common power and signal paths.
