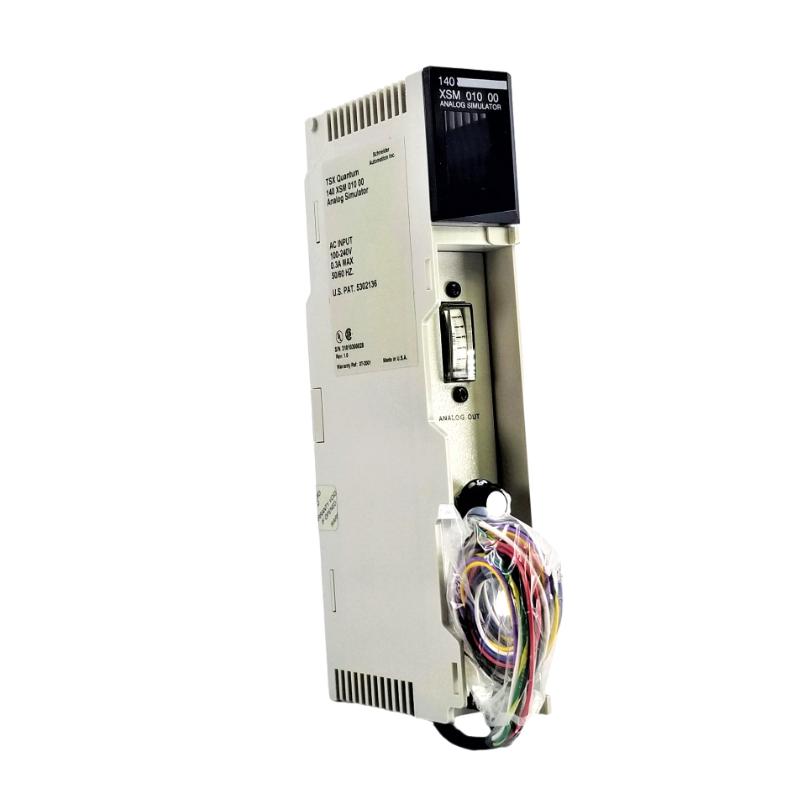

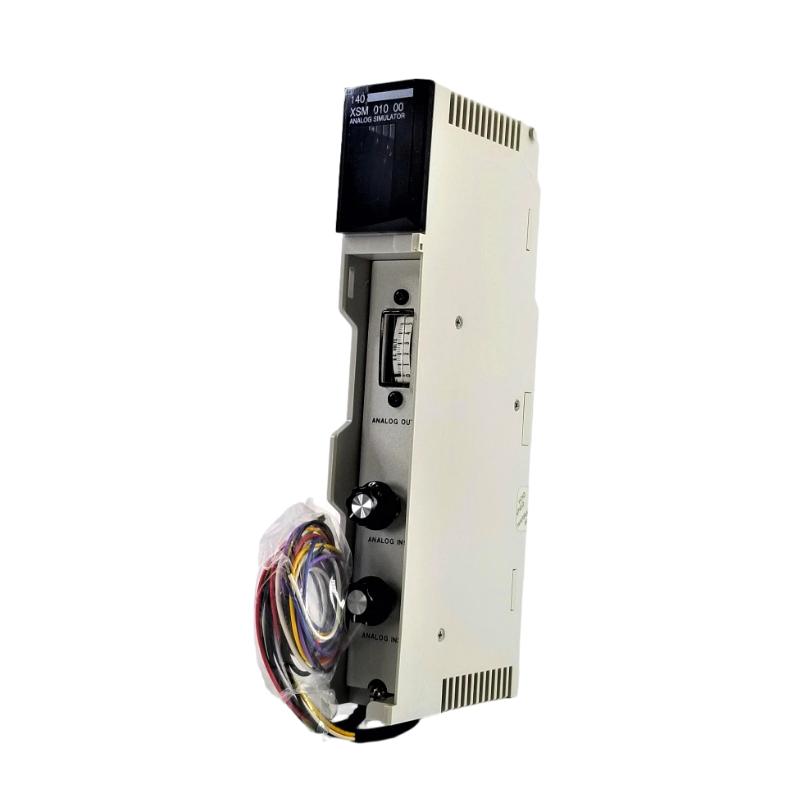

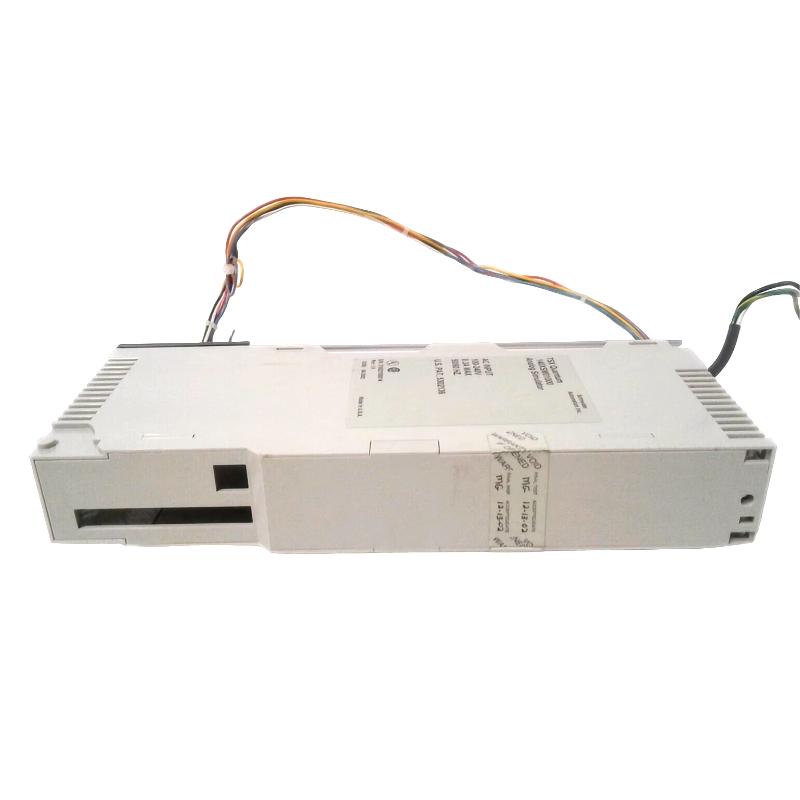

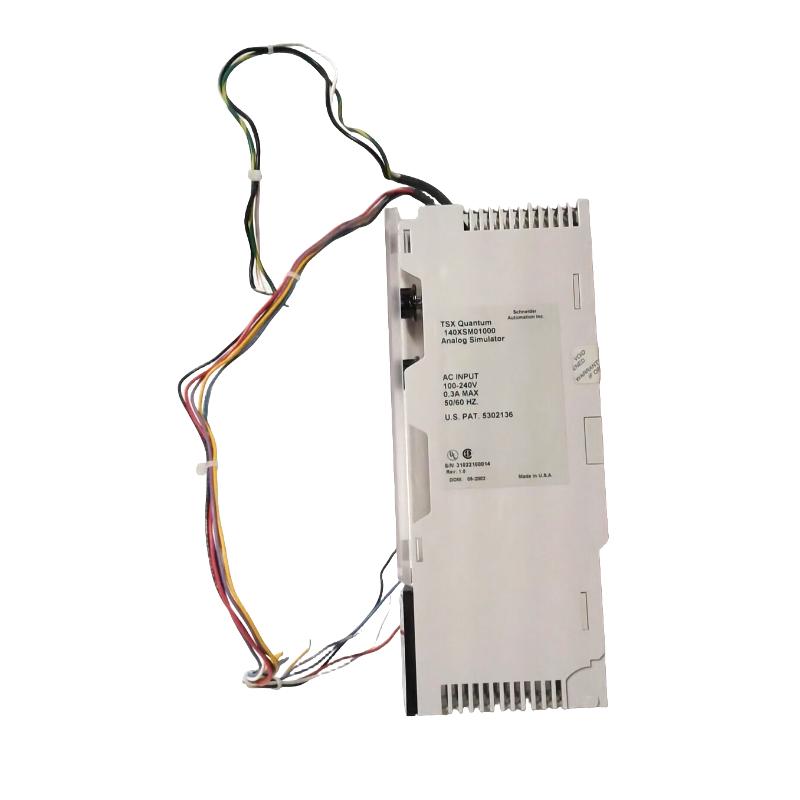

140XSM01000-4 140XSM01000-1 140XSM01000-3 140XSM01000-2

The Schneider 140XSM01000 Modular Communication and Control Interface is designed for reliable, high-speed data exchange in modern industrial automation systems. Optimized for PLC networking and distributed I/O integration, this module ensures precise process control, real-time monitoring, and seamless connectivity across complex industrial operations. With robust design and broad compatibility, it minimizes downtime and simplifies integration for manufacturers, energy providers, and process engineers.

Technical Specifications

Feature	Specification
Module Type	Communication & Control Module
Model Number	140XSM01000
Dimensions (L × W × H)	138 mm × 40 mm × 110 mm
Weight	0.51 kg
Power Supply	24 V DC
Network Compatibility	Modbus RTU, Profibus DP, Ethernet/IP
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C
Certifications	CE, UL, RoHS
Mounting	DIN Rail / Panel Mountable

Recommended Related Models

Schneider 140XBP01000 – Remote communication interface module
Schneider 140XBP01600 – High-speed I/O expansion module
Schneider 140NOL91650C – Digital output module for automation systems

Popular Schneider Models

Schneider TSX P57C024M – Advanced PLC communication module
Schneider TSXPBY100 – Fieldbus interface for distributed I/O
Schneider TSXPCX1031-C – Industrial networking module for control systems

Applications

High-speed PLC and industrial automation networks
Real-time communication between Schneider PLCs and distributed I/O devices
Integration with SCADA and HMI systems for process monitoring and control
Automation in manufacturing, energy, and utilities sectors

Advantages

Reliable Performance: Designed for continuous operation in demanding industrial environments
Seamless System Integration: Works with Schneider and third-party PLC platforms
Compact Design: Optimizes panel space while maintaining robust communication capabilities
High-Speed Data Transfer: Ensures precise and timely monitoring and control
Certified Quality: CE, UL, and RoHS compliance guarantees trusted industrial deployment

Technical FAQs

Which networks are supported by the 140XSM01000?
Modbus RTU, Profibus DP, and Ethernet/IP.
Can it be mounted on a DIN rail?
Yes, supports both DIN rail and panel mounting.
What is the operating temperature range?
0°C to 60°C.
Is it compatible with Schneider PLCs?
Yes, fully compatible with most Schneider automation systems.
What are the module’s dimensions and weight?
138 mm × 40 mm × 110 mm; 0.51 kg.
What power supply is required?
24 V DC.
Can it operate in harsh industrial environments?
Yes, but specific hazardous area certifications should be verified.
Does it support remote monitoring?
Yes, enabling real-time remote communication and monitoring.
Which certifications does the module hold?
CE, UL, RoHS.
How is data reliability ensured?
Advanced error-checking protocols and industrial communication standards maintain accurate, secure data transmission.
