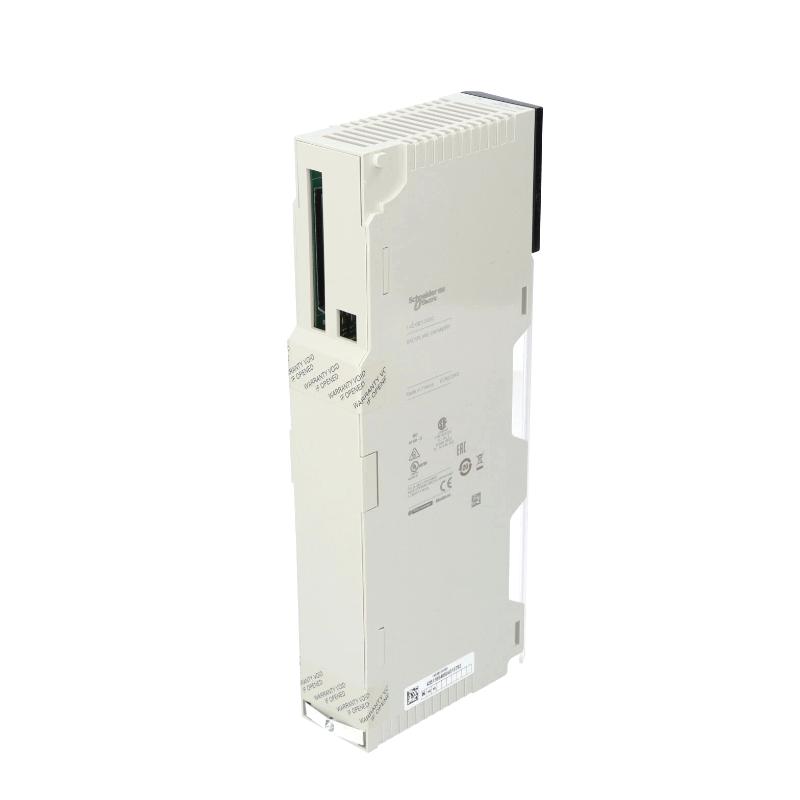

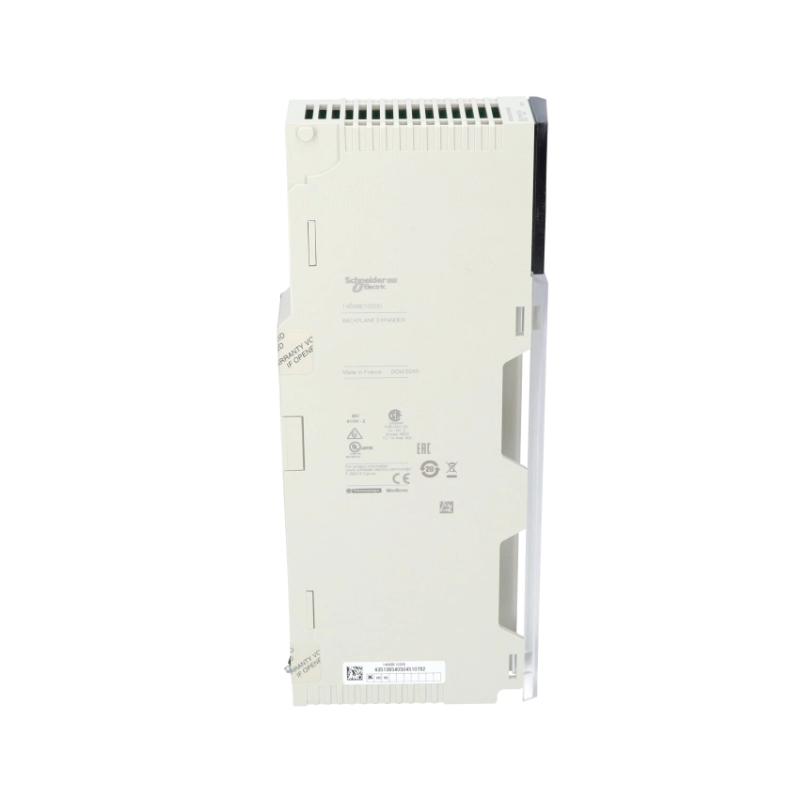

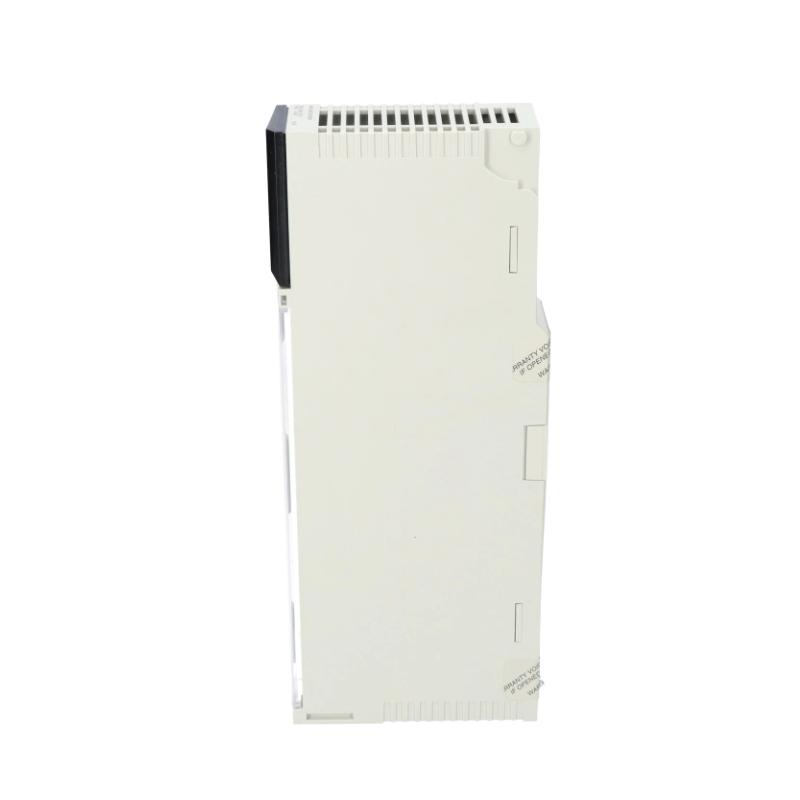

140XSM40020-1 140XSM40020-4 140XSM40020-2 140XSM40020-3

The Schneider 140XSM40020 Modular Communication and Control Interface is engineered for reliable, high-speed communication in advanced industrial automation systems. Optimized for PLC networking and distributed I/O applications, this module ensures real-time monitoring, precise process control, and robust data exchange. Built with industrial-grade durability and broad system compatibility, it simplifies integration, reduces downtime, and enhances operational efficiency across manufacturing, utilities, and energy sectors.

Technical Specifications

Feature	Specification
Module Type	Communication & Control Module
Model Number	140XSM40020
Dimensions (L × W × H)	145 mm × 44 mm × 115 mm
Weight	0.56 kg
Power Supply	24 V DC
Network Compatibility	Modbus RTU, Profibus DP, Ethernet/IP
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C
Certifications	CE, UL, RoHS
Mounting	DIN Rail / Panel Mountable

Recommended Related Models

Schneider 140XBP01600 – High-speed I/O expansion module
Schneider 140XBP01000 – Remote communication interface
Schneider 140NOL91800C – Digital output module for complex automation systems

Popular Schneider Models

Schneider TSX P57C024M – Advanced PLC communication module
Schneider TSXPBY100 – Fieldbus interface for distributed I/O
Schneider TSXPCX1031-C – Industrial networking module for control systems

Applications

High-speed PLC and industrial automation networks
Real-time communication between Schneider PLCs and distributed I/O devices
SCADA and HMI integration for process monitoring and control
Automation in manufacturing, energy, and utilities

Advantages

Reliable Operation: Built for continuous performance in demanding industrial environments
Seamless Integration: Works with Schneider and third-party PLC systems
Compact and Efficient: Optimizes panel space while providing robust communication capabilities
High-Speed Data Transfer: Ensures accurate, real-time monitoring and control
Certified Quality: CE, UL, and RoHS compliance guarantees safe and trusted deployment

Technical FAQs

Which networks are supported by the 140XSM40020?
Modbus RTU, Profibus DP, and Ethernet/IP.
Can it be mounted on a DIN rail?
Yes, supports both DIN rail and panel mounting.
What is the operating temperature range?
0°C to 60°C.
Is it compatible with Schneider PLCs?
Yes, fully compatible with most Schneider automation systems.
What are the module’s dimensions and weight?
145 mm × 44 mm × 115 mm; 0.56 kg.
What power supply does it require?
24 V DC.
Can it operate in harsh industrial environments?
Yes, although specific hazardous area certifications should be verified.
Does it support remote monitoring?
Yes, real-time communication and system supervision are supported.
Which certifications does the module hold?
CE, UL, RoHS.
How is data reliability ensured?
Advanced error-checking protocols and industrial communication standards guarantee accurate and secure data transfer.
