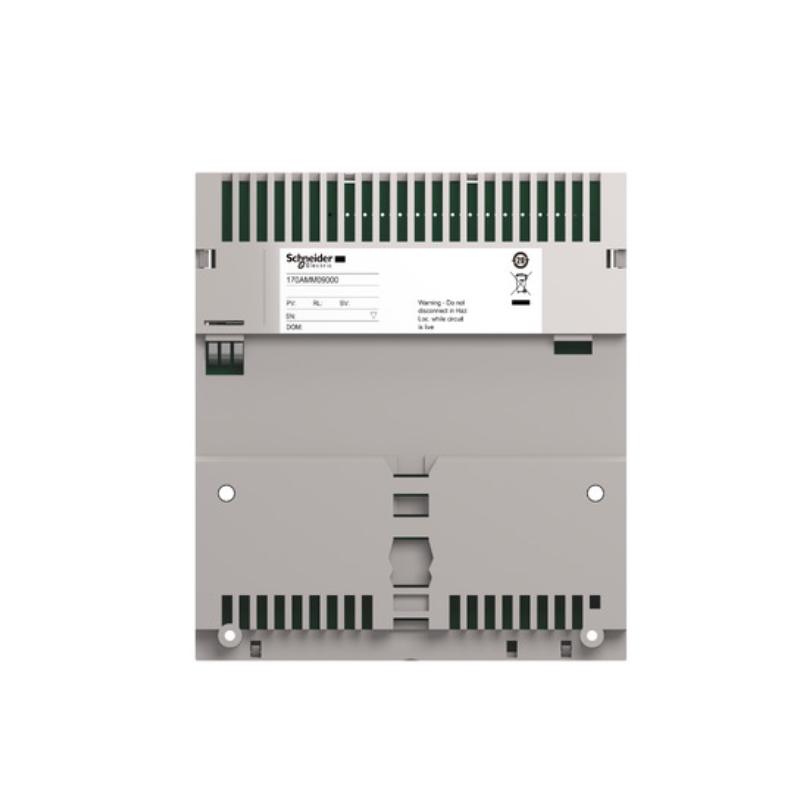

Name: Schneider 170AMM09000 High-Performance Modular Power Supply Module for Industrial Automation Systems
Brand: Schneider PLC
SKU: 6823
Availability: InStock
Rating: 5.0 (1 reviews)

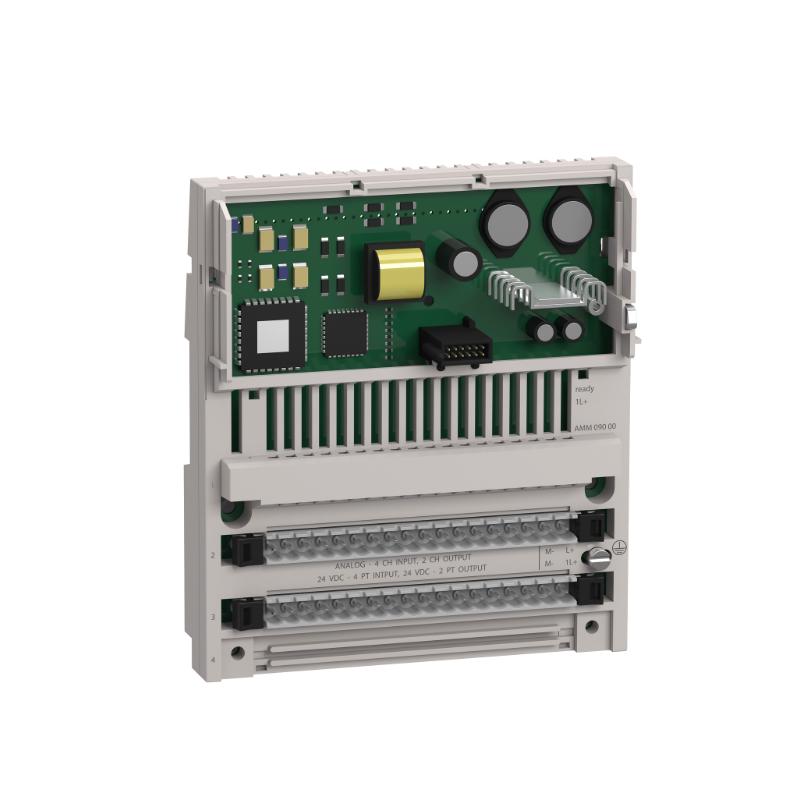

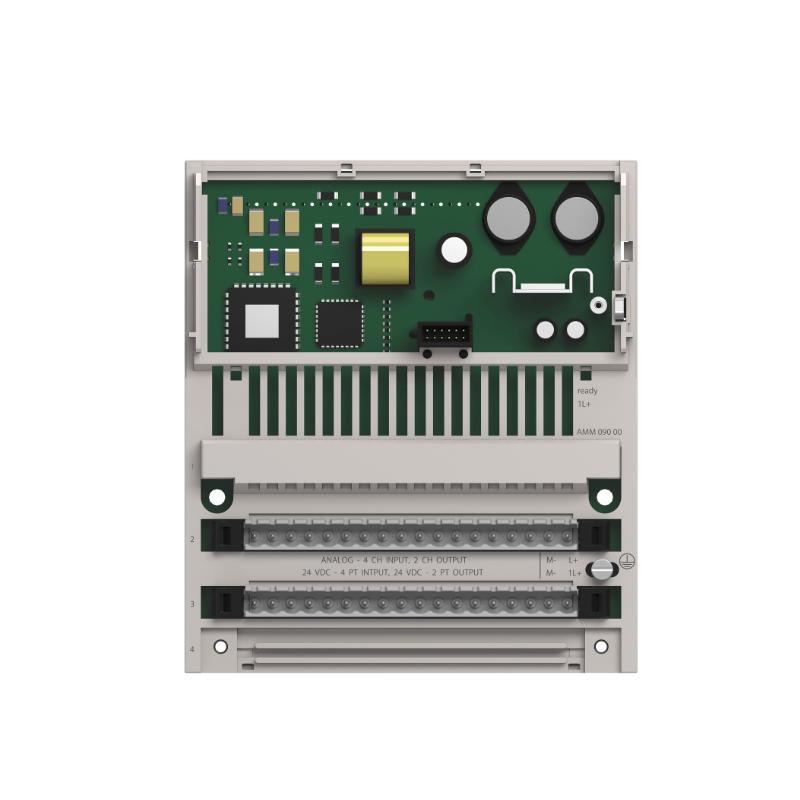

170AMM09000-1 170AMM09000-2 170AMM09000-3

The Schneider 170AMM09000 Power Supply Module is engineered to deliver reliable, efficient, and stable power to industrial automation systems. Compatible with a wide range of Schneider PLCs and modular I/O systems, this module ensures consistent voltage output, robust protection against electrical disturbances, and enhanced system uptime. Designed for high-demand industrial applications, it is ideal for manufacturing lines, energy facilities, and utility infrastructures that require uninterrupted performance.

Technical Specifications

Feature	Specification
Module Type	Power Supply Module
Model Number	170AMM09000
Dimensions (L × W × H)	160 mm × 50 mm × 120 mm
Weight	0.85 kg
Input Voltage	100–240 V AC, 50/60 Hz
Output Voltage	24 V DC
Output Current	9 A
Efficiency	>90%
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Protection	Overload, short circuit, overvoltage, thermal protection
Mounting	DIN Rail / Panel Mountable
Certifications	CE, UL, RoHS

Recommended Related Models

Schneider 170AMC90010 – Compact power supply module with advanced diagnostics
Schneider 140XBP01600 – High-speed I/O expansion module
Schneider 140XSM01000 – Modular communication and control interface

Popular Schneider Models

Schneider 170AMS90000 – Standard industrial power supply
Schneider 170AMM90020 – High-efficiency modular power supply
Schneider 140XTS00209 – Temperature and sensor module for process control

Applications

Supplying stable power to PLCs and distributed I/O systems
Industrial automation and process control lines
Energy and utility monitoring systems
Factory floor automation with critical uptime requirements

Advantages

High Reliability: Stable and continuous voltage output for sensitive industrial equipment
Efficient Performance: Over 90% efficiency reduces energy consumption and heat generation
Comprehensive Protection: Built-in overload, short-circuit, and thermal protection
Seamless Integration: Fully compatible with Schneider PLCs and modular automation systems
Durable Design: Rugged industrial-grade construction ensures long-term performance

Technical FAQs

What is the output voltage of the 170AMM09000?
24 V DC.
What is the maximum output current?
9 A.
What input voltage range does it support?
100–240 V AC, 50/60 Hz.
Can it be mounted on a DIN rail?
Yes, supports both DIN rail and panel mounting.
What protection features are included?
Overload, short-circuit, overvoltage, and thermal protection.
What are the module’s dimensions and weight?
160 mm × 50 mm × 120 mm; 0.85 kg.
What is the operating temperature range?
0°C to 55°C.
Which certifications does it hold?
CE, UL, RoHS.
Is it compatible with Schneider PLCs?
Yes, designed for seamless integration with Schneider automation systems.
How does it improve system reliability?
Provides stable, efficient, and protected power supply to critical industrial automation systems, minimizing downtime and enhancing operational performance.
