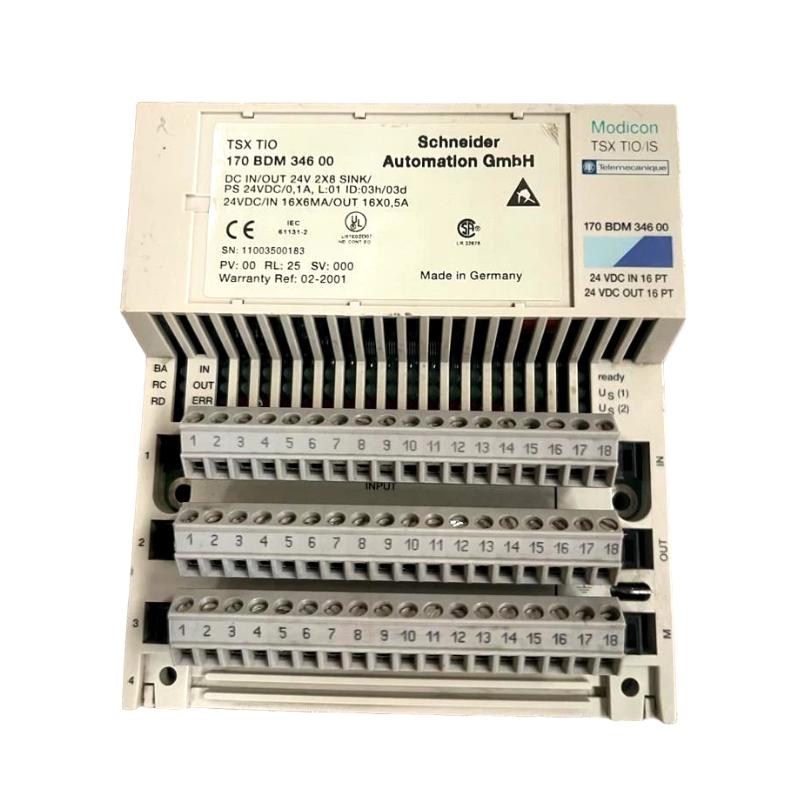

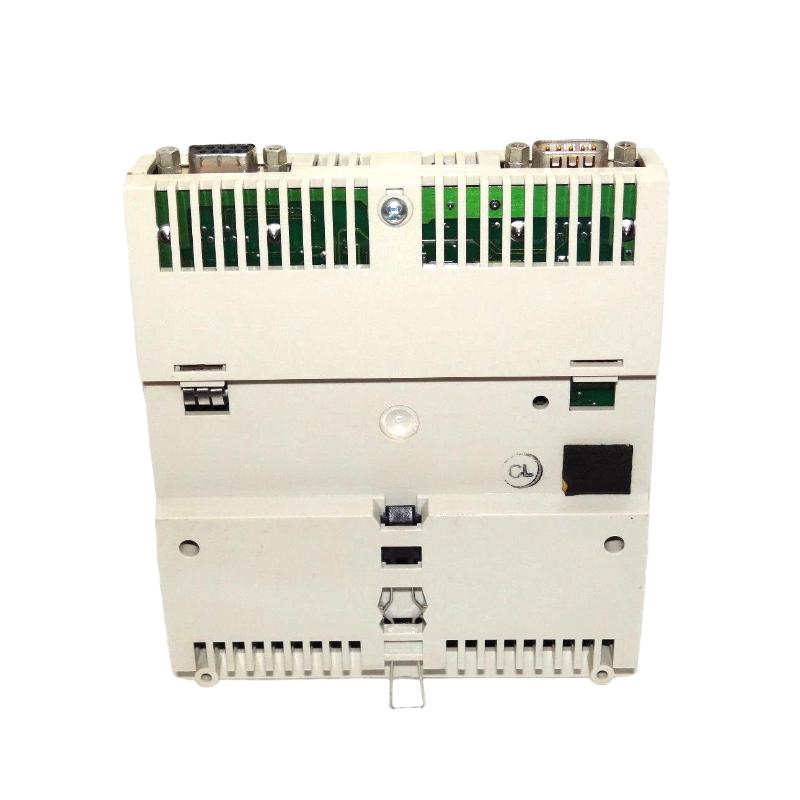

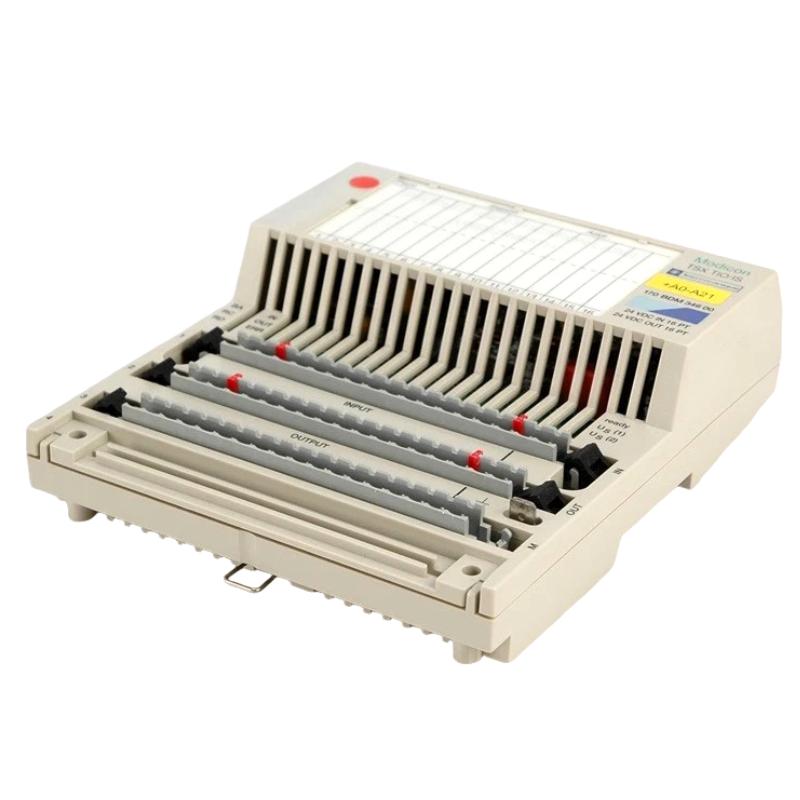

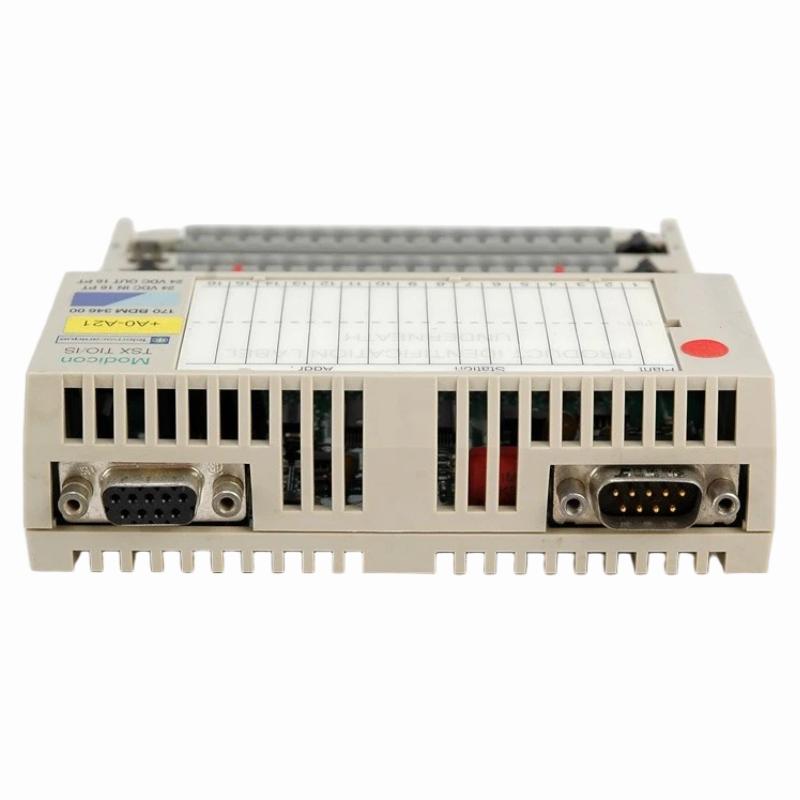

The Schneider 170BDM34600 Digital Output Module is engineered for high-performance, reliable digital control in modern industrial automation systems. Designed to integrate seamlessly with Schneider PLCs and modular I/O architectures, this module offers rapid and stable switching of digital outputs, ensuring accurate, uninterrupted operations in demanding manufacturing, energy, and utility applications. Its compact, high-density design optimizes panel space while supporting complex control requirements.
Technical Specifications
| Feature | Specification |
|---|---|
| Module Type | Digital Output Module |
| Model Number | 170BDM34600 |
| Dimensions (L × W × H) | 125 mm × 50 mm × 120 mm |
| Weight | 0.67 kg |
| Number of Outputs | 32 digital outputs |
| Output Type | 24 V DC |
| Switching Capacity | 0.5 A per channel |
| Isolation | Optically isolated channels |
| Response Time | <1 ms |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Mounting | DIN Rail / Panel Mountable |
| Certifications | CE, UL, RoHS |
