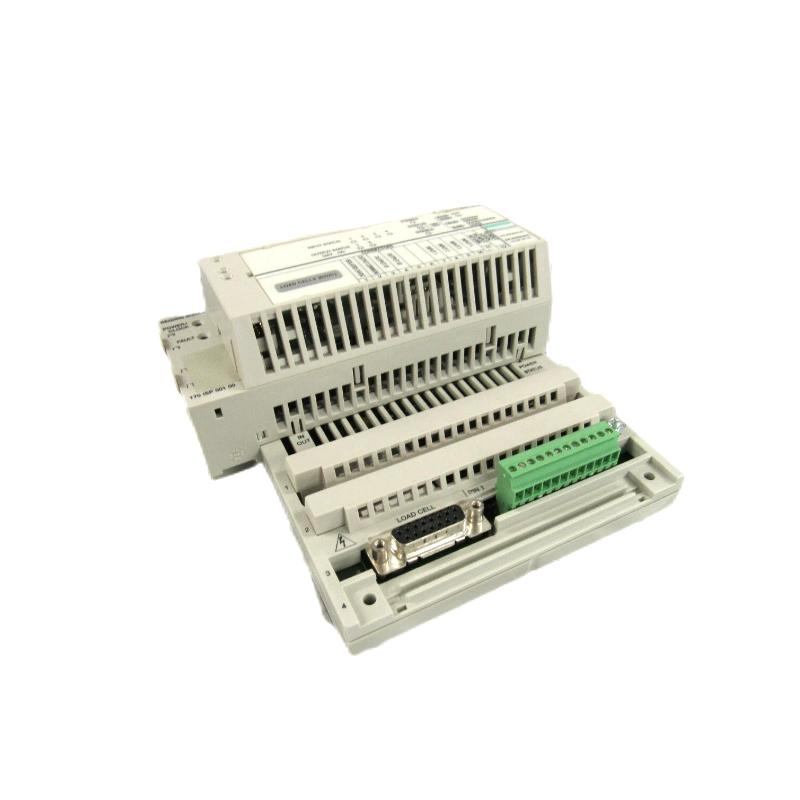

Name: Schneider 170ISP00100 Industrial Signal Processing Module for High-Speed Data Acquisition and Precise Control in Automation Systems
Brand: Schneider PLC
SKU: 6836
Availability: InStock
Rating: 5.0 (1 reviews)

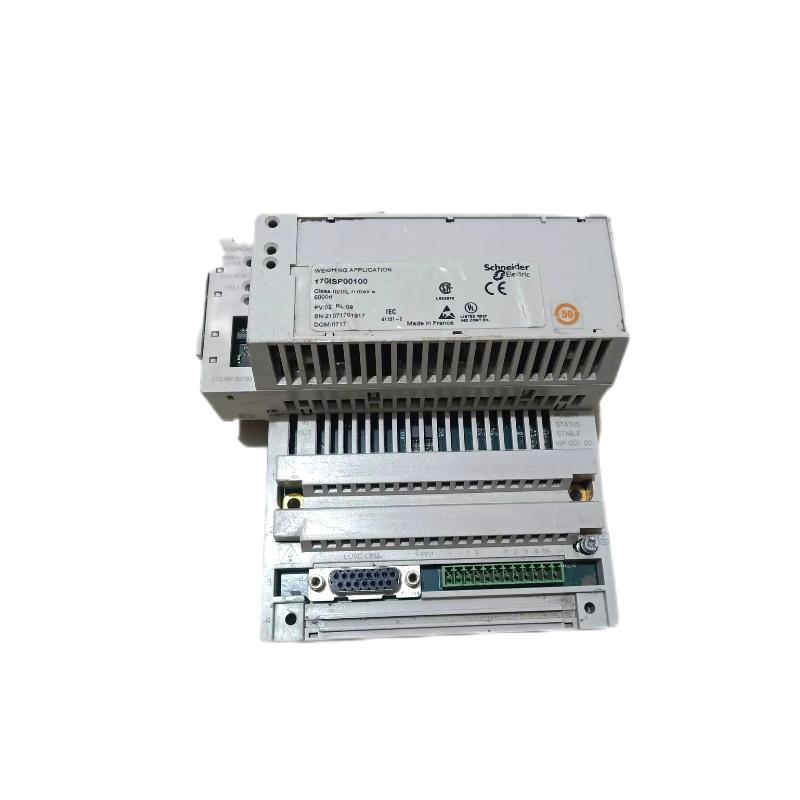

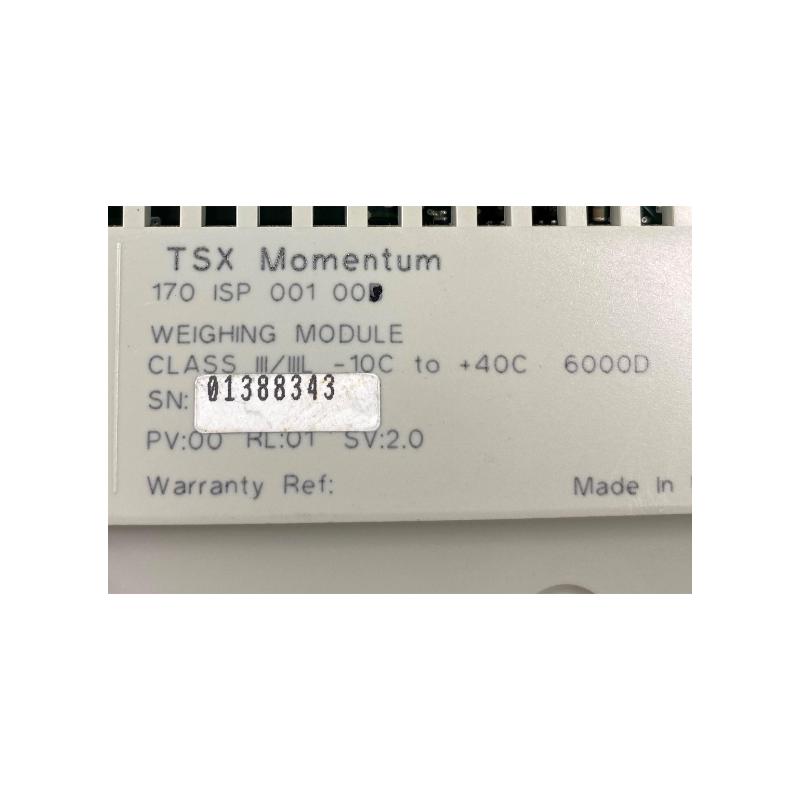

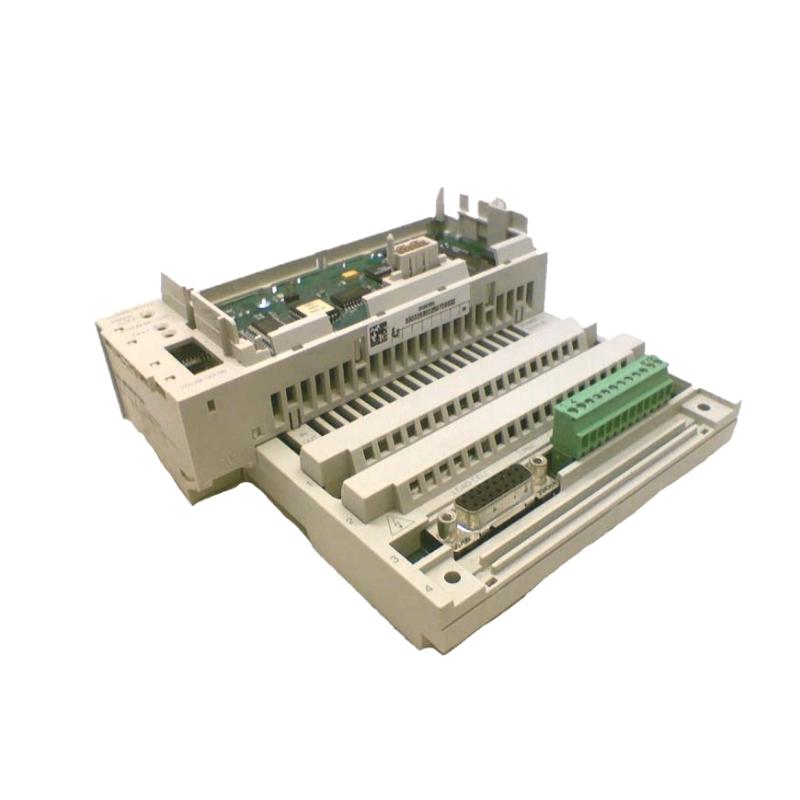

170ISP00100-5 170ISP00100-2 170ISP00100-1 170ISP00100-3

The Schneider 170ISP00100 Signal Processing Module is engineered to deliver fast, accurate, and reliable processing of analog and digital signals in industrial automation applications. Designed for seamless integration with Schneider PLCs and modular I/O systems, this module ensures real-time data acquisition, precise control, and robust communication across complex industrial networks. Ideal for manufacturing, energy, and utility applications, it enhances operational efficiency, reduces downtime, and optimizes overall system performance.

Technical Specifications

Feature	Specification
Module Type	Industrial Signal Processing Module
Model Number	170ISP00100
Dimensions (L × W × H)	155 mm × 55 mm × 125 mm
Weight	0.87 kg
Input Channels	8 analog inputs / 8 digital inputs
Output Channels	8 digital outputs
Signal Types	0–10 V, 4–20 mA, 24 V DC
Response Time	<2 ms
Communication Protocols	Modbus RTU, Profibus DP, DeviceNet
Isolation	Optically isolated channels for input and output
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Mounting	DIN Rail / Panel Mountable
Certifications	CE, UL, RoHS

Recommended Related Models

Schneider 170INT11000 – Industrial interface module for high-precision data acquisition
Schneider 170BNI67100 – Network input module for digital signal acquisition
Schneider 170BNO67100 – Network output module for reliable actuation

Popular Schneider Models

Schneider 140XCP51000 – PLC communication module
Schneider 140XTS10215 – Temperature and sensor module
Schneider 170AMM09000 – Modular power supply module

Applications

Real-time processing of analog and digital signals in industrial automation
Integration with PLCs and SCADA systems for process monitoring and control
Factory automation, energy management, and utility operations
Reliable signal conversion and networked I/O communication

Advantages

High-Speed Processing: Response time under 2 milliseconds for critical control tasks
Versatile Signal Handling: Supports analog (0–10 V, 4–20 mA) and digital signals
Protected Channels: Optically isolated inputs and outputs for reliable operation
Seamless Integration: Compatible with Schneider PLCs and modular automation platforms
Industrial-Grade Quality: CE, UL, and RoHS certified for trusted deployment in demanding environments

Technical FAQs

How many input and output channels does 170ISP00100 have?
8 analog inputs, 8 digital inputs, and 8 digital outputs.
Which signal types are supported?
0–10 V, 4–20 mA analog signals, and 24 V DC digital signals.
Which communication protocols are supported?
Modbus RTU, Profibus DP, and DeviceNet.
What is the module’s response time?
Less than 2 milliseconds.
Are the I/O channels isolated?
Yes, both input and output channels are optically isolated.
Can it be mounted on a DIN rail?
Yes, supports both DIN rail and panel mounting.
What are the module’s dimensions and weight?
155 mm × 55 mm × 125 mm; 0.87 kg.
What is the operating temperature range?
0°C to 55°C.
Which certifications does it hold?
CE, UL, RoHS.
How does it enhance industrial automation reliability?
Provides fast, precise, and protected signal processing for analog and digital inputs/outputs, minimizing downtime and supporting real-time control in industrial systems.
