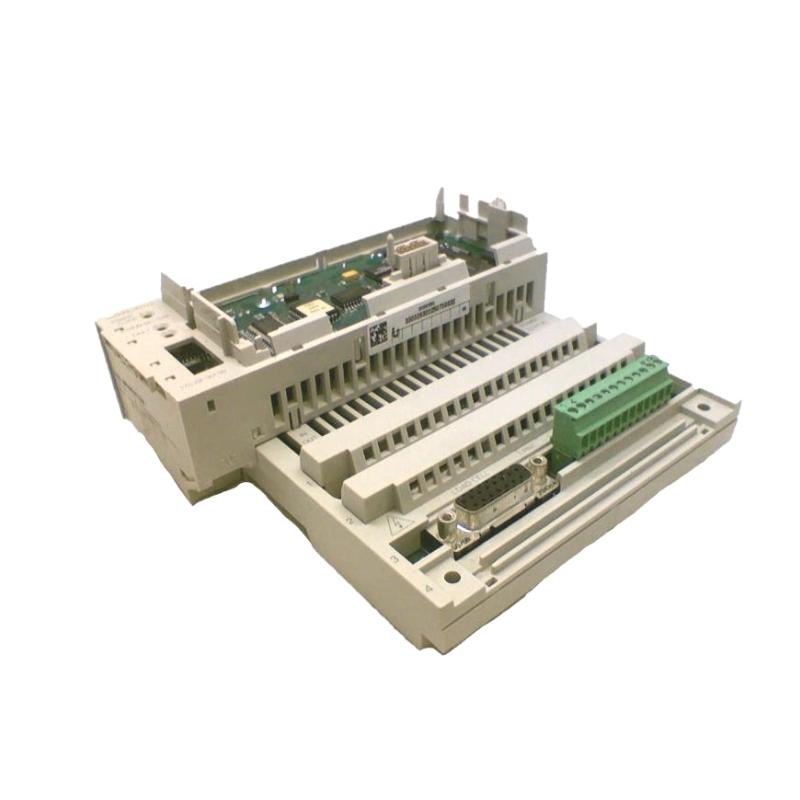

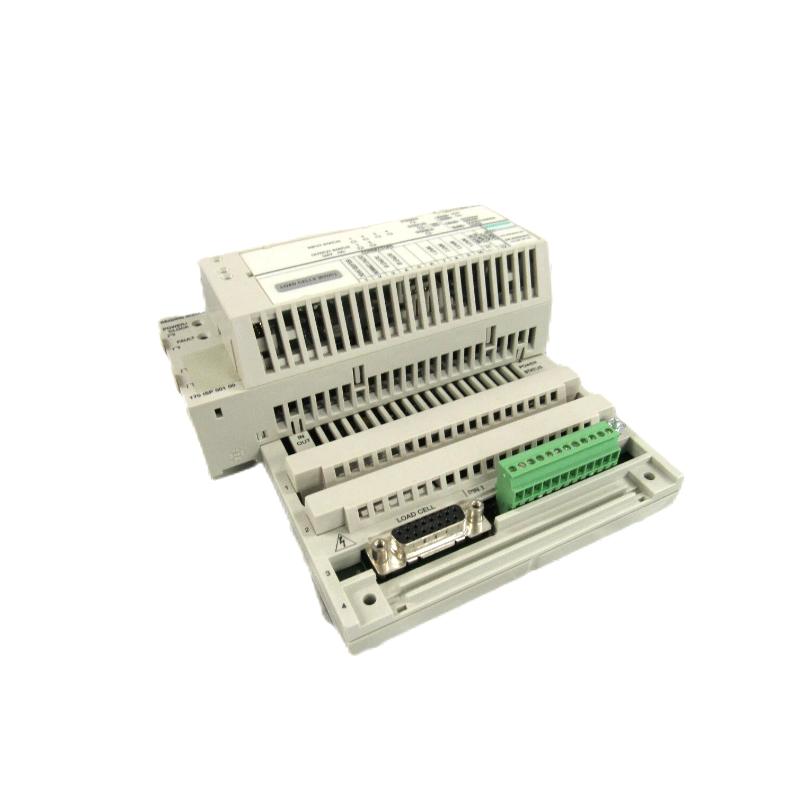

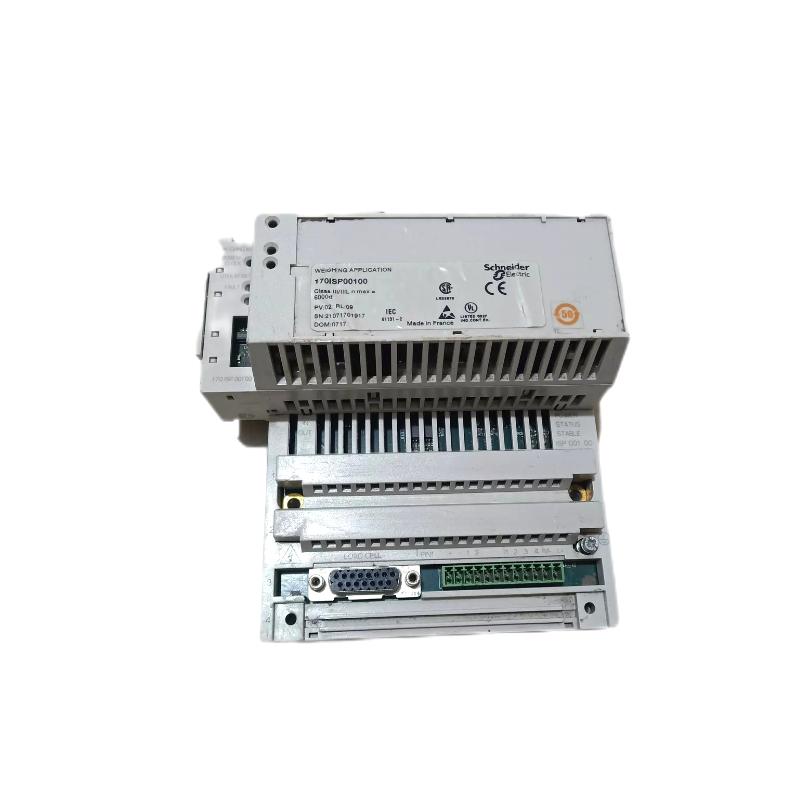

The Schneider 170ISP00100 is your go-to solution for high-performance signal processing in industrial automation systems. Engineered for speed, precision, and reliability, this module seamlessly integrates with Schneider PLCs and modular I/O systems to provide real-time signal acquisition and processing. Whether you’re running complex manufacturing lines or critical utility operations, the 170ISP00100 ensures minimal downtime, accurate data transfer, and unmatched operational efficiency.
Key Specifications
| Feature | Specification |
|---|---|
| Module Type | Industrial Signal Processing Module |
| Model Number | 170ISP00100 |
| Dimensions (L × W × H) | 155 mm × 55 mm × 125 mm |
| Weight | 0.87 kg |
| Input Channels | 8 analog + 8 digital |
| Output Channels | 8 digital |
| Supported Signals | 0–10 V, 4–20 mA, 24 V DC |
| Response Time | <2 ms |
| Communication | Modbus RTU, Profibus DP, DeviceNet |
| Isolation | Optically isolated I/O channels |
| Mounting | DIN Rail / Panel Mountable |
| Certifications | CE, UL, RoHS |
Why Choose 170ISP00100?
- Rapid Data Processing: Under 2 ms response time for fast, real-time control
- Versatile Signal Handling: Accepts analog and digital signals, ideal for mixed I/O applications
- Safe and Reliable: Optically isolated channels protect your system from electrical faults
- Seamless Integration: Plug-and-play compatibility with Schneider PLCs and modular I/O systems
- Industrial Durability: Certified for harsh industrial environments with CE, UL, and RoHS compliance
