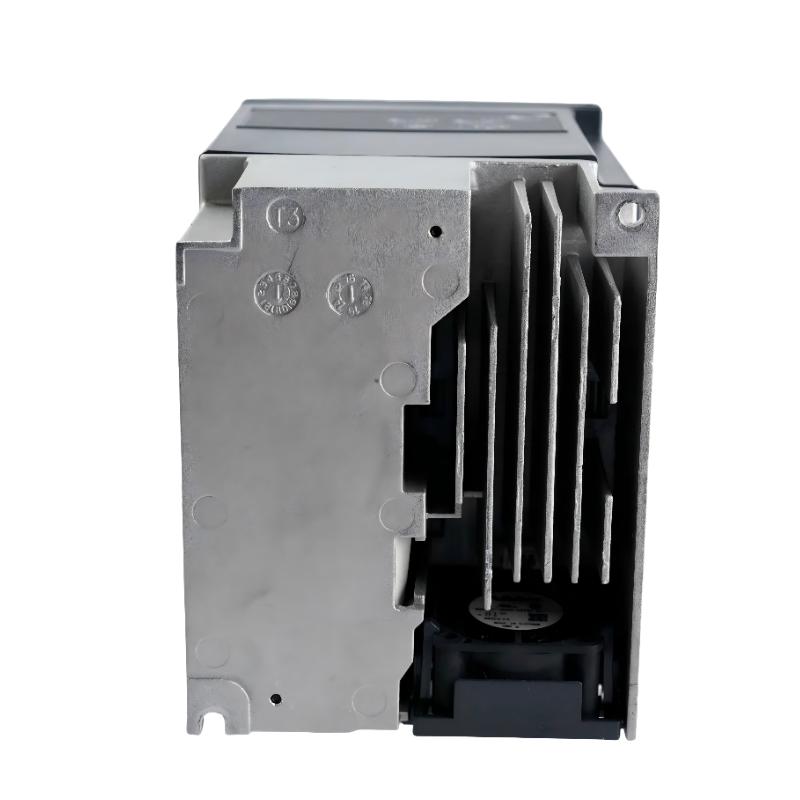

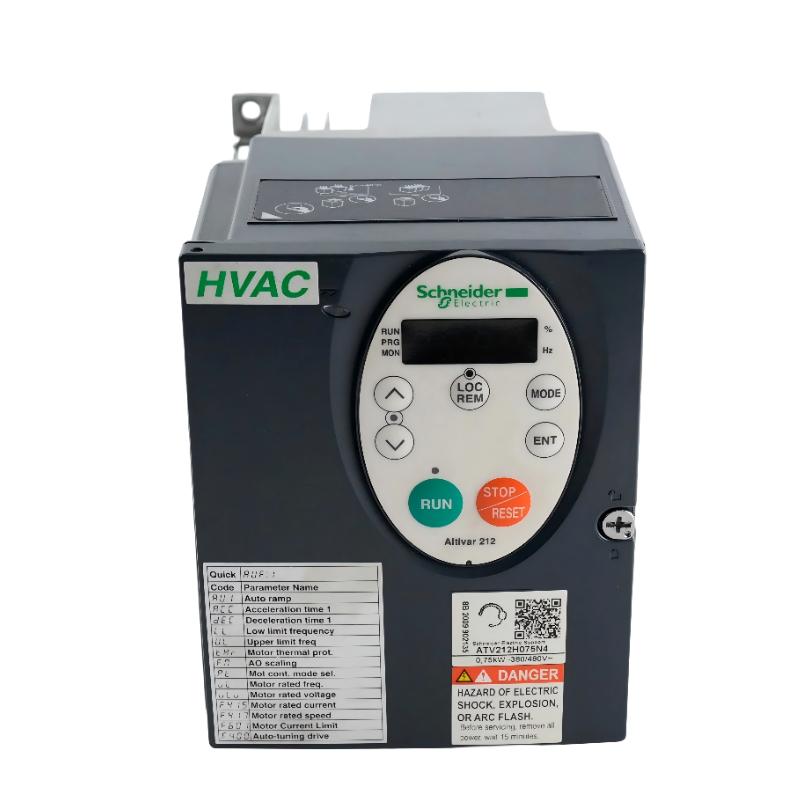

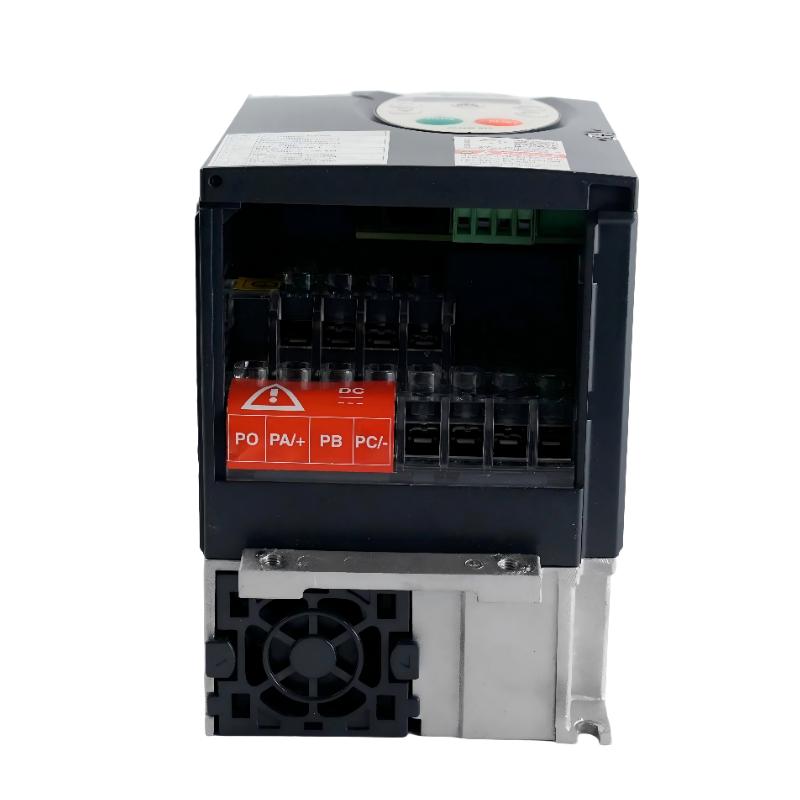

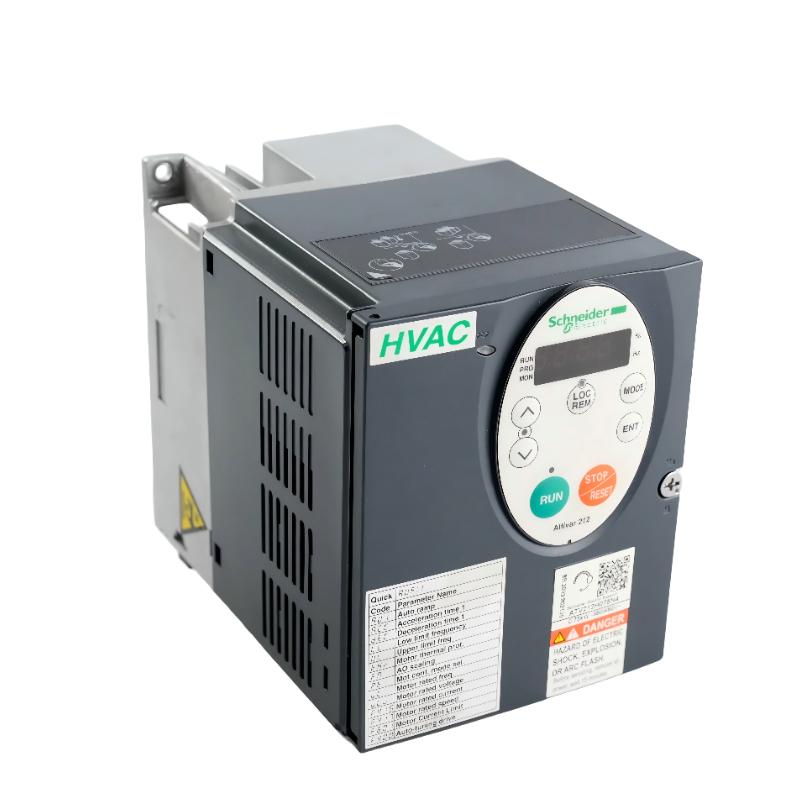

The Schneider ATV212H075N4 Variable Frequency Drive (VFD) is designed to deliver precise, reliable, and energy-efficient control of three-phase AC motors. Part of Schneider’s Altivar 212 series, this VFD offers compact design, robust performance, and advanced motor protection features. Ideal for pumps, fans, conveyors, and other industrial applications, the ATV212H075N4 reduces energy consumption, improves system uptime, and provides seamless integration with Schneider automation platforms.
Technical Specifications
| Feature | Specification |
|---|---|
| Module Type | Variable Frequency Drive (VFD) |
| Model Number | ATV212H075N4 |
| Dimensions (L × W × H) | 150 mm × 110 mm × 175 mm |
| Weight | 3.1 kg |
| Motor Power | 7.5 kW |
| Input Voltage | 380–480 V AC, 3-phase |
| Output Voltage | 0–480 V AC |
| Output Current | 14.4 A |
| Output Frequency | 0–500 Hz |
| Control Modes | V/f Control, Sensorless Vector Control |
| Communication | Modbus RTU, CANopen, optional Ethernet/IP |
| Protection Features | Overload, Short Circuit, Overvoltage, Undervoltage, Phase Loss |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Mounting | Wall or Panel Mountable |
| Certifications | CE, UL, RoHS |
