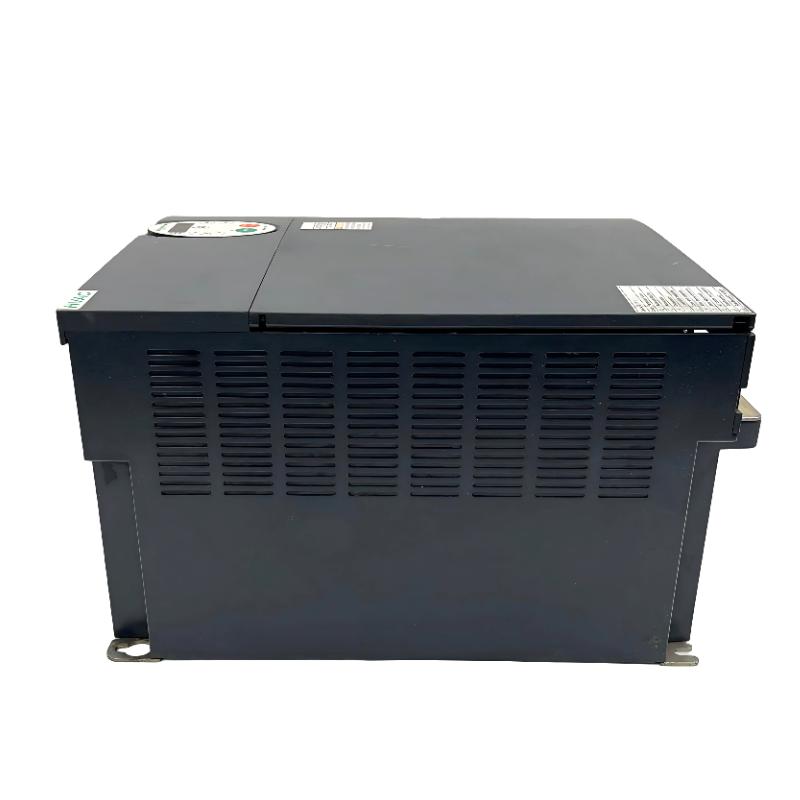

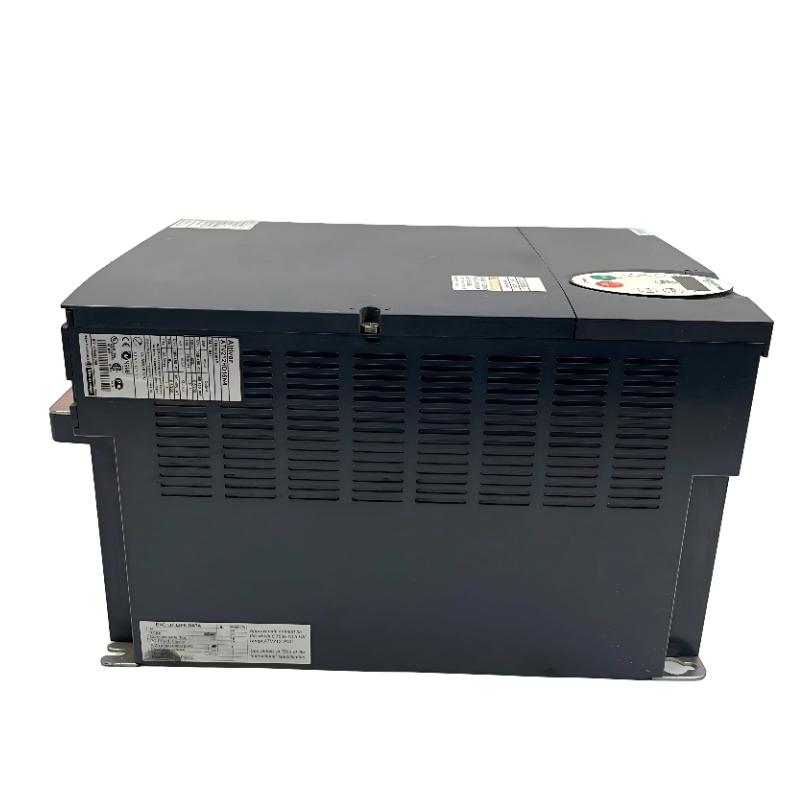

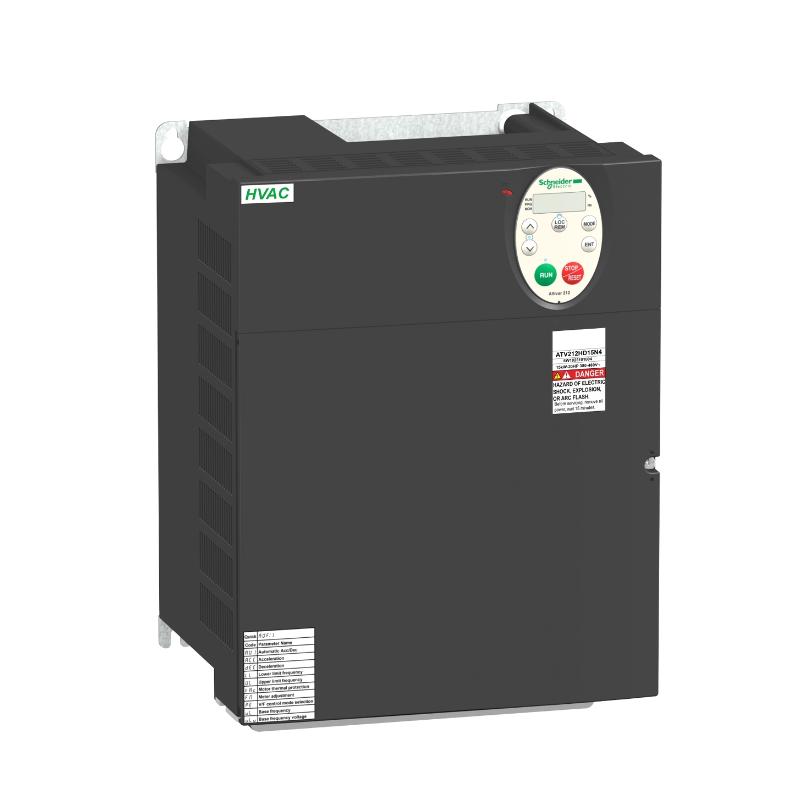

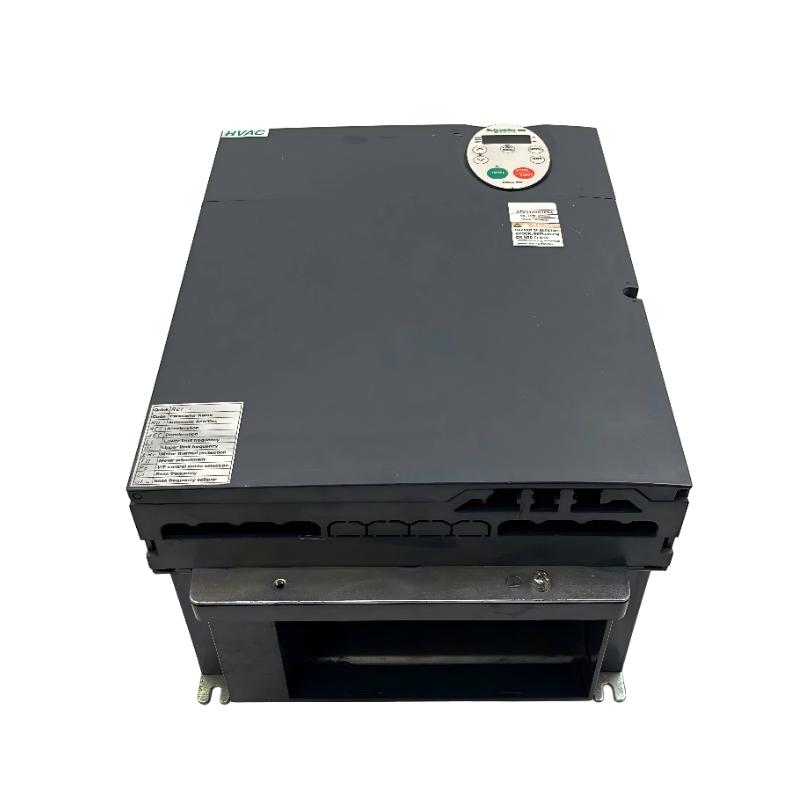

The Schneider ATV212HD15N4 Variable Frequency Drive (VFD) is a powerful and energy-efficient solution engineered for precise motor control in industrial and HVAC applications. As part of the Altivar 212 series, it is optimized for pumps, fans, and compressors, delivering smooth speed regulation, reduced energy consumption, and long-term operational reliability. Designed with integrated communication and protection features, this drive enables seamless system integration while minimizing downtime and maintenance costs.
Technical Specifications
| Feature | Specification |
|---|---|
| Module Type | Variable Frequency Drive (VFD) |
| Model Number | ATV212HD15N4 |
| Dimensions (L × W × H) | 330 mm × 245 mm × 190 mm |
| Weight | 4.2 kg |
| Motor Power | 15 kW (20 HP) |
| Input Voltage | 380–480 V AC, 3-phase |
| Supply Voltage Range | 323–528 V AC |
| Output Current | 30.5 A |
| Output Frequency | 0.5–200 Hz |
| Control Modes | V/f Control, Sensorless Vector Control |
| Communication Protocols | Modbus, BACnet, Metasys N2, Apogee FLN |
| Protection Rating | IP21 |
| EMC Filter | Built-in (Class C2/C3) |
| Operating Temperature | -10°C to 50°C |
| Mounting | Wall / Panel Mountable |
| Certifications | CE, UL, RoHS |
