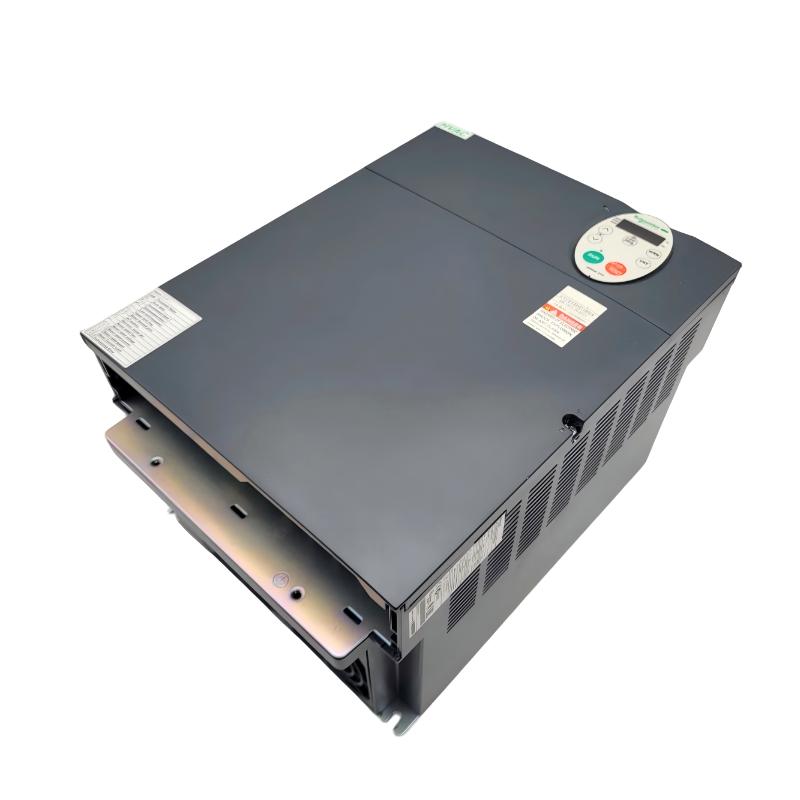

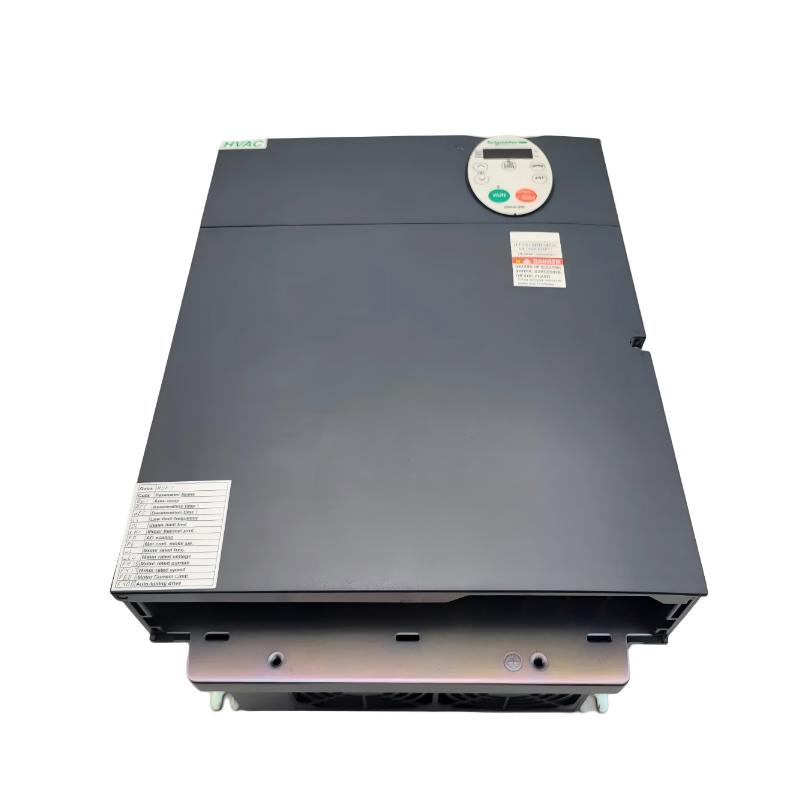

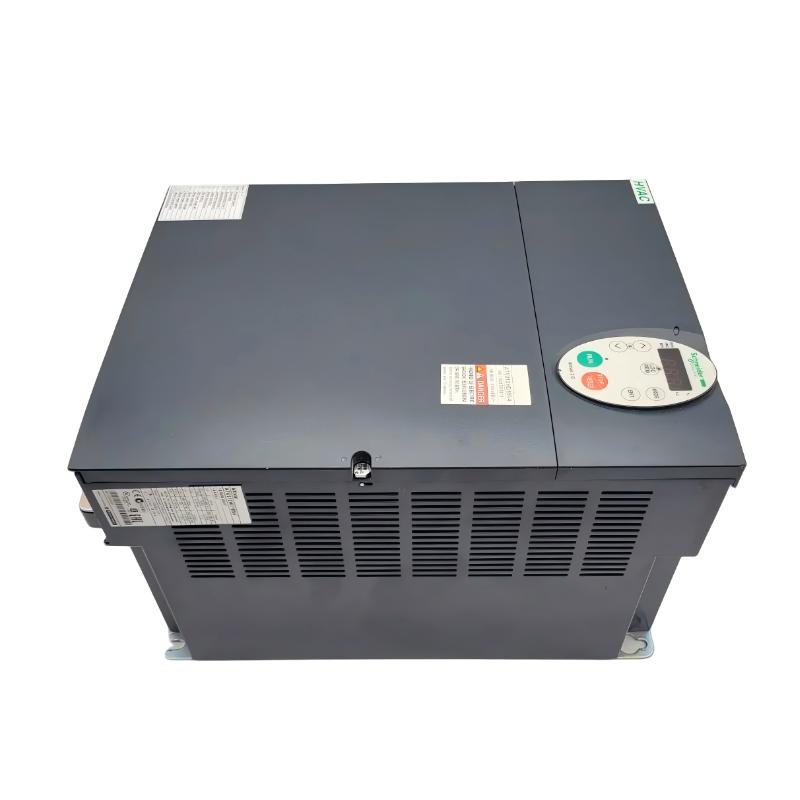

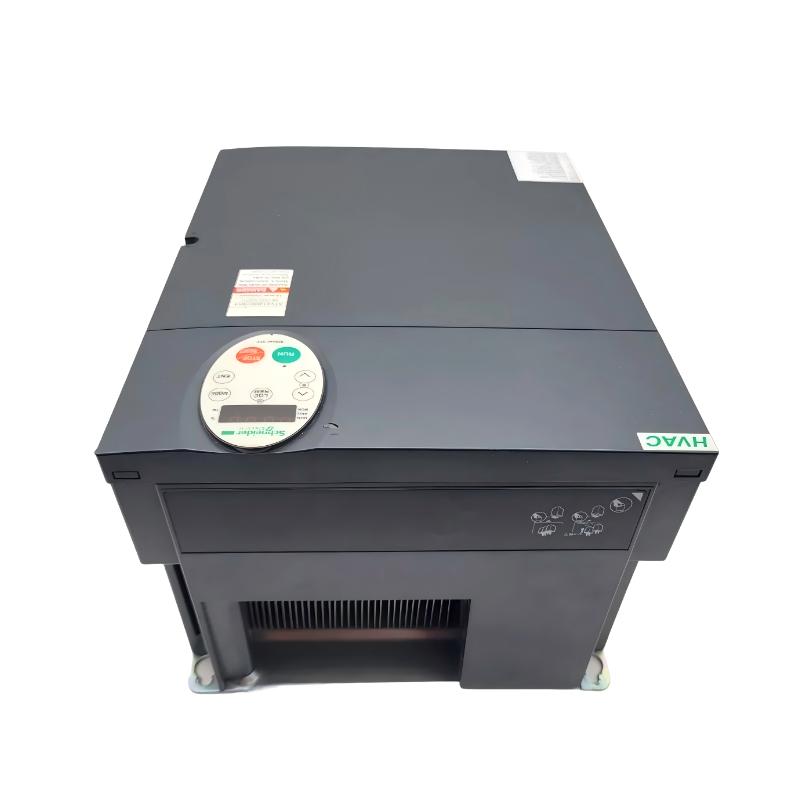

Boost your industrial motor control with the Schneider Electric Altivar 212 series. The ATV212HD18N4 is designed to provide smooth, energy‑efficient speed regulation for three-phase asynchronous motors up to 18.5 kW (25 hp). Perfect for HVAC, pumping, and fluid management applications, this VFD offers rugged reliability, integrated energy-saving features, and multiple communication options. Its intuitive interface ensures fast setup, while advanced protection functions safeguard your motors, making it a smart investment for commercial and industrial installations seeking long-term performance and efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 212 |
| Rated Power | 18.5 kW (25 hp) |
| Voltage Range | 380 – 480 V AC (allowable 323 – 528 V) |
| Phase | 3‑phase |
| Output Current | 27.8 A @ 480 V / 34.8 A @ 380 V |
| Output Frequency | 0.5 – 200 Hz |
| EMC Filter | Integrated Class C2 |
| IP Rating | IP21 |
| Communication Protocols | Modbus, BACnet, LonWorks, APOGEE FLN, METASYS N2 |
| Dimensions (W × H × D) | 245 mm × 330 mm × 190 mm |
| Weight | 11.65 kg |
| Certifications | IEC/EN 61800‑5‑1, IEC/EN 61800‑3, CE, UL, CSA |
| Mounting Position | Vertical (±10°) |
| Protection Functions | Overcurrent, overvoltage, thermal, phase loss |
