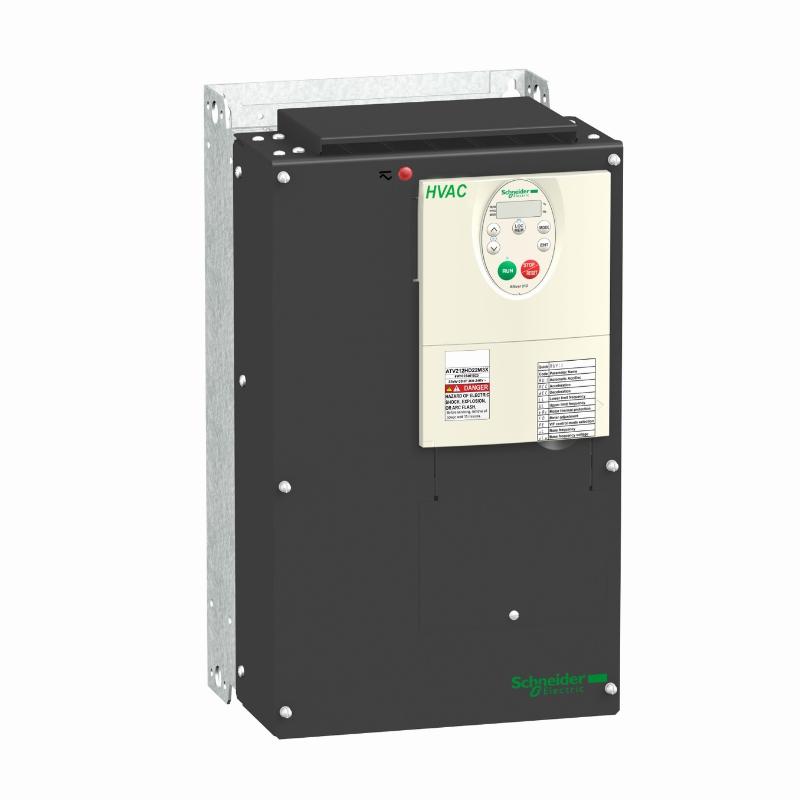

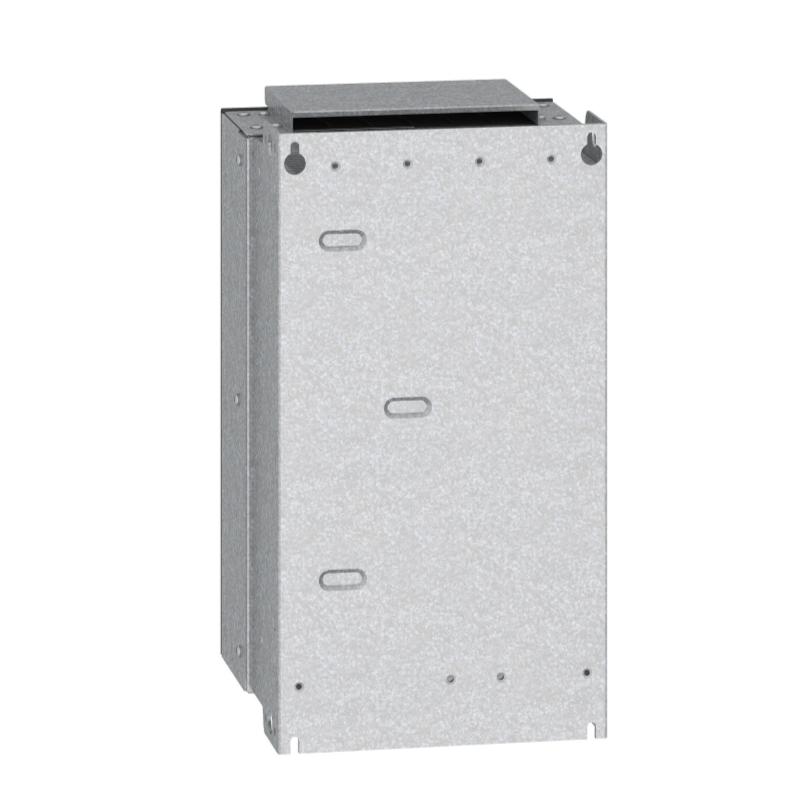

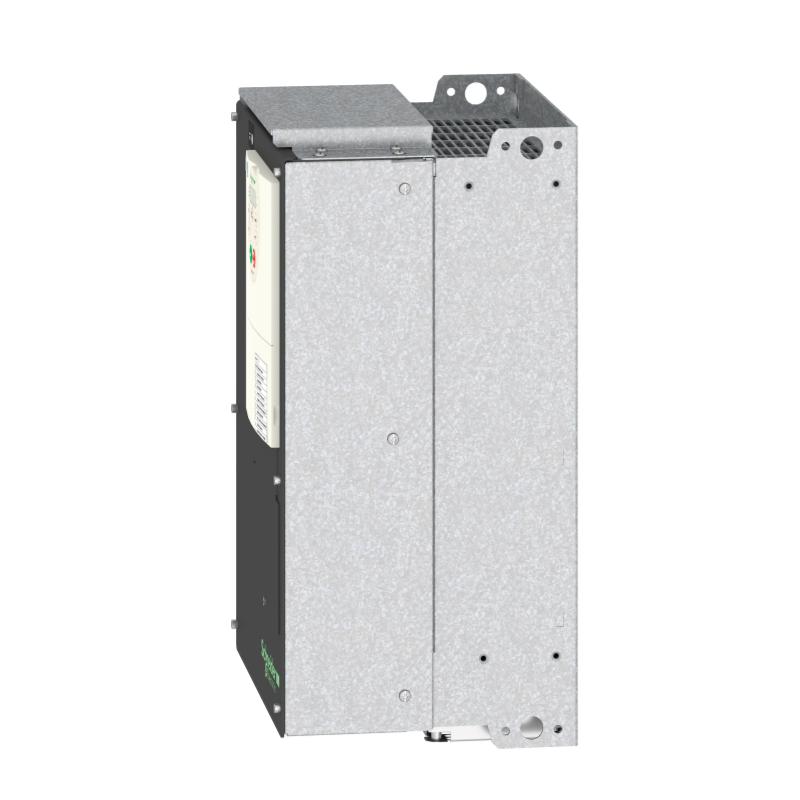

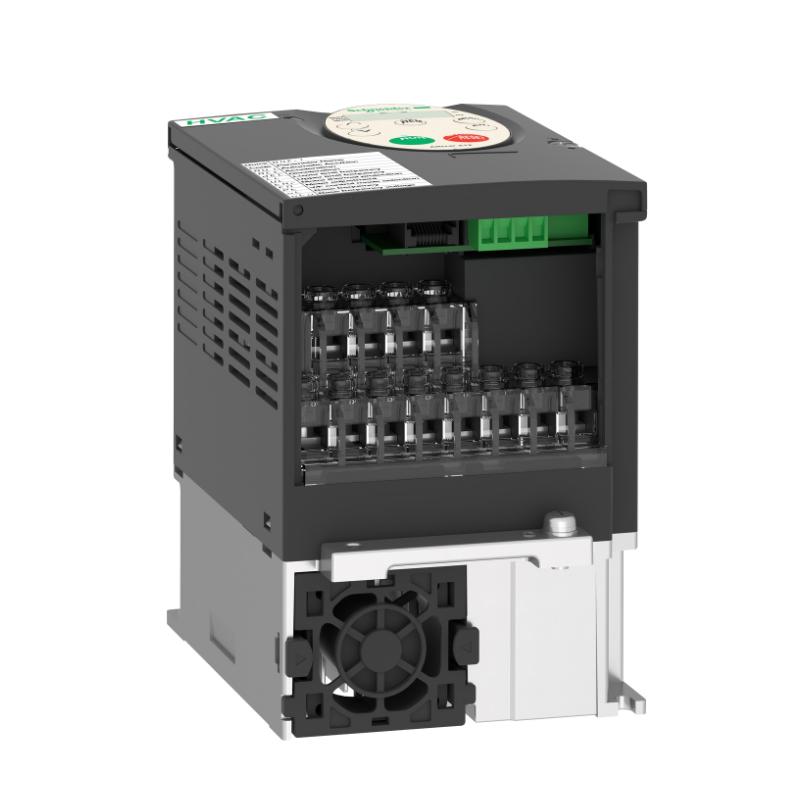

The ATV212HD22N4 from Schneider Electric is a robust and energy‑efficient three‑phase variable frequency drive engineered for precise motor speed control in demanding industrial and commercial applications. Built on the trusted Altivar 212 platform, it delivers reliable performance for asynchronous motors up to 22 kW (30 hp), while reducing operational costs and enhancing system uptime. With an integrated EMC filter, versatile communication, and strong protective features, this drive is a premium choice for HVAC systems, pumping stations, and advanced automation environments where performance and efficiency are paramount.

Technical Specifications

Specification	Details
Product Type	Variable Frequency Drive (VFD)
Series	Altivar 212
Rated Power	22 kW (30 hp)
Rated Voltage Range	380 – 480 V AC (323 – 528 V)
Phase	3‑phase
Continuous Output Current	43.5 A @ 380 V
Max Line Current	~41.6 A @ 380 V
Output Frequency Range	0.5 – 200 Hz
EMC Filter	Integrated Class C2
IP Rating	IP21 (indoor panel mounting)
Communication Protocols	Modbus, BACnet, APOGEE FLN, METASYS N2, LonWorks (optional)
Dimensions (W × H × D)	240 mm × 420 mm × 214 mm
Weight	~26.4 kg
Certifications	IEC/EN 61800‑5‑1, IEC/EN 61800‑3, CE, UL, CSA, C‑Tick, NOM
Mounting Position	Vertical (+/‑10°)
Protection Features	Overcurrent, thermal, phase loss, over/undervoltage

Recommended Related Models

ATV212HD11N4 – Lower power Altivar 212 model for smaller installations
ATV212HD18N4 – Ideal for mid‑range HVAC and pumping systems
ATV212HD55N4 – Higher power option for larger motor loads
ATV212HD37N4 – Robust choice for heavy duty applications

Popular Allen Bradley Models

For reference in automation design and comparison:

Allen‑Bradley PowerFlex 525 Series
Allen‑Bradley PowerFlex 753 Series
Allen‑Bradley PowerFlex 755 Series
Allen‑Bradley Kinetix® Drives
These drives are frequently selected alongside Schneider Altivar devices for scalable motor control solutions.

Applications

The ATV212HD22N4 excels in a wide array of real‑world automation settings:

HVAC Systems: Precision fan speed control, reduced energy draw, smooth air management.
Pumping & Fluid Movement: Efficient pressure regulation in water and chemical pumping systems.
Building Automation: Seamless integration with BMS via common industrial protocols.
Process Control: Reliable speed handling for conveyors, mixers, and process machinery.

Advantages

Eco‑Conscious Energy Savings: Advanced eco‑design cuts energy use significantly versus conventional drives.
All‑in‑One Communication: Native support for Modbus, BACnet, and other key protocols reduces accessory needs.
Integrated EMC Filtering: Minimizes electromagnetic interference without external additions.
Comprehensive Protection: Built‑in safeguards extend motor and drive life.
Compact Panel‑Friendly Design: Space‑efficient with clear access points for installation and maintenance.

Technical FAQs

What motor types does this drive support?
Designed for three‑phase asynchronous induction motors.
What is the maximum power rating?
Up to 22 kW / 30 hp.
Does it include an EMC filter?
Yes, an integrated Class C2 EMC filter is standard.
Which communication protocols are available?
Modbus, BACnet, APOGEE FLN, METASYS N2; LonWorks optional.
Can it be panel mounted?
Yes, vertical installation with ±10° tolerance.
What is the IP rating?
IP21 for indoor control cabinet environments.
What voltage range is supported?
380 – 480 V AC with standard tolerances.
Does it help reduce operating costs?
Yes, its energy‑efficient design can significantly lower consumption.
Is it suitable for building management integration?
Absolutely — multiple protocols facilitate BMS connection.
How large is the unit?
Approximately 240 mm (W) × 420 mm (H) × 214 mm (D), ~26.4 kg.
