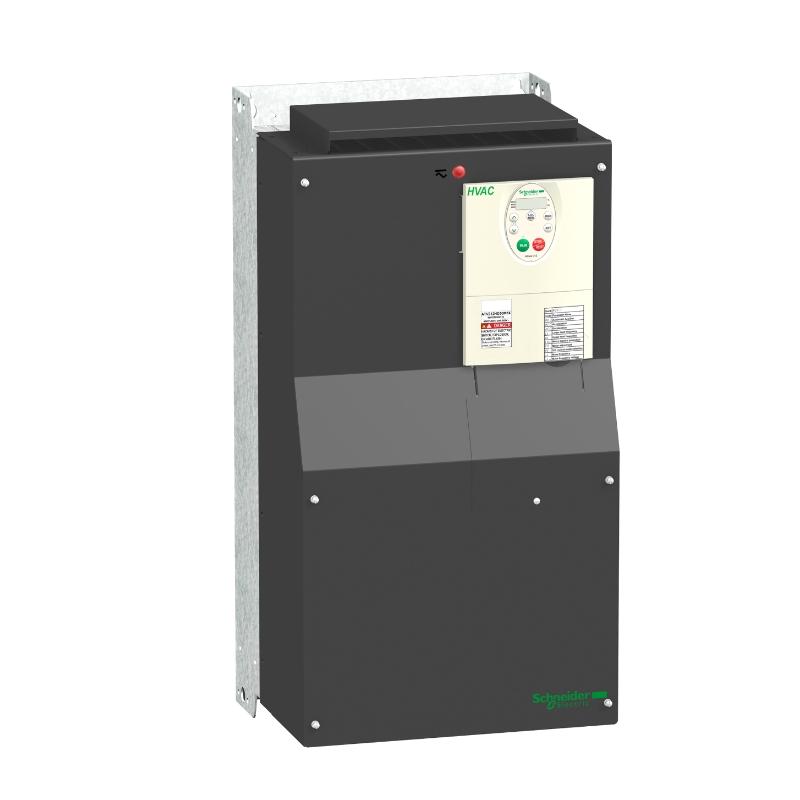

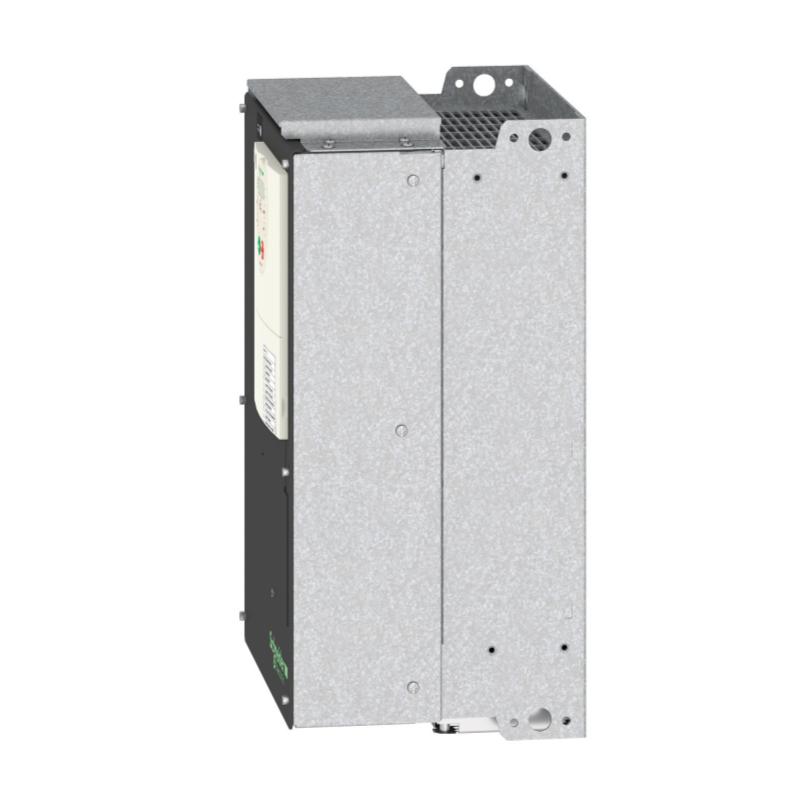

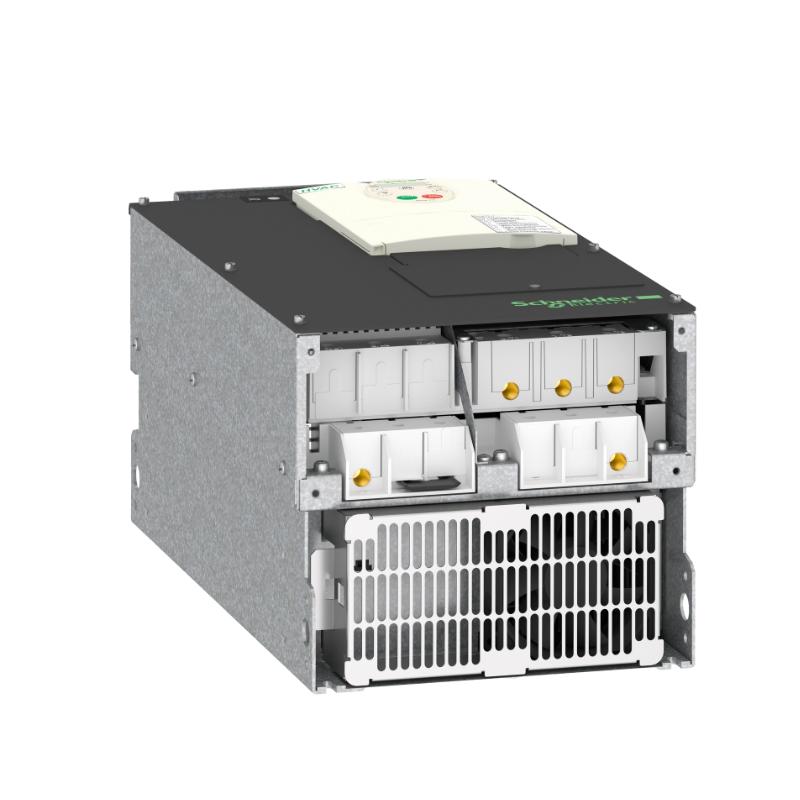

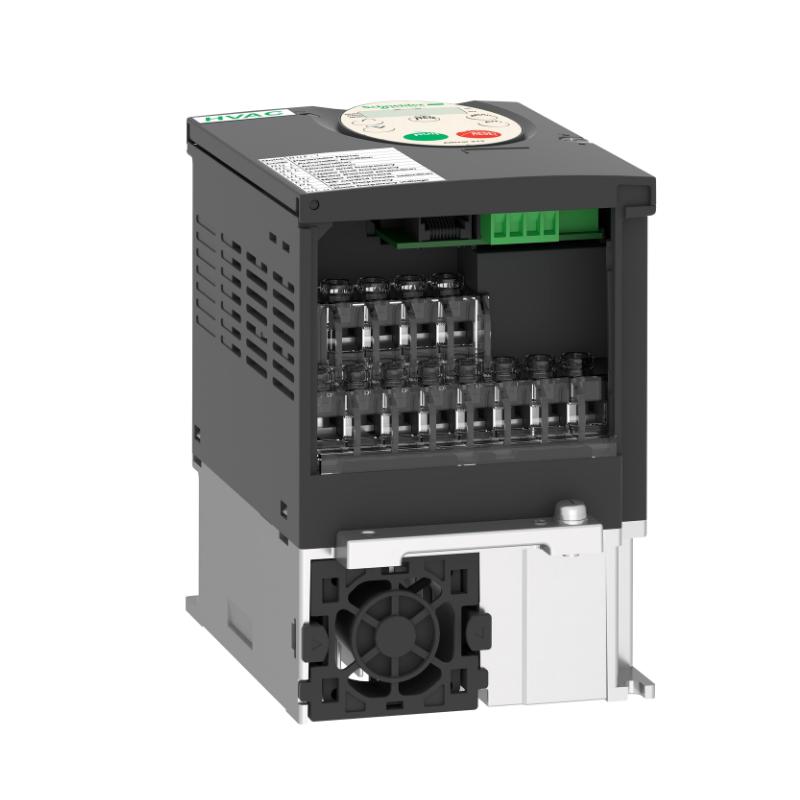

The Schneider Electric ATV212HD30N4 Variable Frequency Drive brings high‑performance motor control to medium‑to‑large industrial and commercial applications. As part of the Altivar 212 family, this model delivers dynamic speed regulation for three‑phase asynchronous motors up to 30 kW (40 hp), striking a smart balance of efficiency, durability, and connectivity. Designed to support HVAC, pumping, and fluid‑handling systems, it integrates advanced protection features, built‑in EMC filtering, and flexible communication support—making it a dependable choice for engineers and system integrators focused on energy savings, reliability, and seamless automation integration.

Technical Specifications

Specification	Details
Product Type	Variable Frequency Drive (VFD)
Series	Altivar 212
Rated Power	30 kW (40 hp)
Voltage Range	380 – 480 V AC (allowable 323 – 528 V)
Phase	Three‑phase
Rated Output Current	58.5 A @ 380–460 V
Transient Overcurrent	64.4 A (60 s)
Output Frequency Range	0.5 – 200 Hz
EMC Filter	Integrated Class C2
IP Rating	IP21 (indoor cabinet)
Dimensions (W × H × D)	240 mm × 420 mm × 214 mm
Weight	~26.4 kg
Cooling Method	Forced air (≈ 290 m³/h)
Standards & Certifications	IEC/EN 61800‑5‑1, IEC/EN 61800‑3, CE, UL, CSA, C‑Tick, NOM
Mounting Orientation	Vertical, ±10°
Protection Features	Overcurrent, over/undervoltage, phase loss, thermal

Recommended Related Models

Schneider Electric ATV212HD22N4 – Slightly lower power option for mid‑range applications.
Schneider Electric ATV212HD37N4 – Increased capacity for larger motors.
Schneider Electric ATV212HD55N4 – Robust choice for demanding HVAC or pumping systems.
Schneider Electric ATV212HD75N4 – Higher power tier in the Altivar 212 family.

Popular Allen Bradley Models (Cross‑Reference in VFD & Drive Systems)

Allen‑Bradley PowerFlex 525
Allen‑Bradley PowerFlex 753
Allen‑Bradley PowerFlex 755
Allen‑Bradley Kinetix® Drives
These units are frequently evaluated alongside Schneider Altivar series drives in industrial motor control designs.

Applications

The ATV212HD30N4 excels in real‑world automation and control environments where efficiency and adaptability matter:

HVAC Systems – Intelligent fan and compressor control with optimized airflow and reduced energy use.
Pumping & Fluid Management – Stable pressure regulation for water distribution and process liquids.
Building Automation – Integration with BACnet, Modbus, METASYS N2 and other common protocols.
Commercial Facilities – Reliable, efficient motor control for large mechanical systems.

Advantages

Energy‑Optimized Operation – Designed for eco‑energy performance, cutting consumption up to ~70% versus fixed‑speed solutions.
Integrated EMC Filtering – Built‑in Class C2 EMC filter reduces interference and avoids need for external filters.
High Protection & Reliability – Extensive protection features for long motor and drive life.
Flexible Communications – Standard Modbus, BACnet, METASYS N2 and APOGEE FLN support.
Compact, Panel‑Ready Design – Space‑efficient footprint and vertical mounting simplify installation.

Technical FAQs

What is the power rating of the ATV212HD30N4?
It supports up to 30 kW (40 hp) motor control.
Which voltage range does it operate on?
Designed for 380–480 V AC supplies with standard tolerance.
Does it include EMC filtering?
Yes — an integrated Class C2 EMC filter is standard.
What is the IP protection rating?
IP21, suitable for indoor cabinets.
Can it handle transient overloads?
It can support up to 64.4 A transient current for 60 s.
What output frequency range is available?
Adjustable from 0.5 to 200 Hz.
What communication protocols are integrated?
Modbus, BACnet, METASYS N2, APOGEE FLN.
Is it suitable for building management systems?
Yes — multiple integrated protocols support BMS connections.
What are its typical physical dimensions?
240 × 420 × 214 mm (W × H × D).
How much does it weigh?
Approximately 26.4 kg.
