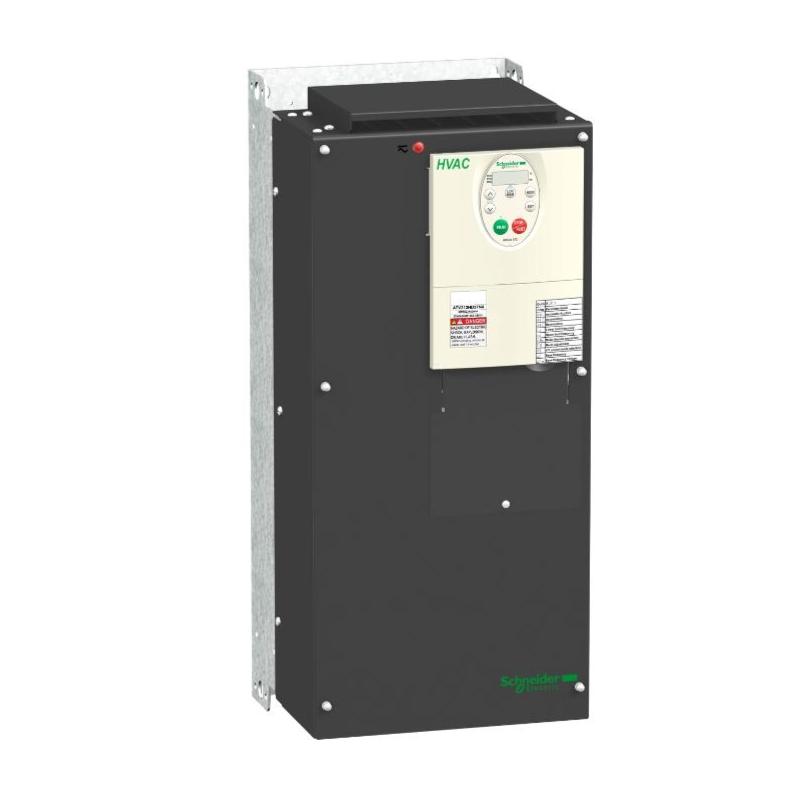

The Schneider Electric ATV212HD45N4 is a robust and versatile variable frequency drive (VFD) engineered for demanding industrial and commercial motor control applications. Part of Schneider Electric’s acclaimed Altivar 212 series, this model delivers 45 kW (60 hp) power handling with smooth speed regulation, superior energy efficiency, and reliable protection features. With integrated EMC filtration and broad protocol support, the ATV212HD45N4 enables seamless integration into modern automation systems while reducing energy consumption and operational costs—a smart solution for HVAC, pumping, and fluid‑handling systems seeking performance and durability.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 212 |
| Rated Power | 45 kW (60 hp) |
| Voltage Range | 380 – 480 V AC |
| Phase | Three‑phase |
| Maximum Continuous Current | ~94 A (380–480 V) |
| Output Frequency Range | 0.5 – 200 Hz |
| EMC Filter | Integrated Class C2 |
| IP Rating | IP21 for indoor panel installations |
| Dimensions (W × H × D) | 240 mm × 550 mm × 244 mm |
| Weight | ~38.1 kg |
| Protection Features | Overcurrent, over/undervoltage, thermal, phase loss |
| Communication Protocols | Modbus, METASYS N2, APOGEE FLN, BACnet (common standards) |
| Certifications | IEC/EN 61800‑5‑1, IEC/EN 61800‑3, CE, UL, CSA, C‑Tick, NOM |
| Mounting Position | Vertical (±10°) |
