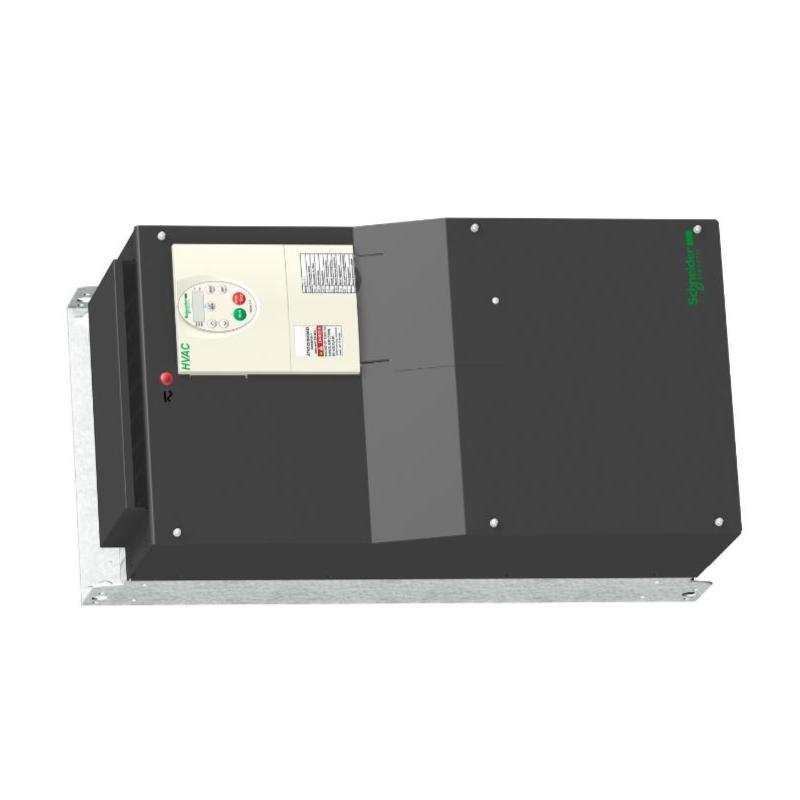

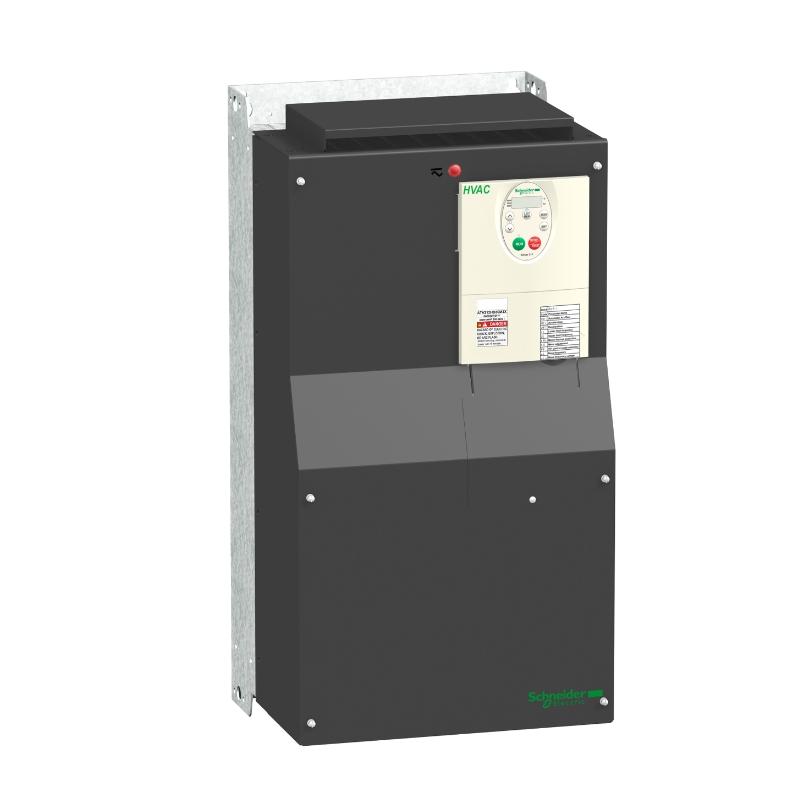

The Schneider Electric ATV212HD75N4 High‑Performance Variable Frequency Drive is a premium drive solution engineered to deliver reliable, energy‑optimized motor control for demanding industrial and commercial applications. Part of the trusted Altivar 212 series, this model provides 75 kW (100 hp) power capability with precise speed and frequency regulation for three‑phase asynchronous motors. Built around eco‑energy principles, it reduces operational power usage while offering robust protection, versatile connectivity, and simplified integration with modern automation systems. Ideal for HVAC, pumping, and fluid management systems where performance and efficiency are essential.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 212 |
| Rated Power | 75 kW (100 hp) |
| Supply Voltage | 380 – 480 V AC (323 – 528 V) |
| Phase | Three‑phase |
| Max Output Current | ~160 A |
| Transient Current (60 s) | ~111.3 A |
| Output Frequency Range | 0.5 – 200 Hz |
| EMC Filter | Integrated Class C2/C3 |
| IP Rating | IP21 (indoor cabinet) |
| Mounting Orientation | Vertical ±10° |
| Dimensions (W × H × D) | 320 mm × 630 mm × 290 mm |
| Weight | ~55.4 kg |
| Communication Protocols | Modbus, BACnet, METASYS N2, APOGEE FLN, LonWorks (optional) |
| I/O Interfaces | Analog & Digital inputs/outputs (configurable) |
| Protection Features | Overcurrent, over/undervoltage, thermal, phase loss |
| Certifications | IEC/EN 61800‑5‑1, IEC/EN 61800‑3, CE, UL, CSA, C‑Tick, NOM |
