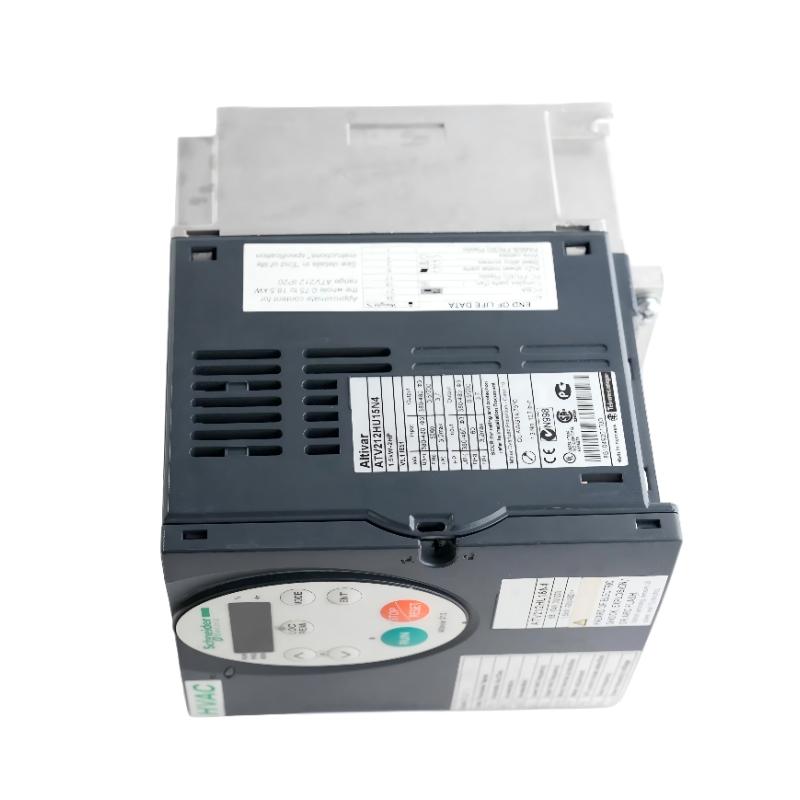

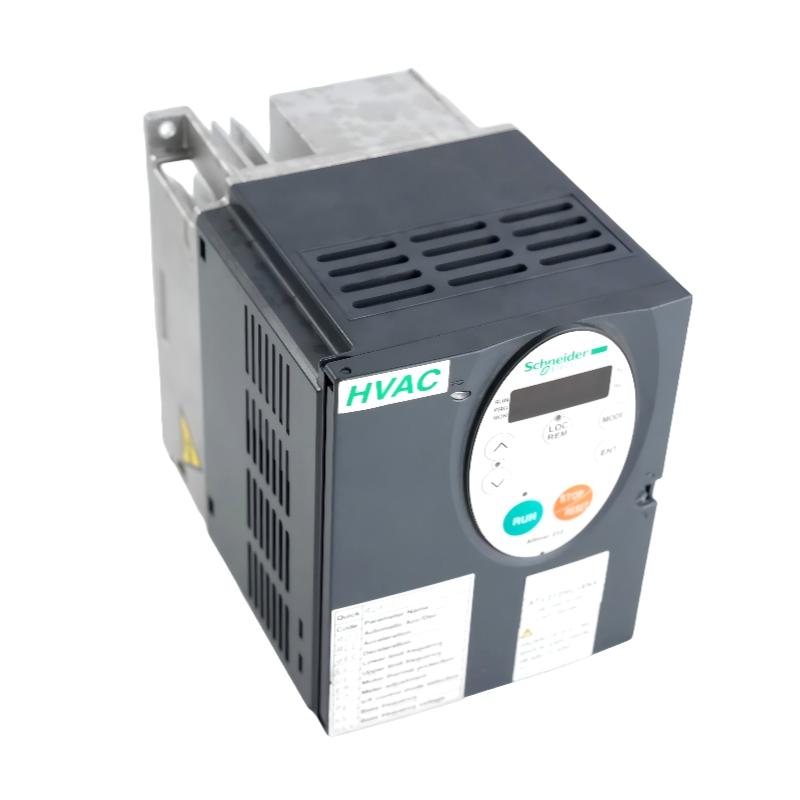

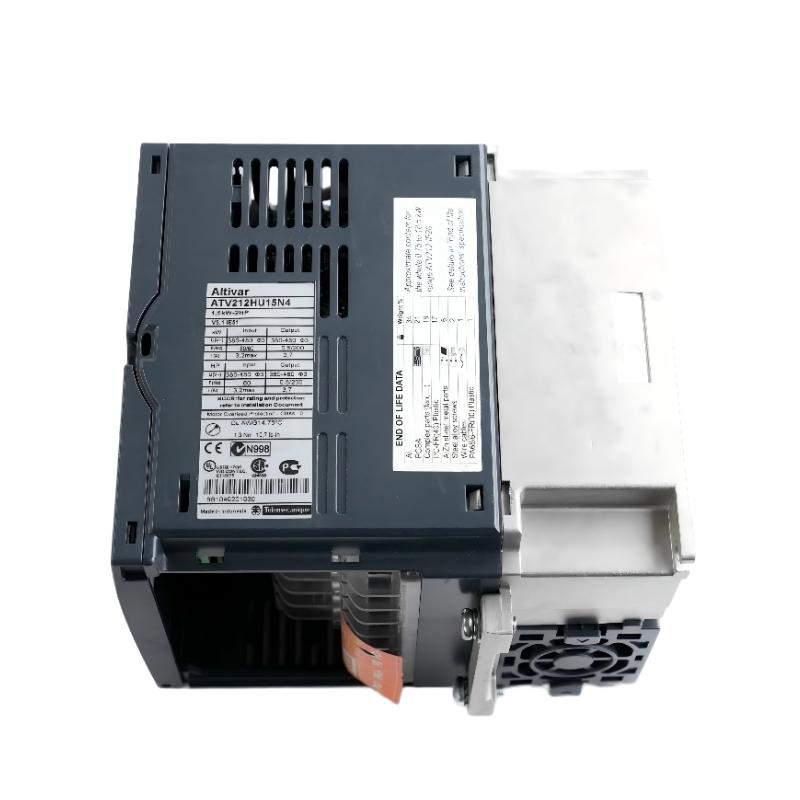

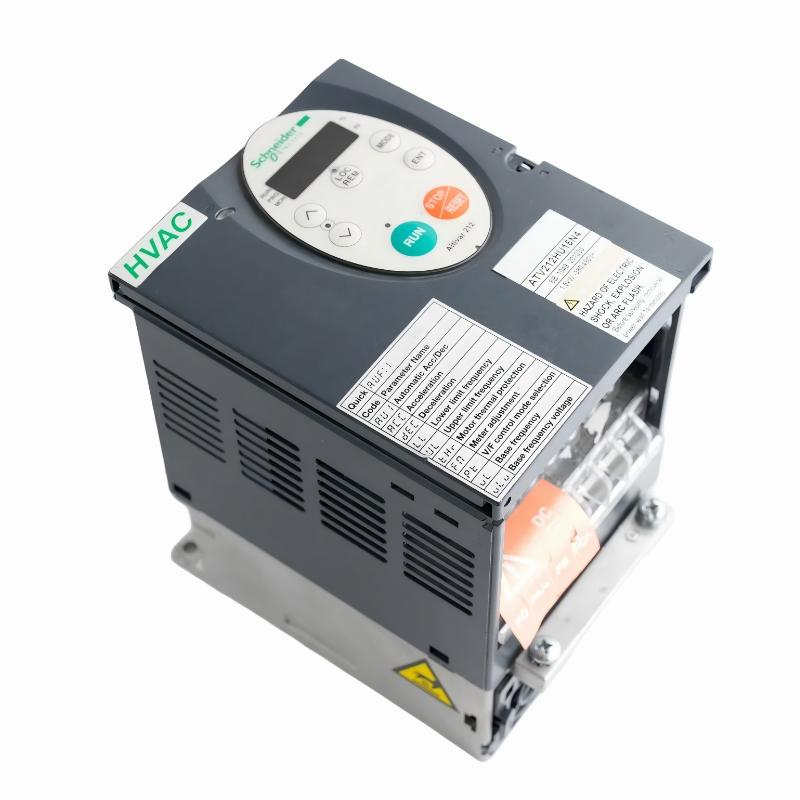

The Schneider Electric ATV212HU15N4 High‑Efficiency Variable Frequency Drive is a compact yet powerful member of the Altivar 212 series engineered for precise, energy‑aware motor control in commercial and light industrial applications. Designed to regulate three‑phase asynchronous motors up to 1.5 kW (2 hp), this drive delivers smooth speed control, lower energy consumption, and reliable protection in fluid handling, HVAC, and general motor control systems. Its integrated EMC filter and flexible communication make it easy to incorporate into modern building automation environments while maintaining strong efficiency and performance.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 212 |
| Rated Power | 1.5 kW (2 hp) |
| Voltage Range | 380 – 480 V AC (323 – 528 V) |
| Phase | Three‑phase |
| Rated Output Current | ~3.7 A |
| Maximum Transient Current | ~4 A (60 s) |
| Output Frequency Range | 0.5 – 200 Hz |
| EMC Filter | Integrated Class C2/C3 |
| IP Rating | IP21 (indoor panel mounting) |
| Dimensions (W × H × D) | 107 mm × 143 mm × 150 mm |
| Weight | ~2 kg |
| Mounting Options | Vertical panel mount or DIN rail with separate kit |
| Communication Protocols | Modbus, BACnet, METASYS N2, APOGEE FLN (optional LonWorks) |
| Protection Features | Overcurrent, over/undervoltage, thermal, phase loss |
| Certifications | IEC/EN 61800‑5‑1, IEC/EN 61800‑3, CE, UL, CSA, C‑Tick, NOM |
Recommended Related Models
- Schneider Electric ATV212HU22N4 – Mid‑range 2.2 kW option within the Altivar 212 family.
- Schneider Electric ATV212HD11N4 – 11 kW model for larger motor loads.
- Schneider Electric ATV212HD18N4 – 18.5 kW unit ideal for HVAC pump control.
- Schneider Electric ATV212HD37N4 – Higher power model for larger industrial systems.
Popular Allen Bradley Models (For Cross‑Reference in Drives & Motor Control Systems)
- Allen‑Bradley PowerFlex 525
- Allen‑Bradley PowerFlex 753
- Allen‑Bradley PowerFlex 755
-
Allen‑Bradley Kinetix® Drives
These drives are frequently evaluated alongside Schneider Altivar products in automation and motor control design.
