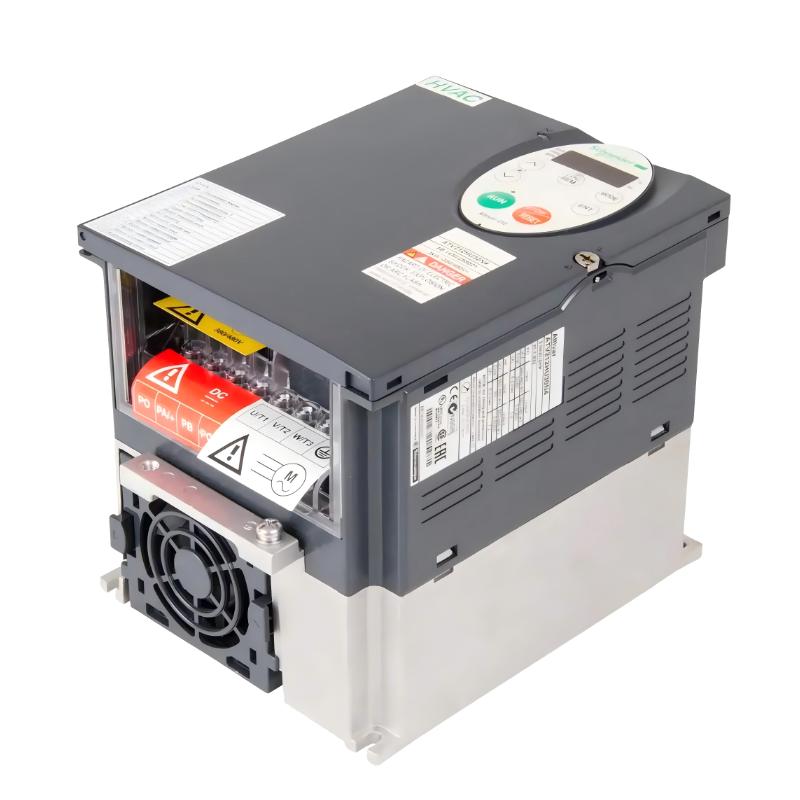

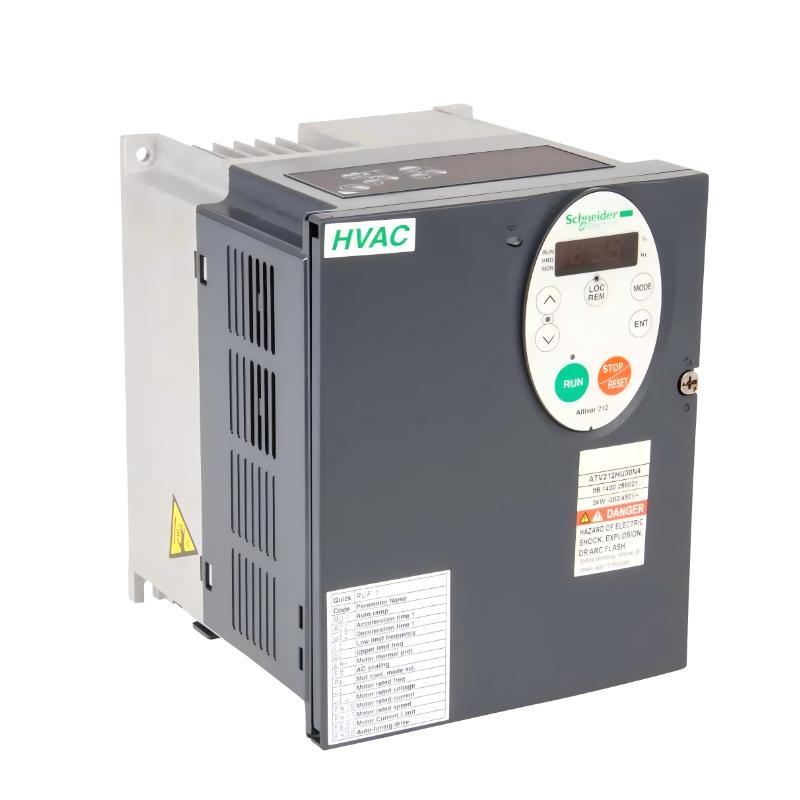

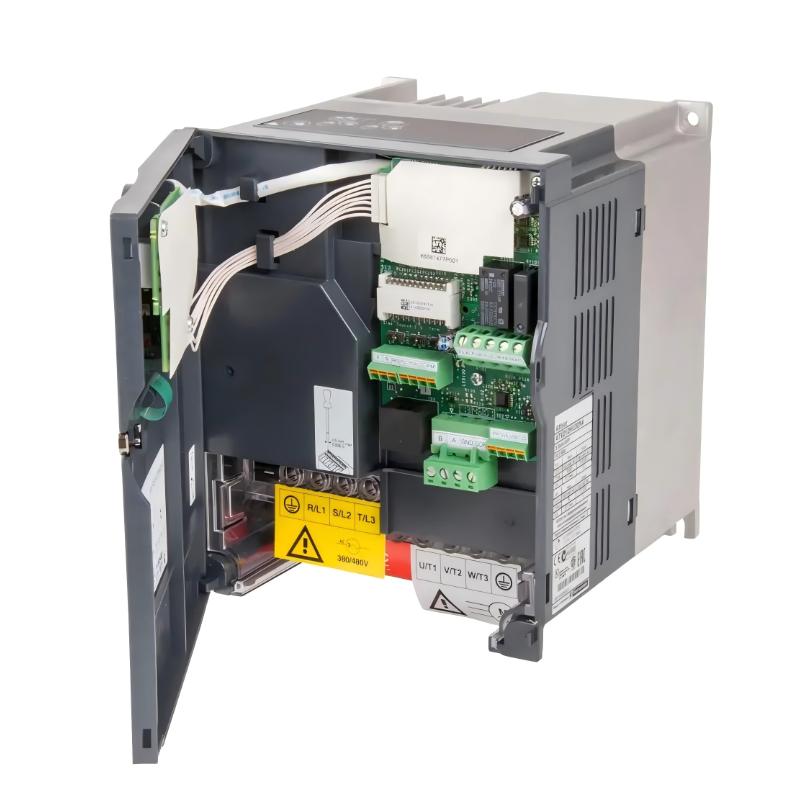

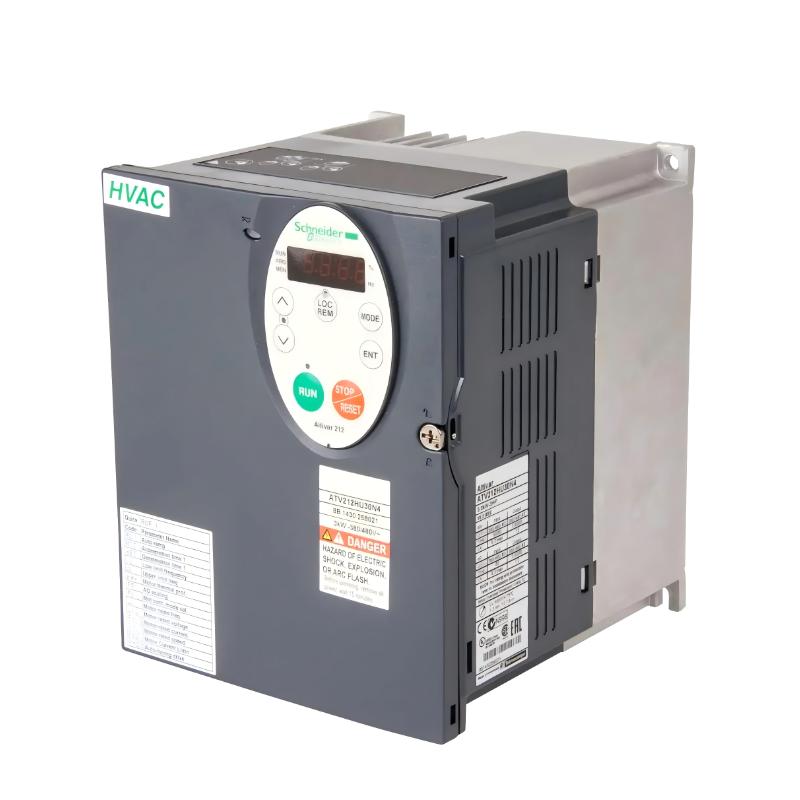

The Schneider Electric ATV212HU30N4 High‑Efficiency Variable Frequency Drive is a compact yet powerful Altivar 212 series VFD designed for precise, energy‑optimized motor speed control of 3 kW (4 hp) three‑phase asynchronous motors. Its eco‑energy design enhances energy savings and cost efficiency in commercial and light industrial systems, especially in HVAC, fluid handling, and building automation scenarios. With its integrated EMC filter and broad communication support, this VFD delivers dependable performance and seamless integration into modern automation architectures.

Technical Specifications

Specification	Details
Product Type	Variable Frequency Drive (VFD)
Series	Altivar 212
Rated Power	3 kW (4 hp)
Supply Voltage	380 – 480 V AC (operating 323 – 528 V)
Phase	Three‑phase
Maximum Output Current	~7.2 A
Output Frequency Range	0.5 – 200 Hz
EMC Filter	Integrated Class C2
IP Rating	IP21 (indoor panel)
Communication Protocols	Modbus, BACnet, APOGEE FLN, METASYS N2, LonWorks (optional)
Dimensions (W × H × D)	142 mm × 184 mm × 150 mm
Weight	≈ 3.35 kg
Mounting Orientation	Vertical (+/‑10°)
Certifications	IEC/EN 61800‑5‑1, IEC/EN 61800‑3, CE, UL, CSA, C‑Tick, NOM
Protection Features	Overcurrent, overvoltage, thermal, phase‑loss protection

Recommended Related Models

Schneider Electric ATV212HU22N4 – Compact 2.2 kW Altivar 212 VFD for lighter loads.
Schneider Electric ATV212HU55N4 – Higher‑capacity 5.5 kW variant in HVAC and fluid systems.
Schneider Electric ATV212HU75N4 – Larger Altivar 212 option for more demanding drives.
Schneider Electric ATV212HD30N4 – 30 kW Altivar 212 drive for larger motor applications.

Popular Allen Bradley Models (For Cross‑Reference in Drive Selection)

Allen‑Bradley PowerFlex 525
Allen‑Bradley PowerFlex 753
Allen‑Bradley PowerFlex 755
Allen‑Bradley Kinetix® Drives

These Allen‑Bradley drives are frequently compared with Schneider Altivar series units in motor control and automation solutions.

Applications

The ATV212HU30N4 is engineered for real‑world performance across a variety of systems:

HVAC & Ventilation: Smooth control of fans and blowers to optimize airflow and reduce energy consumption.
Pumping & Fluid Handling: Stable regulation for pumps in water treatment, heating, and fluid transfer systems.
Building Automation: Seamless connectivity with Modbus, BACnet, and other fieldbus protocols for centralized control.
Light Industrial Machinery: Efficient drive control for conveyors, mixers, and other auxiliary equipment.

Advantages

Eco‑Energy Efficiency: Designed to reduce power consumption by up to ~70 % compared with conventional fixed‑speed systems.
Integrated EMC Filtering: Class C2 filter manages electromagnetic interference without extra components.
Versatile Communications: Built‑in protocol support simplifies integration into building management and automation systems.
Compact, Panel‑Ready Design: Lightweight (~3.35 kg) and compact footprint make it ideal for tight control panel spaces.
Robust Protection: Comprehensive safeguards for overcurrent, thermal, and phase loss enhance reliability.

Technical FAQs

What power rating is the ATV212HU30N4 designed for?
It supports up to 3 kW (4 hp) three‑phase asynchronous motors.
What supply voltage does this VFD require?
Operates on 380 – 480 V AC with standard tolerance.
Does this unit include EMC filtering?
Yes — an integrated Class C2 EMC filter is included.
What is the IP protection rating?
IP21, suitable for indoor panel installations.
What is the maximum output current?
Around 7.2 A.
What frequency range does it support?
Adjustable from 0.5 Hz to 200 Hz.
Is it compatible with building management systems?
Yes — supports common protocols including Modbus, BACnet, APOGEE FLN, and METASYS N2.
What are its physical dimensions?
Approximately 142 × 184 × 150 mm (W × H × D).
How much does it weigh?
≈ 3.35 kg.
What environments is it best suited for?
Ideal for HVAC, fluid handling, and building automation with efficient, reliable motor control.
