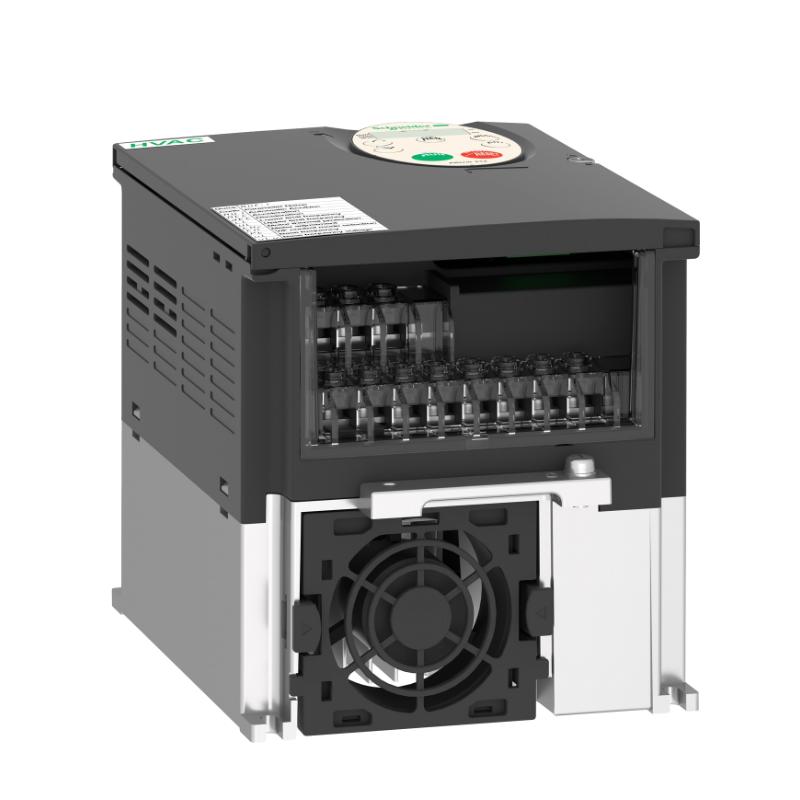

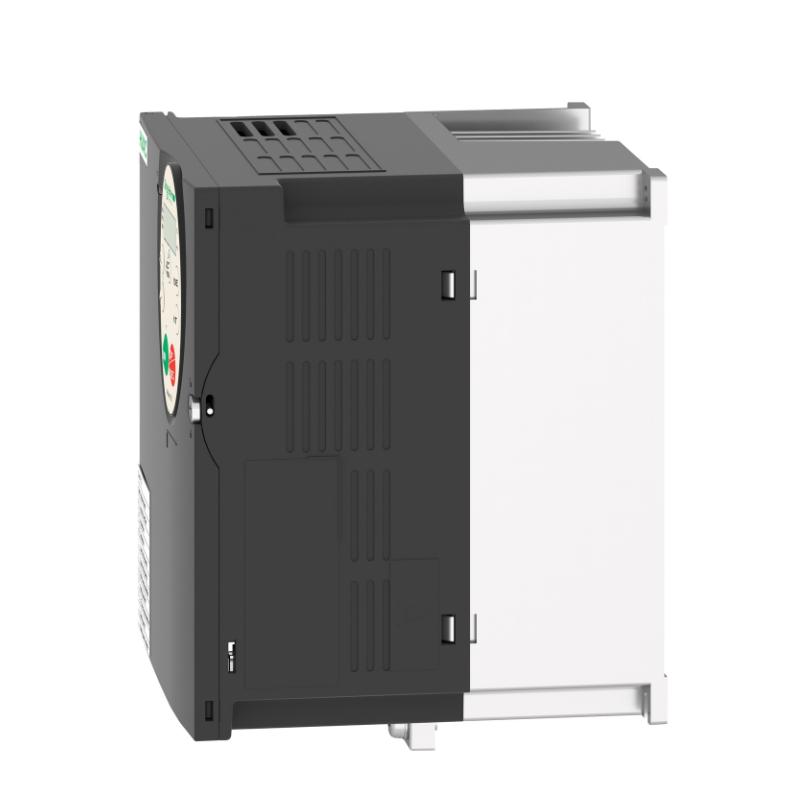

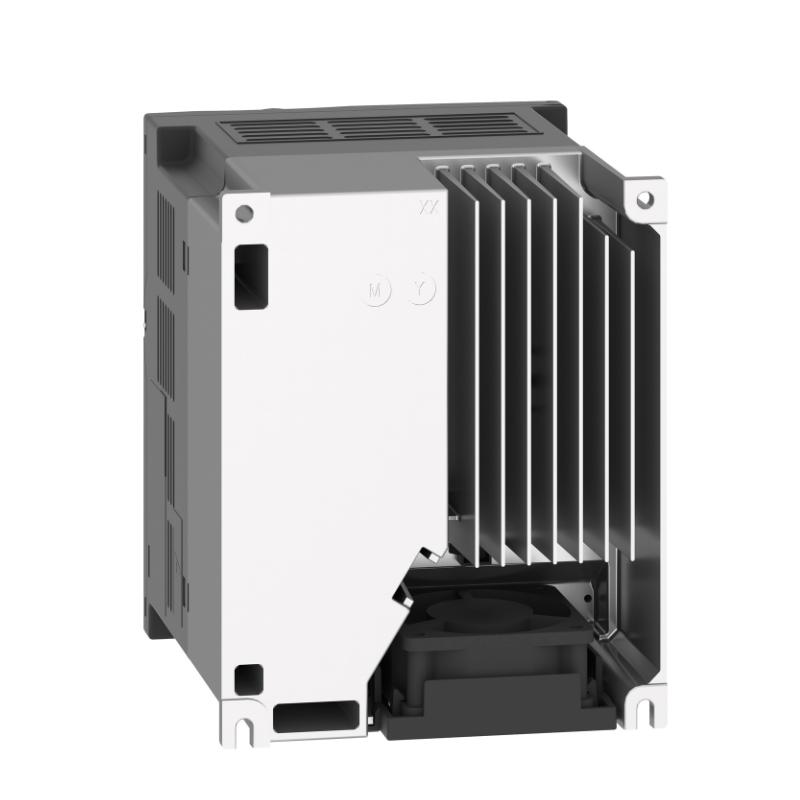

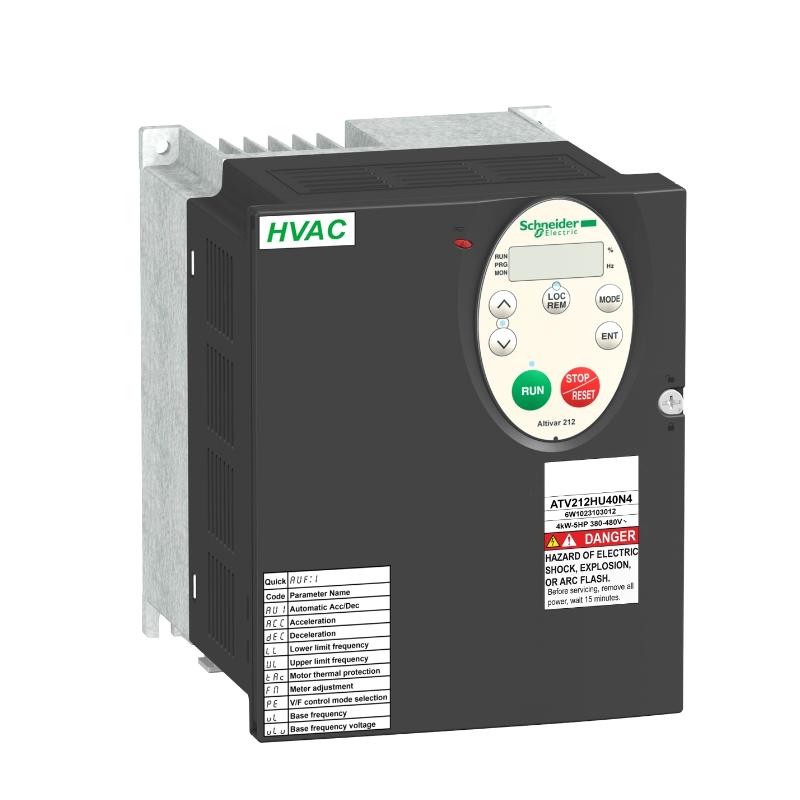

The Schneider Electric ATV212HU40N4 High‑Efficiency Variable Frequency Drive is a compact, eco‑designed drive from the Altivar 212 series tailored for 4 kW (5 hp) three‑phase motor control in HVAC, pumping, and automation systems. With energy‑optimized operation, smooth motor speed regulation, and robust communication support, this VFD delivers dependable performance for fluid management and building automation applications while reducing operational energy costs and enhancing system reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 212 |
| Rated Power | 4 kW (5 hp) |
| Voltage Range | 380 – 480 V AC (operating 323 – 528 V) |
| Phase | Three‑phase |
| Continuous Output Current | 9.1 A @ both 380 V and 460 V |
| Maximum Transient Current | 10 A (60 s) |
| Output Frequency Range | 0.5 – 200 Hz |
| EMC Filter | Integrated Class C2 |
| IP Rating | IP21 (indoor panel mount) |
| Communication Protocols | Modbus, BACnet, METASYS N2, APOGEE FLN, LonWorks (software selectable) |
| Control Inputs/Outputs | 3 logic inputs, 2 analog inputs, 1 analog output, 2 relay outputs |
| Display & Interface | 4‑digit LED display with 7‑button keypad |
| Dimensions (W × H × D) | ~142 mm × 184 mm × 150 mm |
| Weight | ~3.35 kg |
| Protection Features | Over/undervoltage, overcurrent, thermal, phase loss |
| Certifications | IEC/EN 61800‑5‑1, IEC/EN 61800‑3, CE, UL, CSA, C‑Tick, NOM |
| Mounting Orientation | Vertical ± 10° |
