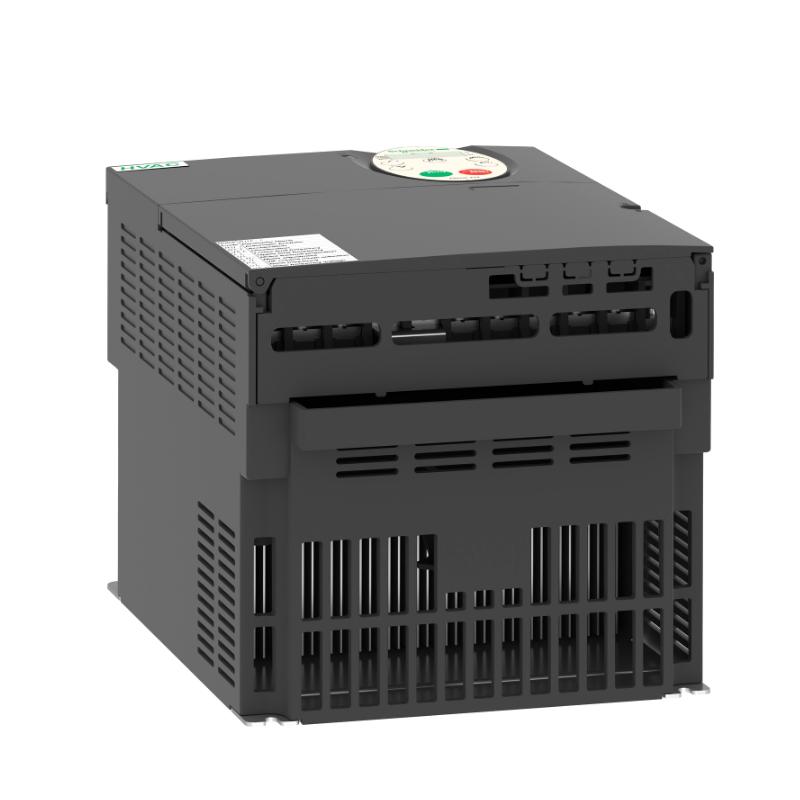

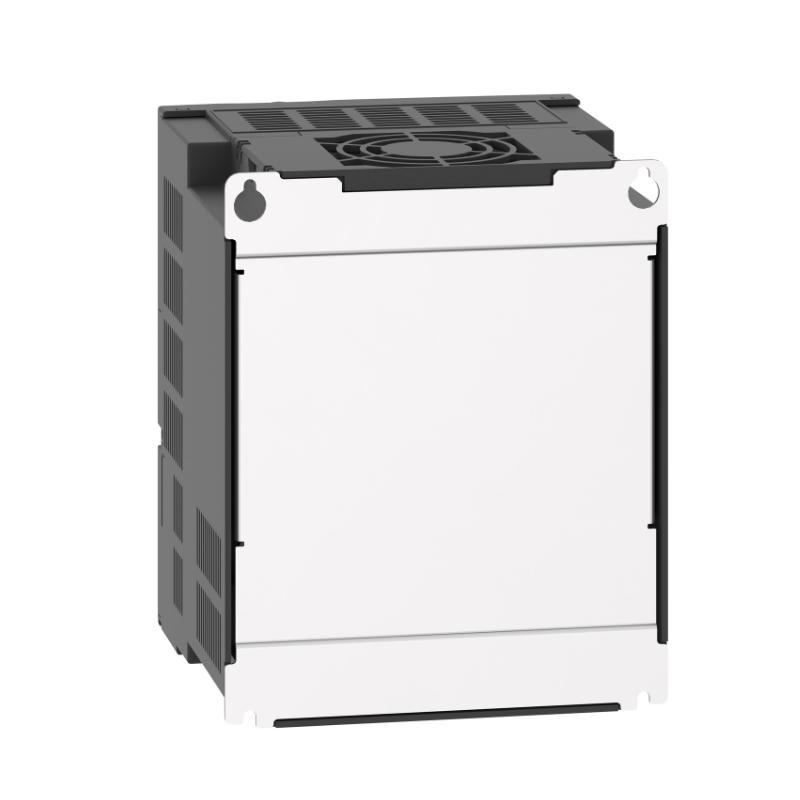

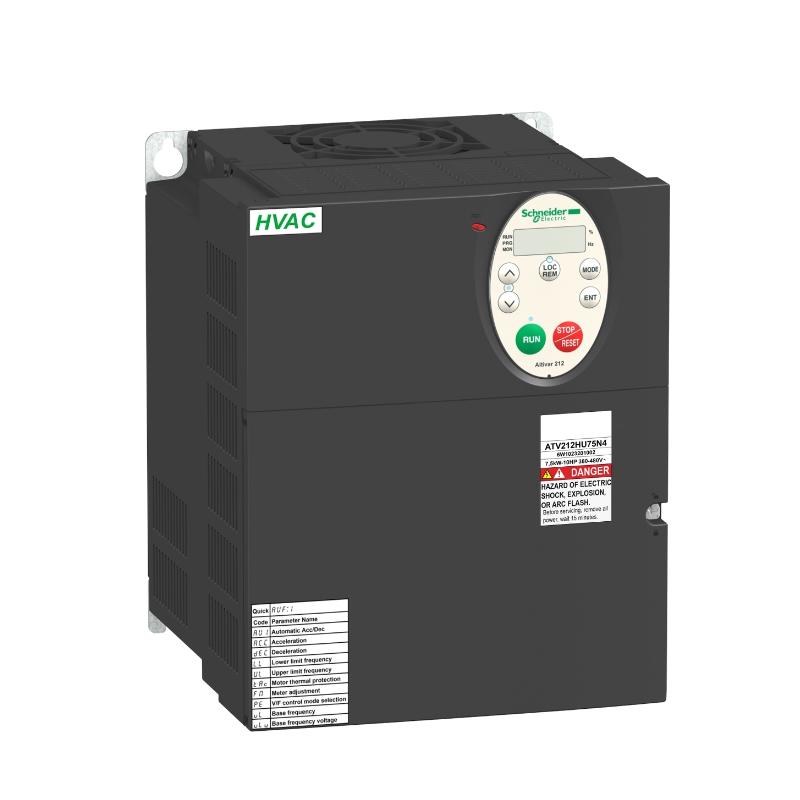

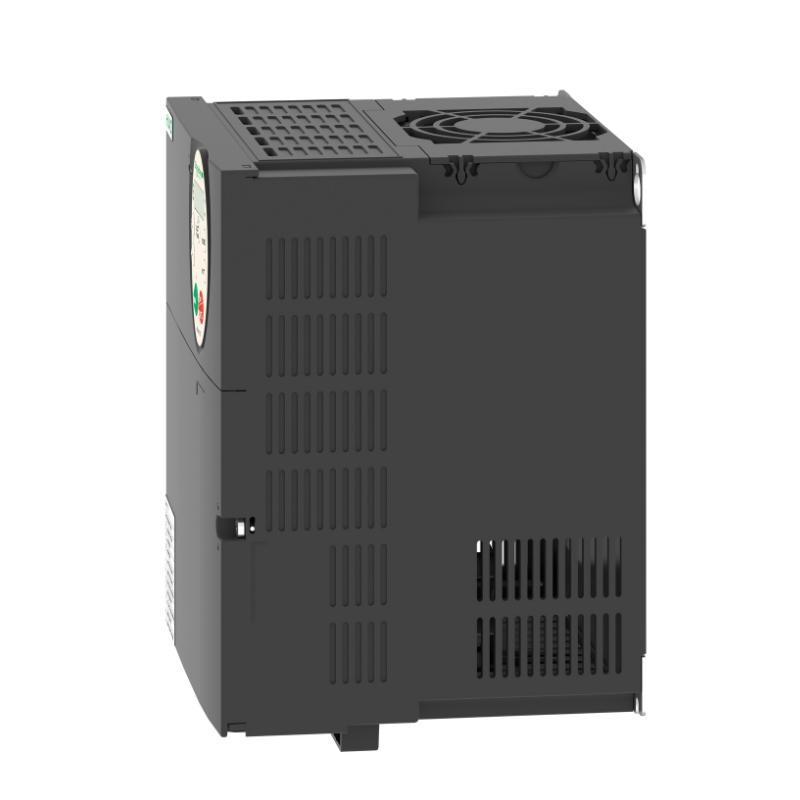

The Schneider Electric ATV212HU75N4 High‑Efficiency Variable Frequency Drive is part of the trusted Altivar 212 family, engineered to deliver reliable and energ‑optimized speed and frequency control for three‑phase asynchronous motors up to 7.5 kW (10 hp). With an eco‑energy design that can significantly cut power consumption compared to fixed‑speed systems, this VFD is ideal for HVAC systems, pumping applications, building automation, and fluid management scenarios. It features built‑in protection, extensive communication support, and a compact form factor that simplifies integration into modern industrial control panels.

Technical Specifications

Specification	Details
Product Type	Variable Frequency Drive (VFD)
Series	Altivar 212
Rated Power	7.5 kW (10 hp)
Voltage Range	380 – 480 V AC (323 – 528 V)
Phase	Three‑phase
Rated Output Current	~16 A (380 V / 460 V typical)
Line Current	~14.7 A @ 480 V AC
Output Frequency Range	0.5 – 200 Hz
EMC Filter	Integrated Class C2
IP Rating	IP21 (indoor cabinet)
Dimensions (W × H × D)	180 mm × 232 mm × 170 mm
Weight	~6.45 kg
Communication Protocols	Modbus, BACnet, METASYS N2, APOGEE FLN, LonWorks
Protection Features	Over/undervoltage, overcurrent, thermal, phase loss
Certifications	IEC/EN 61800‑5‑1, IEC/EN 61800‑3, CE, UL, CSA, C‑Tick, NOM
Mounting Orientation	Vertical ±10° panel mount

Recommended Related Models

Schneider Electric ATV212HU22N4 – Compact 2.2 kW drive for lighter HVAC and pump loads.
Schneider Electric ATV212HU30N4 – 3 kW VFD ideal for small fluid handling systems.
Schneider Electric ATV212HU40N4 – 4 kW model balancing power and footprint.
Schneider Electric ATV212HU55N4 – 5.5 kW option for more demanding motor applications.
Schneider Electric ATV212HD75N4 – Higher‑power industrial Altivar 212 drive in the same family.

Popular Allen‑Bradley Models (For Comparison in Drive & Motor Control)

Allen‑Bradley PowerFlex 525
Allen‑Bradley PowerFlex 753
Allen‑Bradley PowerFlex 755
Allen‑Bradley Kinetix® Drives
These Allen‑Bradley drives are frequently evaluated alongside Schneider Altivar series units in industrial motor and automation designs.

Applications

The ATV212HU75N4 delivers versatile performance in key automation and mechanical systems:

HVAC & Ventilation: Smooth control for fans, blowers, and compressors for optimized airflow and reduced energy use.
Pumping & Fluid Management: Stable speed regulation for water, wastewater, and process fluid pumps.
Building Automation: Supports major fieldbus protocols like Modbus, BACnet, METASYS N2, and APOGEE FLN for centralized BAS/BMS integration.
Light Industrial Machinery: Efficient drive control for conveyors, mixers, and auxiliary equipment with reliable, repeatable performance.

Advantages

Eco‑Energy Efficiency: Advanced design can reduce energy consumption up to ~70 % versus traditional fixed‑speed systems, lowering operating costs.
Built‑In EMC Filter: Class C2 EMC filter minimizes electromagnetic interference without external add‑ons.
Comprehensive Protection: Robust safeguards for over/undervoltage, overcurrent, thermal overload, and phase loss ensure longevity and uptime.
Flexible Communications: Native support for industry‑standard protocols accelerates integration with automation and building systems.
Compact, Panel‑Ready Footprint: Lightweight and vertical mountable, optimized for space‑sensitive control cabinets.

Technical FAQs

What power range does the ATV212HU75N4 support?
It’s rated for 7.5 kW (10 hp) three‑phase asynchronous motors.
What voltage range is required?
Designed for 380 – 480 V AC with operating limits from 323 – 528 V.
Is an EMC filter included?
Yes — built‑in Class C2 EMC filtering minimizes electrical noise.
What is the IP protection rating?
IP21 for indoor panel installation.
What communication protocols are available?
Modbus, BACnet, METASYS N2, APOGEE FLN, and optional LonWorks support.
How wide is the unit?
Approximately 180 mm wide.
How tall is it?
Approximately 232 mm tall.
How deep is the unit?
Around 170 mm depth.
Does it promote energy savings?
Yes — its eco‑design supports significant reductions in energy use compared with fixed‑speed motors.
What applications is this drive ideal for?
Excellent for HVAC, pumping, building automation, and light industrial motor control deployments where efficiency and reliable speed regulation are required.
