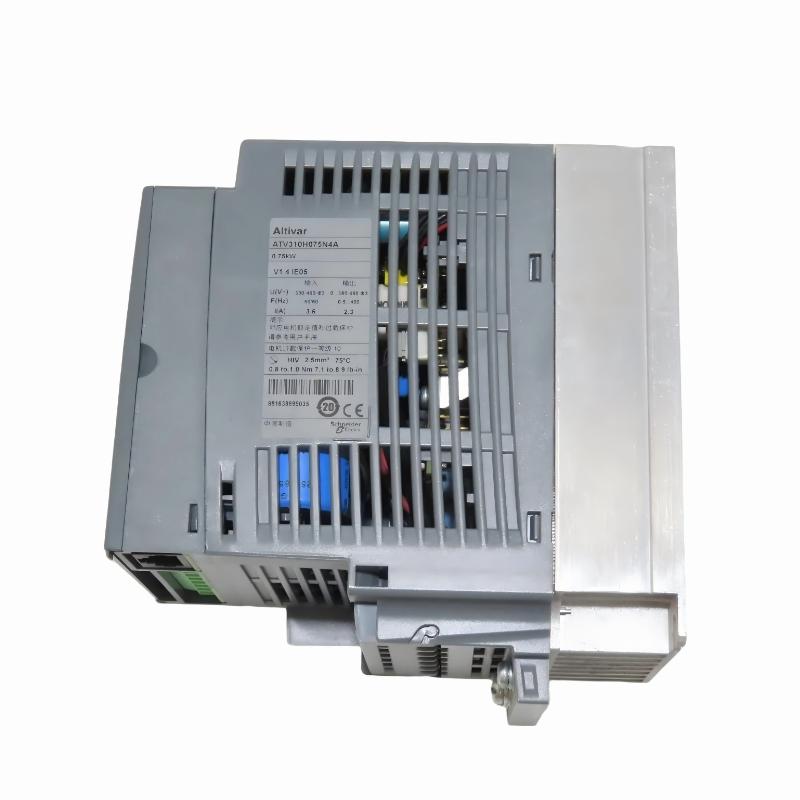

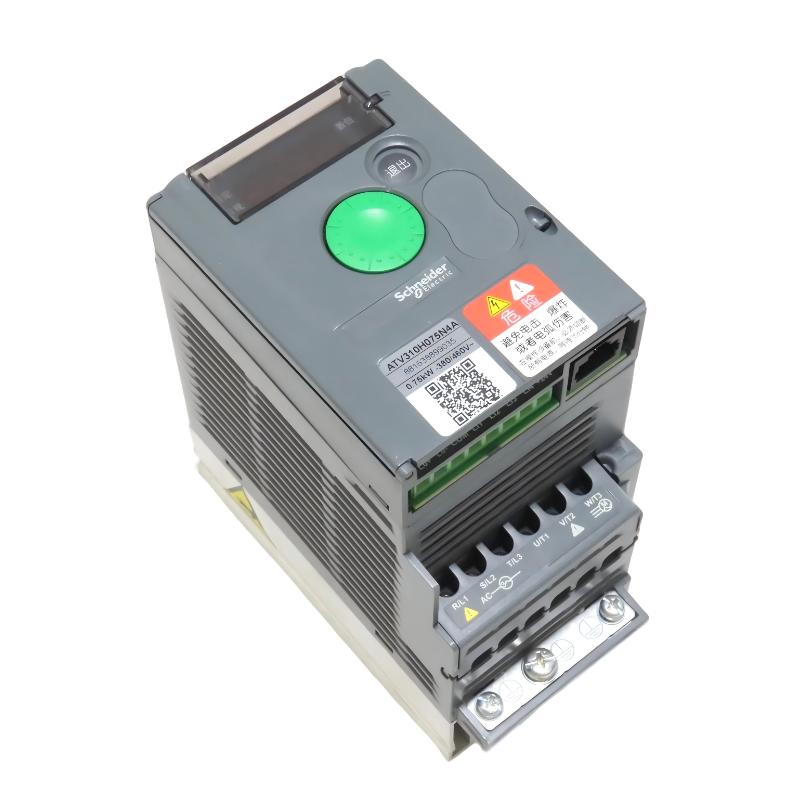

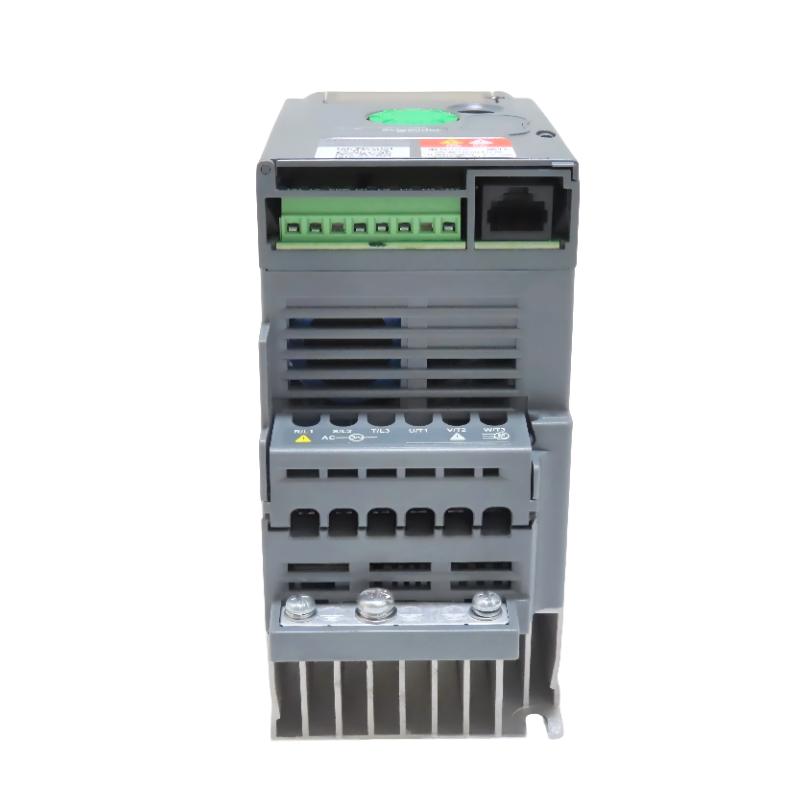

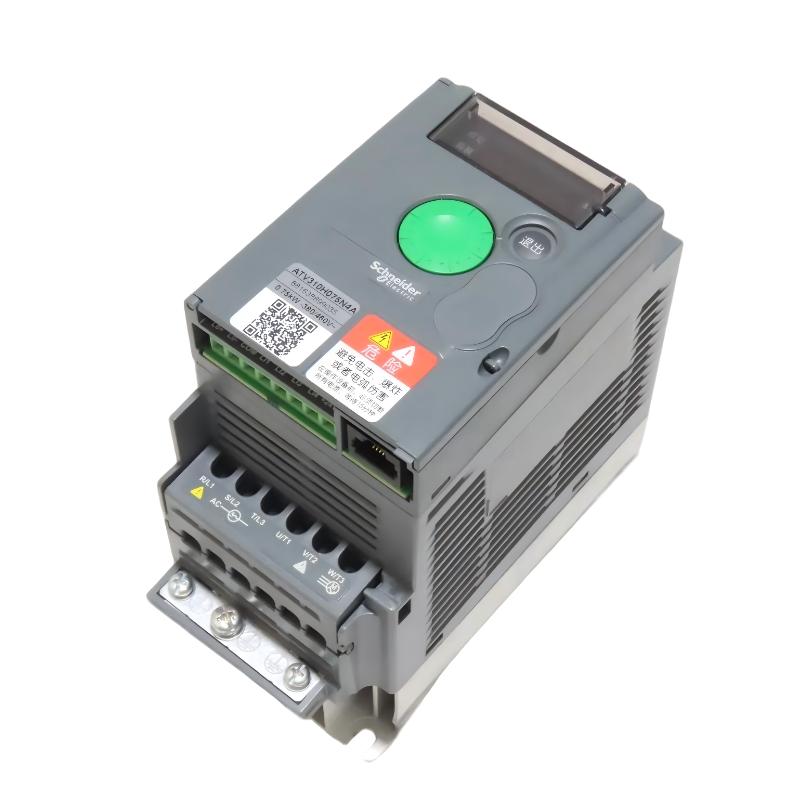

The Schneider Electric ATV310H075N4A is a robust, compact variable frequency drive (VFD) from the Altivar 310 Easy series, designed for 0.75 kW (1 hp) three-phase motors. It provides reliable and smooth motor speed control for light industrial automation, pumps, fans, and small conveyor systems. With integrated Modbus RTU communication and strong protection features, this drive ensures efficient motor operation, quick installation, and long-term durability. Its compact design allows easy panel integration, making it ideal for OEMs and automation system builders who require a cost-effective and energy-efficient solution.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 310 Easy |
| Rated Power | 0.75 kW (1 hp) |
| Supply Voltage | 380 – 460 V AC, three-phase |
| Supply Frequency | 50 / 60 Hz |
| Rated Output Current | ~2.0 A |
| Output Frequency Range | 0.5 – 400 Hz |
| Control Interface | Modbus RTU (RS‑485 / RJ45) |
| Communication Protocol | Modbus |
| EMC Filter | Not included |
| Protection Rating | IP20 / IP41 |
| Heat Sink | Included |
| Dimensions (W × H × D) | 72 mm × 143 mm × 130 mm |
| Weight | 0.85 kg |
| Mounting Orientation | Vertical ±10° |
| Certifications | IEC 61800‑5‑1, IEC 61800‑3 compliant |
Recommended Related Models
- Schneider Electric ATV310H037N4A – 0.37 kW drive for smaller motor applications.
- Schneider Electric ATV310H055N4A – 0.55 kW model for mid-range motor control.
- Schneider Electric ATV310H110N4A – 1.1 kW VFD for higher-capacity industrial tasks.
- Schneider Electric ATV310HU15N4A – 1.5 kW compact high-efficiency VFD for OEM applications.
Popular Allen-Bradley Models (For Comparison in Similar Applications)
- Allen-Bradley PowerFlex 525
- Allen-Bradley PowerFlex 753
- Allen-Bradley PowerFlex 755
- Allen-Bradley Kinetix® Drives
These models are often compared with Schneider Altivar drives in automation designs requiring reliable small-to-medium motor control.
