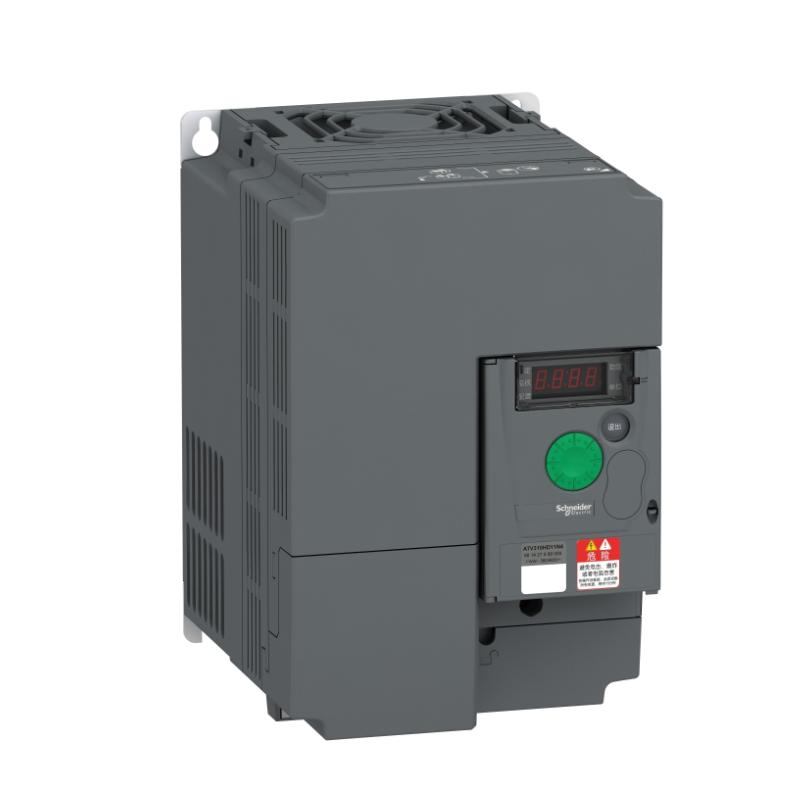

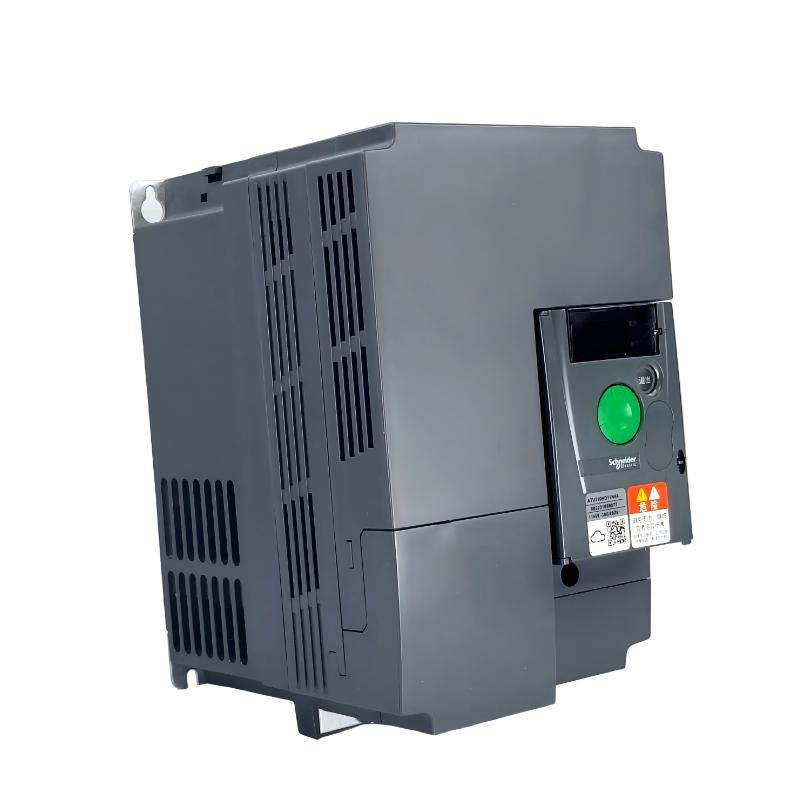

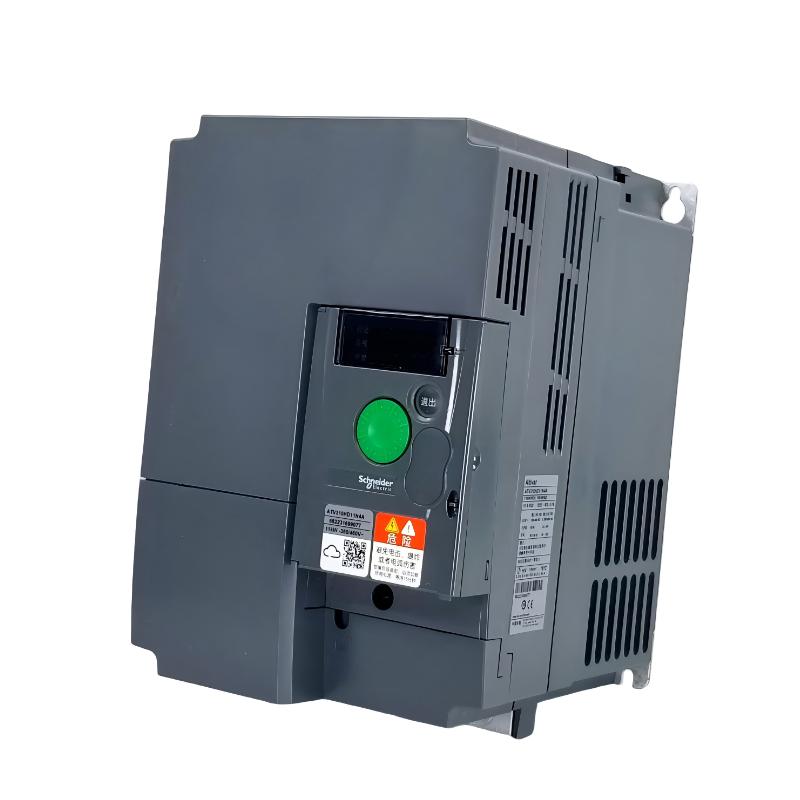

The Schneider Electric ATV310HD11N4A High‑Performance Variable Frequency Drive is a robust and dependable motor controller from the Altivar 310 Easy series, engineered for 11 kW (15 hp) three‑phase asynchronous motors running on 380 – 460 V AC supplies. It delivers smooth, precise speed and torque control with an intuitive Modbus communication interface, making it an excellent choice for industrial automation, material handling, pump systems, fans, packaging machinery, and general machine control applications. Designed for simplicity, energy‑efficient performance, and long‑lasting reliability, this drive brings optimized efficiency and reduced downtime to your motor‑driven processes.

Technical Specifications

Specification	Details
Product Type	Variable Frequency Drive (VFD)
Series	Altivar 310 Easy
Rated Power	11 kW (15 hp)
Rated Voltage	380 – 460 V AC (three‑phase)
Rated Current	~23.2 A¹
Output Frequency Range	~0.5 – 400 Hz
Control Interface	Modbus RTU (RS‑485 / RJ45)
EMC Filter	Integrated Class C3 (some implementations)²
Protection Rating	IP20 (panel mount)²
Dimensions (W × H × D)	~150 mm × 232 mm × 171 mm²
Weight	~3.7 kg²
Cooler	Integrated fan & heat sink¹
Installation Orientation	Vertical ±10°¹
Certifications	IEC 61800‑5‑1, IEC 61800‑3 compliant¹

¹ Typical configuration for ATV310HD11 series; ² Depending on installation and optional covers.

Recommended Related Models

Schneider Electric ATV310HD11N4E – Another 11 kW version with similar performance.
Schneider Electric ATV310HD22N4E – 22 kW Altivar 310 VFD for larger motors.
Schneider Electric atv310hu30n4e – 3 kW high‑efficiency Altivar 310 model.
Schneider Electric atv310hu15n4e – 1.5 kW high‑efficiency variant.
Easy Altivar 310 - Variable Speed Drives – Lightweight Altivar 310 series unit.

These models offer scalable performance across power ratings within the same Altivar 310 family.

Popular Allen‑Bradley Models (For Cross‑Reference in VFD Selection)

Allen‑Bradley PowerFlex 525
Allen‑Bradley PowerFlex 753
Allen‑Bradley PowerFlex 755
Allen‑Bradley Kinetix® Drives

These Allen‑Bradley drives are frequently considered alongside Schneider Altivar units for industrial motor control and system design.

Applications

The ATV310HD11N4A excels in real‑world automation and machine control scenarios, including:

Industrial Material Handling: Smooth conveyor and actuator speed regulation.
Pumping & Fluid Systems: Stable control of pump motors in water and process systems.
Fans & Ventilation: Efficient operation of blowers and fan systems in HVAC applications.
Packaging & Printing Machinery: Precise motor control in production and packaging lines.

This Altivar 310 series is designed for versatility across simple to moderately demanding control tasks.

Advantages

Reliable Performance: Designed for consistent motor control with stable frequency and speed regulation.
Integrated Communication: Modbus RTU simplifies connectivity with PLCs and automation systems.
Compact & Install‑Friendly: Space‑efficient design with integrated cooling and vertical mounting.
Energy‑Efficient: Wide adjustable frequency range can reduce energy use compared with fixed‑speed operation.
Industrial‑Grade Protection: Built‑in safeguards against overcurrent, undervoltage, and thermal stress ensure drive and motor longevity.

Technical FAQs

What motor power does the ATV310HD11N4A support?
It is rated for 11 kW (15 hp) three‑phase motors.
What voltage range is required?
Designed for 380 – 460 V AC three‑phase supply.
Does it include EMC filtering?
Many implementations include an integrated Class C3 EMC filter for reduced electrical noise.
What communication does it support?
Standard Modbus RTU protocol via RS‑485/RJ45.
What is its IP rating?
IP20 enclosure suitable for indoor panel installations.
What are its physical dimensions?
Approximately 150 × 232 × 171 mm.
How much does it weigh?
Around 3.7 kg.
What is its frequency range?
Adjustable from ~0.5 Hz to ~400 Hz.
Is it suitable for light industrial applications?
Yes — ideal for conveyors, pumps, fans, and similar motor control tasks.
Can it integrate with PLC systems?
Yes — its Modbus communication facilitates simple integration with PLCs and automation systems.
