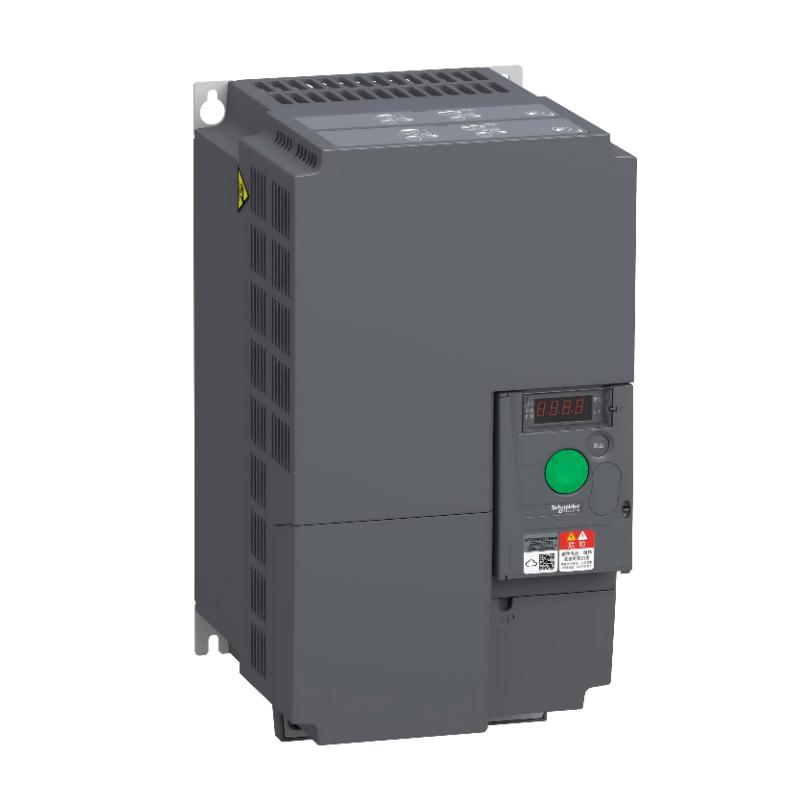

The Schneider Electric ATV310HD15N4A High‑Performance Variable Frequency Drive is a robust and versatile Altivar 310 Easy series VFD engineered to deliver precise, smooth speed and torque control for three‑phase asynchronous motors with power ratings up to 15 kW (20 hp). Built for industrial automation systems, pump and fan controls, and conveyor applications, this drive combines energy‑efficient performance, intuitive Modbus communication, and simplified integration into control panels. Its durable design enhances reliability in environments where uptime and operational efficiency are essential.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 310 Easy |
| Rated Power | 15 kW (20 hp) heavy duty; up to 18.5 kW normal duty¹ |
| Rated Voltage | 380 – 460 V AC, three‑phase¹ |
| Rated Current | ~33 A (heavy duty) / ~36 A (normal duty)¹ |
| Output Frequency Range | 0.5 – 400 Hz |
| Communication Protocol | Modbus RTU (RJ45 & RS‑485) |
| EMC Filter | None (standard N4A version)¹ |
| Protection Rating | IP20 (indoor installation)¹ |
| Mounting Orientation | Vertical ±10° |
| Typical Dimensions (W × H × D) | ~180 mm × 330 mm × 191 mm¹ |
| Weight | ~7 – 8 kg¹ |
| Control Features | Adjustable frequency, torque control, braking options |
| Certifications | IEC 61800‑5‑1, IEC 61800‑3 |
