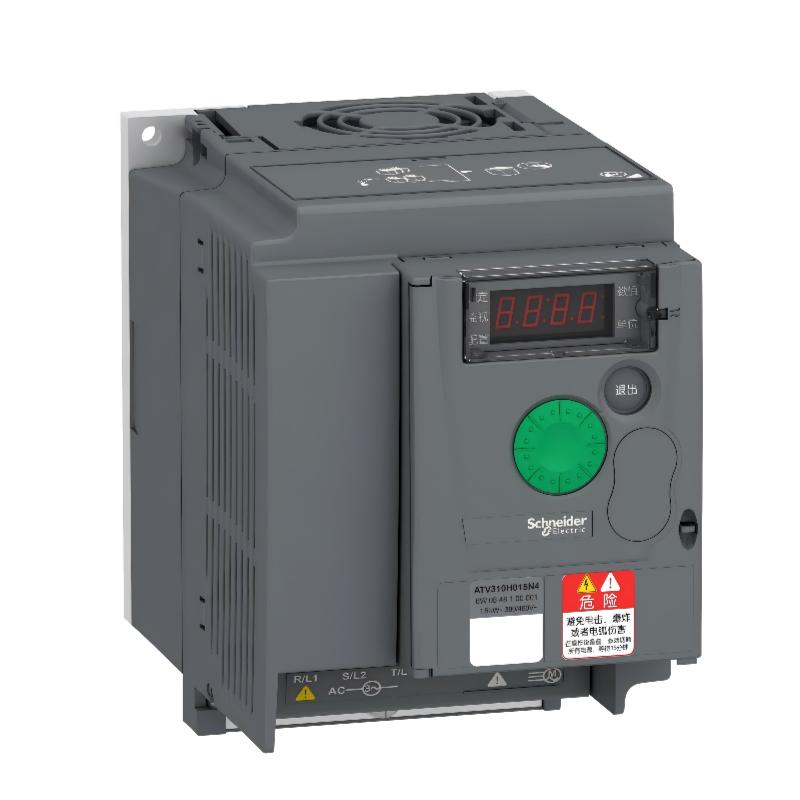

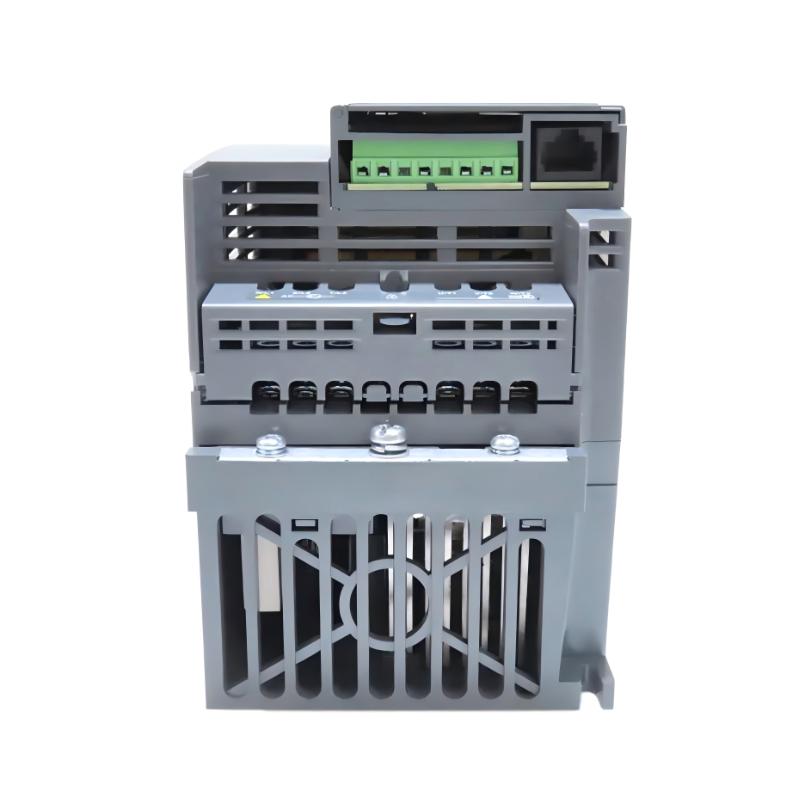

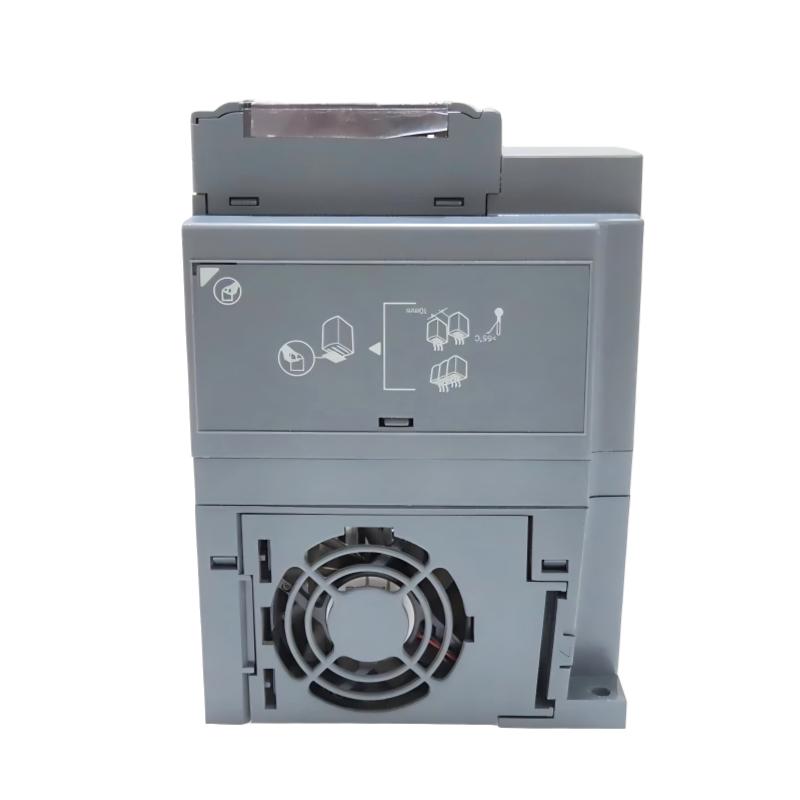

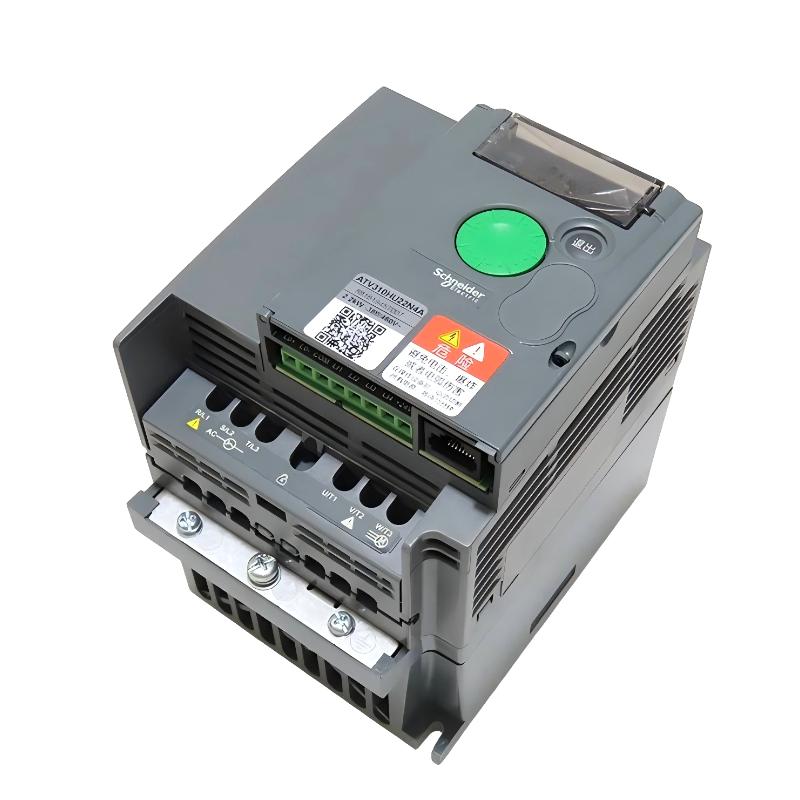

The Schneider Electric ATV310HU11N4A is a high‑capability variable frequency drive (VFD) in Schneider Electric’s Easy Altivar 310 series, engineered for robust 11 kW (15 hp) three‑phase asynchronous motor control on 380 – 460 V AC systems. Ideal for industrial automation, pumps, HVAC fans, conveyors, and material handling equipment, it delivers smooth speed regulation, reliable protection, and straightforward Modbus integration. Designed for cost‑effective energy‑efficient operation and seamless integration into control panels, this drive combines compact design, broad protocol support, and durable performance for diverse motor control applications.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Variable Frequency Drive (VFD) |
| Series | Altivar 310 Easy |
| Rated Power | 11 kW (15 hp) ‑ heavy duty¹ |
| Rated Voltage | 380 – 460 V AC, three‑phase¹ |
| Rated Current | ~24 A (continuous at 460 V)¹ |
| Output Frequency Range | 0.5 – 400 Hz¹ |
| Control Interface | Modbus RTU (RS‑485 / RJ45)¹ |
| EMC Filter | Integrated (Class C3)¹ |
| Protection Rating | IP20 (indoors)¹ |
| Dimensions (W × H × D) | ~150 mm × 232 mm × 171 mm¹ |
| Weight | ~3.7 kg¹ |
| Cooling | Integrated fan |
| Protection Features | Over/under voltage, overcurrent, overheating, short‑circuit protection |
| Certifications | IEC/EN 61800‑5‑1, IEC/EN 61800‑3 |
| Mounting Orientation | Vertical ± 10° |
