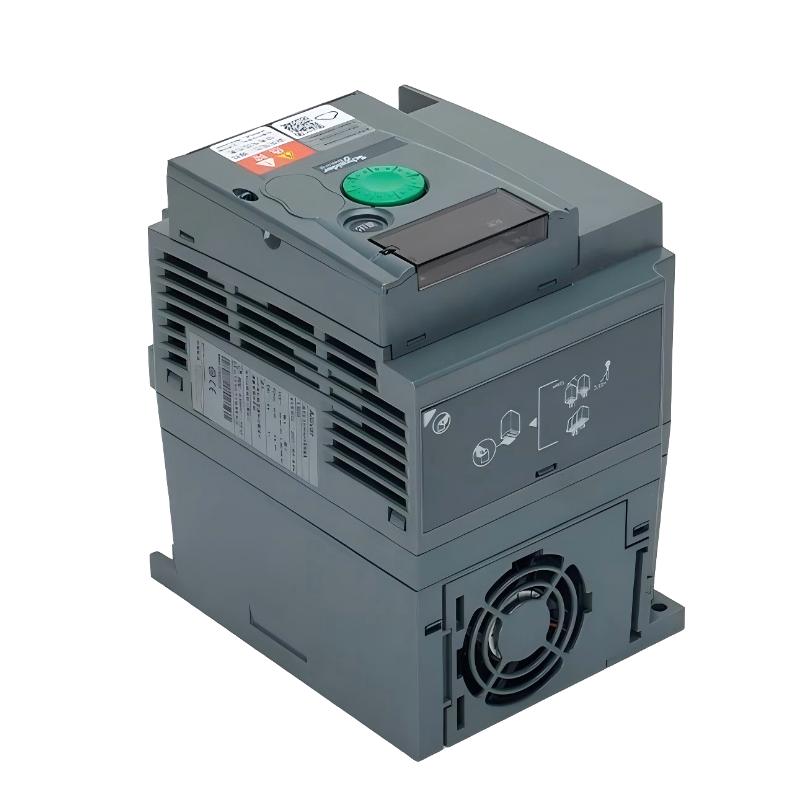

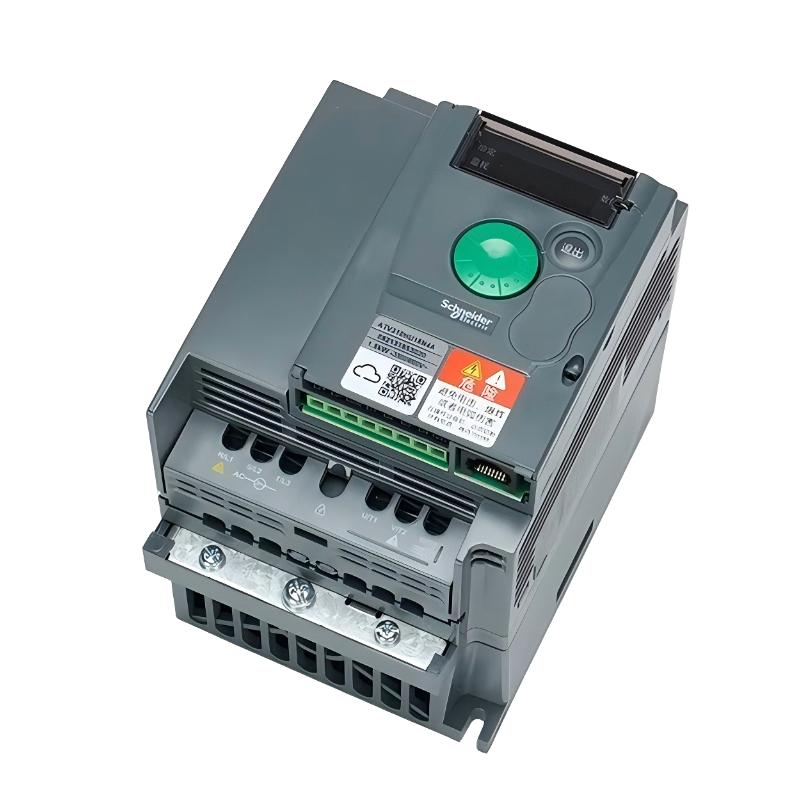

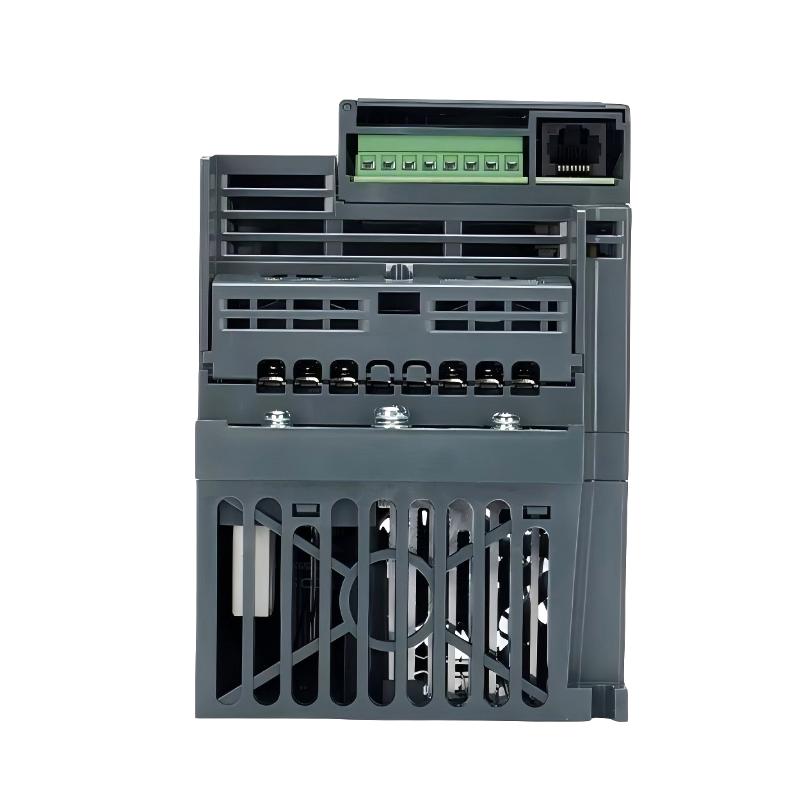

ATV310HU15N4A-2 ATV310HU15N4A-3 ATV310HU15N4A-1 ATV310HU15N4A-4

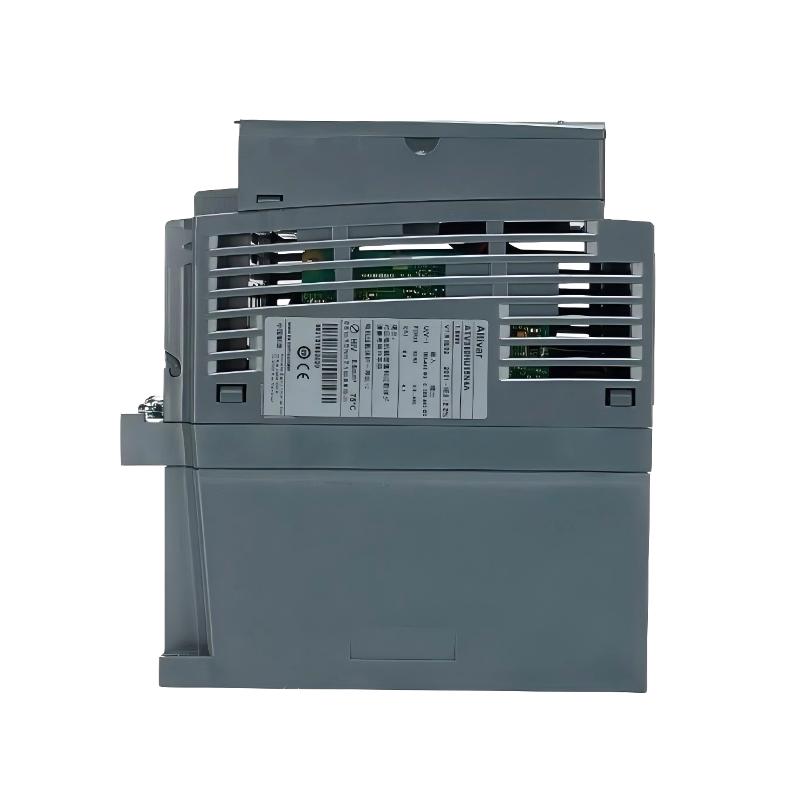

The Schneider Electric ATV310HU15N4A High‑Efficiency Variable Frequency Drive (VFD) is a compact, reliable solution from the Altivar 310 Easy family, crafted for precise, energy‑optimized speed control of three‑phase asynchronous motors up to 1.5 kW (2 hp). Designed to balance performance and simplicity, this drive delivers smooth acceleration and speed regulation for light to moderate industrial tasks, including pumping, conveyor, fan, and automation systems. With Modbus communication support, integrated EMC filter, and rugged construction, it’s a dependable choice for OEMs and maintenance teams seeking both efficiency and durability in tight‑space control cabinets.

Technical Specifications

Specification	Details
Product Type	Variable Frequency Drive (VFD)
Series	Altivar 310 Easy
Rated Power	1.5 kW (2 hp)
Rated Voltage	380 – 460 V AC, three‑phase
Rated Output Current	~4.1 A (heavy duty)
Output Frequency Range	0.5 – 400 Hz
Communication Protocol	Modbus RTU (via RJ45/RS‑485)
EMC Filter	Integrated Class C2
Cooling	Integrated fan**
IP Rating	IP20 (panel)
Dimensions (W × H × D)	~105 mm × 143 mm × 151 mm
Weight	~1.1 kg
Protection Features	Over/undervoltage, overcurrent, thermal, phase‑loss
Certifications	IEC/EN 61800‑5‑1, IEC/EN 61800‑3
Mounting Orientation	Vertical ± 10°

Recommended Related Models

Schneider Electric ATV310HU30N4E – 3 kW Altivar 310 drive for larger motor loads.
Schneider Electric ATV310HU15N4E – Another 1.5 kW Easy Altivar model with extended feature set.
Schneider Electric ATV310H075N4A – 0.75 kW option for smaller systems.
Easy Altivar 310 – Variable Speed Drives – General series representative for compact applications.

Popular Allen‑Bradley Models (Cross‑Reference in Drive & Motor Control)

Allen‑Bradley PowerFlex 525
Allen‑Bradley PowerFlex 753
Allen‑Bradley PowerFlex 755
Allen‑Bradley Kinetix® Drives
These are widely used in similar three‑phase motor control applications alongside Altivar series drives.

Applications

The ATV310HU15N4A is engineered for reliable performance in a range of systems:

Pumping & Fluid Handling: Stable, smooth control for water pumps and fluid transfer motors.
HVAC & Fans: Efficient speed regulation for ventilation and airflow systems.
Conveyors & Material Handling: Precise motor control for belt conveyors and automated lines.
Machine Automation: Ideal for light industrial machines, packaging equipment, and OEM builds.

Advantages

Energy‑Optimized Operation: Eco‑designed to reduce energy consumption compared with fixed‑speed drives.
Integrated EMC Filter: Class C2 filtering reduces electrical noise without external add‑ons.
Compact & Lightweight: Small footprint and ~1.1 kg weight ease panel installation.
Modbus Connectivity: Built‑in communication simplifies integration with PLCs and automation systems.
Rugged Protection: Broad protection suite enhances motor and drive longevity.

Technical FAQs

What motor size is the ATV310HU15N4A designed for?
Supports up to 1.5 kW (2 hp) three‑phase motors.
What voltage supply is required?
Standard 380–460 V AC, three‑phase input.
Is there an integrated EMC filter?
Yes — it includes an integrated Class C2 EMC filter.
Which communication protocol does it use?
Modbus RTU over RS‑485/RJ45.
What protection ratings are provided?
IP20 for indoor panel installation with comprehensive fault protections.
What is the output frequency range?
Adjustable from 0.5 Hz to 400 Hz for flexible speed control.
How compact is the unit?
Around 105 × 143 × 151 mm, lightweight and panel‑friendly.
What is the continuous output current?
~4.1 A for heavy duty operation.
Is it suitable for conveyor control?
Yes — reliable acceleration, deceleration, and torque management fit conveyor and automation systems.
Can it integrate with building automation systems?
Yes — via Modbus RTU communication for centralized control and monitoring.
