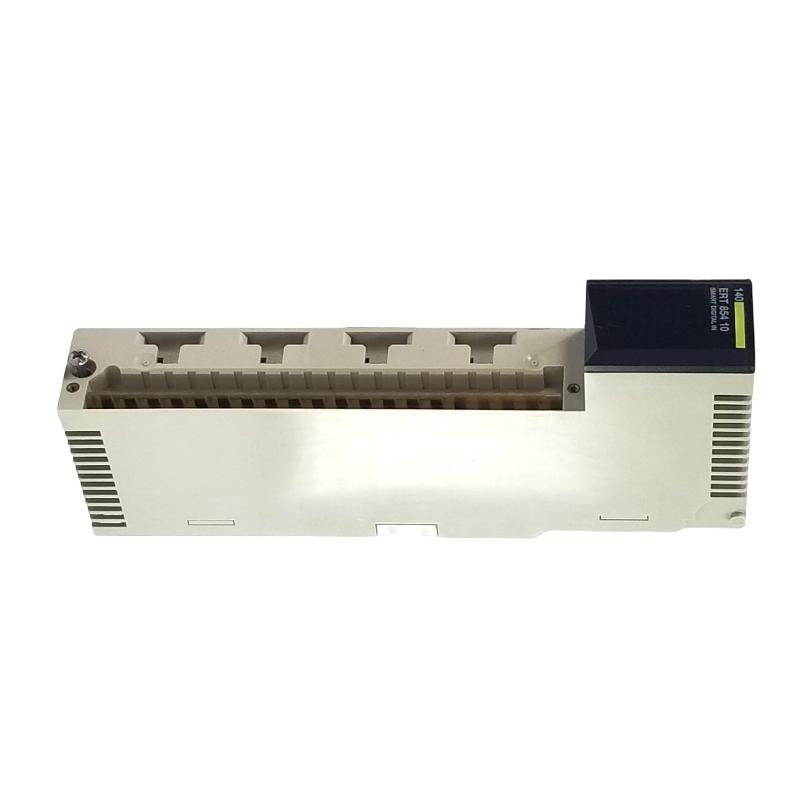

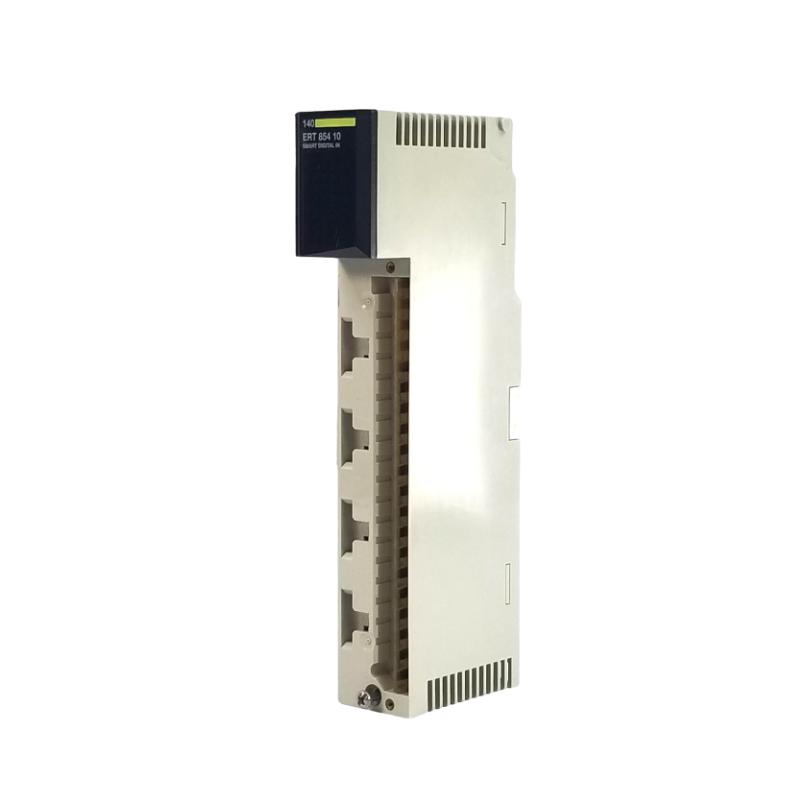

Schneider 140ERT85410IAT Multifunctional Input Module

Applications

• Monitoring multiple analog and digital signals simultaneously in industrial automation.

• Integration with Modicon Quantum or M580 PLC platforms for centralized control.

• Process control in energy, chemical, and water treatment industries requiring multifunction input.

• Advanced machine diagnostics and condition monitoring through combined analog/digital inputs.

• Data acquisition in distributed I/O systems for precise control and safety applications.

Key Advantages

• Multifunctional input capability combining analog and digital channels for versatile applications.

• High-speed signal acquisition and processing for real-time automation tasks.

• Strong electrical noise immunity ensures reliable operation in industrial environments.

• Seamless integration with Modicon Quantum and M580 PLC systems.

• Robust industrial construction guarantees long-term stability and continuous operation.

Technical FAQs

1. What types of signals can the module read?
It supports both analog signals (voltage/current) and discrete digital inputs.

2. How many input channels does it provide?
It offers a combination of digital and analog channels; exact configuration depends on model settings.

3. Is electrical isolation included?
Yes, group isolation is provided for both analog and digital channels.

4. Can it measure high-speed pulses?
Yes, it supports pulse inputs for timing and counter applications.

5. Is it compatible with Modicon Quantum PLCs?
Yes, it integrates fully with Quantum and M580 automation systems.

6. Are diagnostics available?
Yes, LED indicators show channel status and error conditions for troubleshooting.

7. Can it operate in high EMI environments?
Yes, the module is designed with noise filtering and shielding.

8. Does it support hot swapping?
Yes, when installed in a compatible backplane, it supports hot insertion/removal.

9. What type of wiring is required?
Standard industrial terminal block connections for analog and digital signals.

10. Is configuration required before use?
Yes, channel type and range settings are configured through PLC software.
