Brand:Schneider PLC Item No.:140XTS00200 Product Origin:France Product Dimensions:103.9 × 40.3 × 250 mm Product Weight:0.15 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

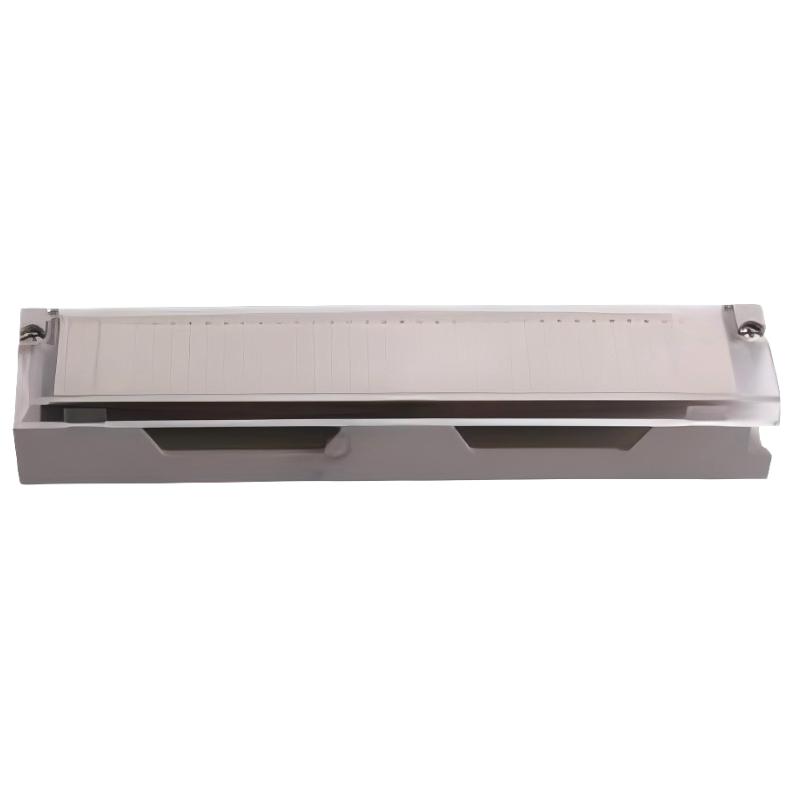

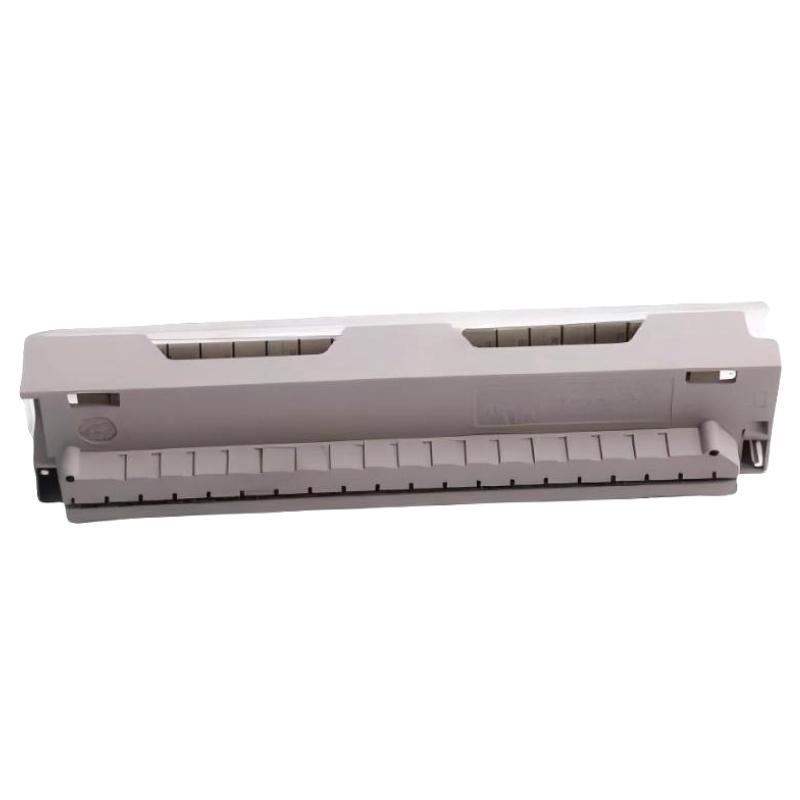

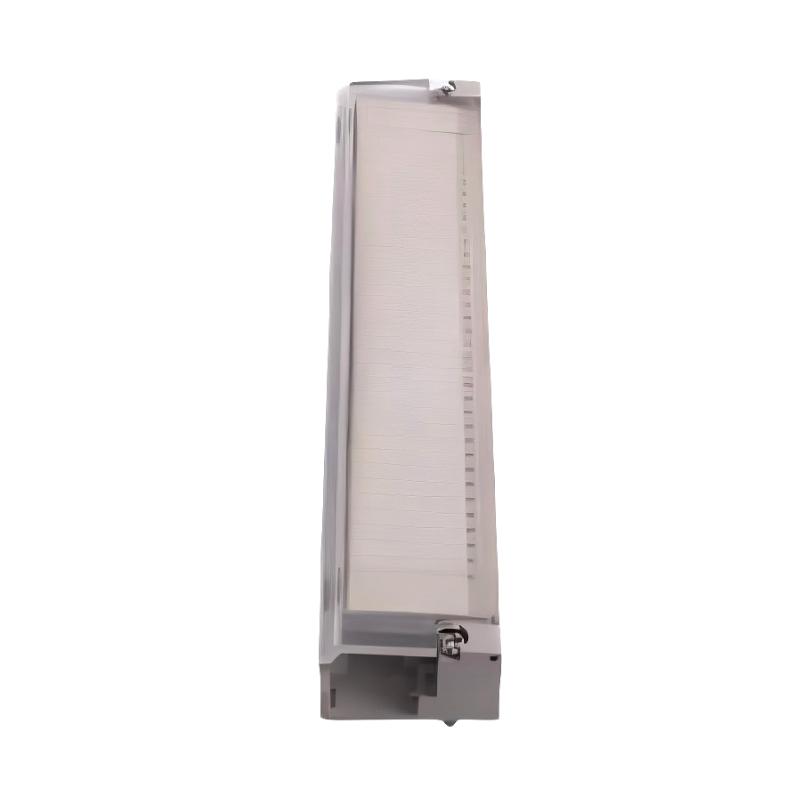

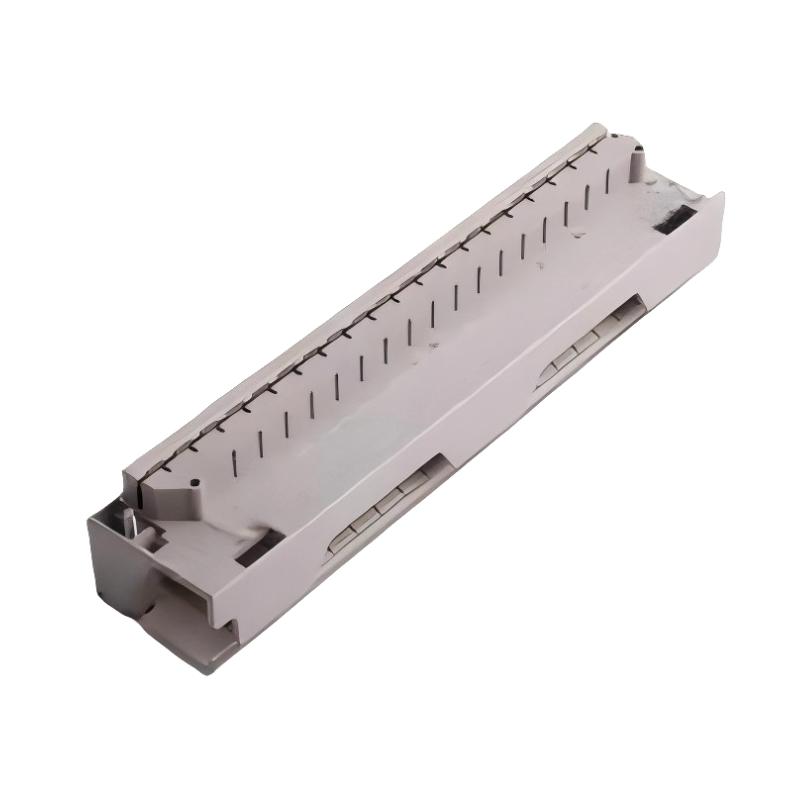

The Schneider 140XTS00200 Screw Terminals provide a reliable, industrial-grade connection solution for Modicon PLC systems. Engineered for secure, vibration-resistant wiring, these terminals simplify installation and maintenance in control cabinets and distributed I/O networks. Compact yet durable, they are ideal for both new projects and retrofits where stable connections are critical.
• 140XTS00100 – Standard Screw Terminals for Modicon racks
• 140DDI84100 – High-Density Digital Input Module
• BMXDDI3202 – Discrete Input Module for Modicon M340
Applications
• Connecting field devices and PLC modules in industrial automation systems.
• Secure wiring in distributed I/O networks for Modicon Quantum and M580 platforms.
• Integration into control cabinets requiring reliable terminal connections.
• Facilitating modular installation for both discrete and analog I/O modules.
• Replacement or upgrade of legacy terminal blocks in high-demand industrial environments.
Key Advantages
• Robust screw terminal design ensures secure and vibration-resistant connections.
• Compatible with standard Modicon backplanes for easy integration.
• Compact form factor optimizes cabinet space without compromising functionality.
• Supports multiple wiring configurations for flexible installation.
• Durable construction suitable for long-term industrial use.
Technical FAQs
1. What types of connections does this terminal support?
It supports screw-type connections for both solid and stranded wires.
2. Can it handle both digital and analog module connections?
Yes, it is compatible with discrete and analog I/O modules.
3. Is it compatible with Modicon Quantum backplanes?
Yes, fully compatible with Quantum and M580 backplanes.
4. What is the maximum wire size it accepts?
It supports wires up to the terminal’s rated cross-section (check datasheet for exact limits).
5. Can it be mounted in high-vibration environments?
Yes, the screw design provides secure, vibration-resistant connections.
6. Are diagnostic features included?
No active diagnostics; status monitoring is provided through the connected PLC modules.
7. Is hot swapping possible with these terminals?
Yes, terminals facilitate module replacement without rewiring when installed properly.
8. Can multiple wires be connected to a single terminal?
Yes, depending on wire size and terminal rating.
9. What is the recommended torque for screw terminals?
Refer to the Schneider Electric datasheet; typically within standard industrial terminal torque ranges.
10. Are these terminals compatible with distributed I/O racks?
Yes, designed to integrate seamlessly with distributed I/O backplanes.
